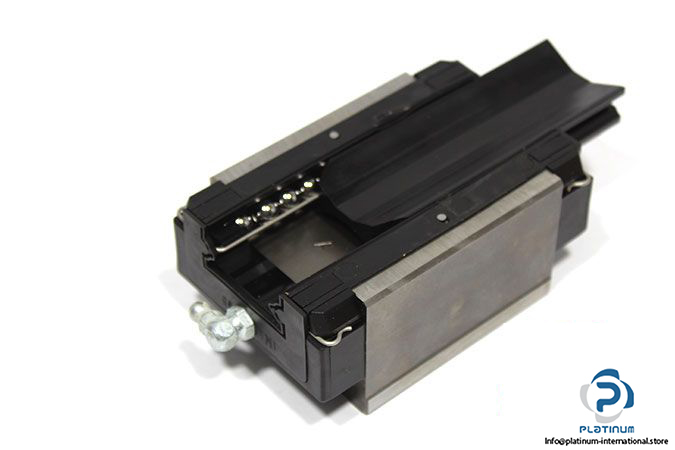

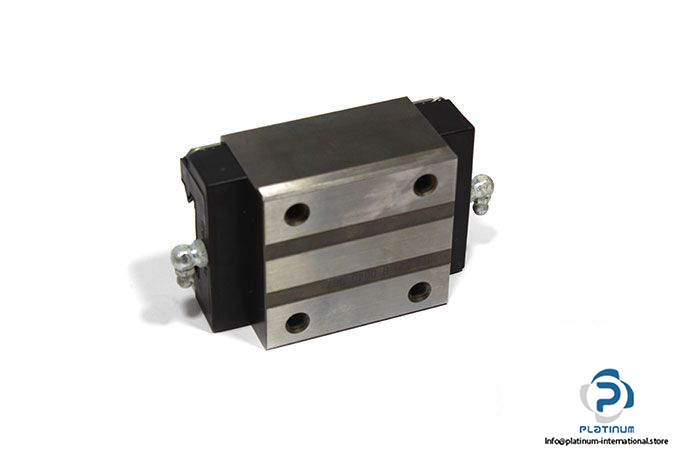

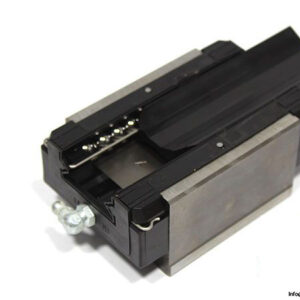

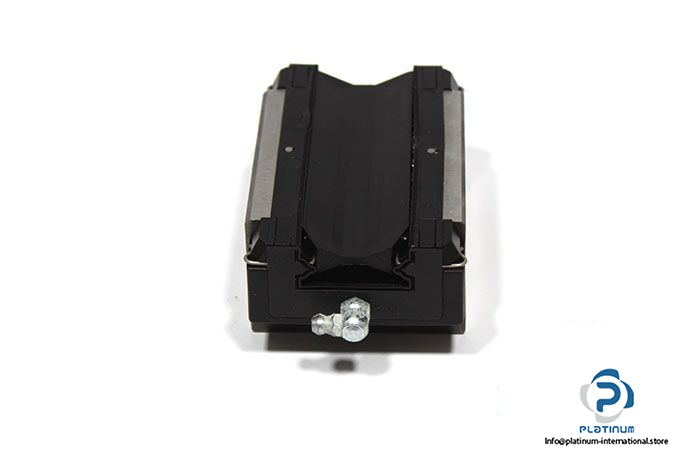

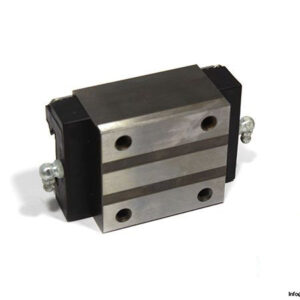

Schaeffler INA KWE35 H G3 V1 Linear Recirculating Ball Bearing Carriage
The Schaeffler INA KWE35 H G3 V1 is a precision-engineered two-row linear recirculating ball bearing carriage designed for high rigidity, smooth motion, and accurate linear guidance. Its compact structure and preloaded design ensure stability and excellent load-carrying capacity, making it ideal for automation, CNC machinery, and industrial linear systems.
Manufacturer: Schaeffler INA
Type: Two-Row Linear Recirculating Ball Bearing Carriage

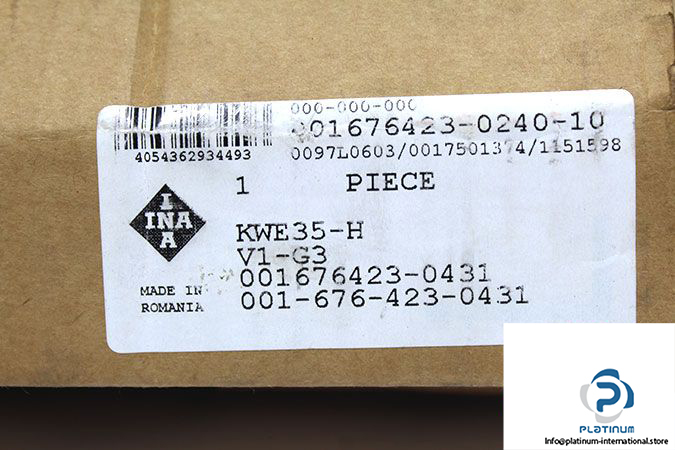

MNR: KWE35 H G3 V1

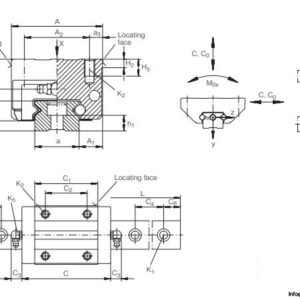

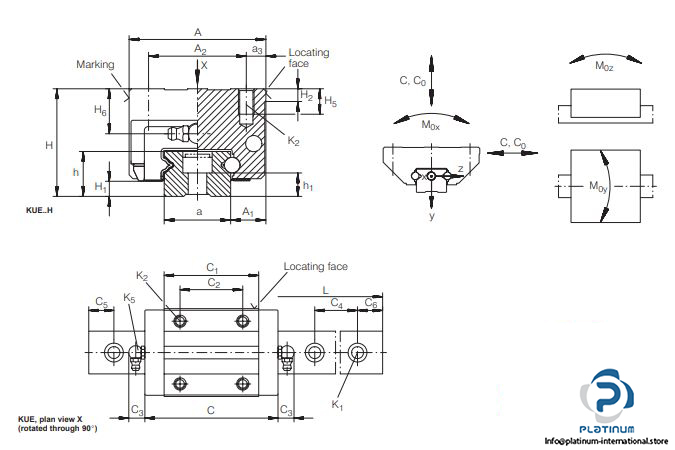

Technical Information
- Size: 35 mm
- Preload: V1
- Accuracy Class: G3
- Height System (H): 55 mm
- Width Carriage (A): 70 mm
- Overall Length Carriage (C): 106.4 mm
- A2: 50 mm
- C2: 50 mm
- Basic Dynamic Load Rating (C): 28 kN
- Basic Static Load Rating (C0): 37 kN
- Static Moment Rating About X-Axis (M0x): 658 Nm
- Static Moment Rating About Y-Axis (M0y): 450 Nm
- Static Moment Rating About Z-Axis (M0z): 450 Nm
