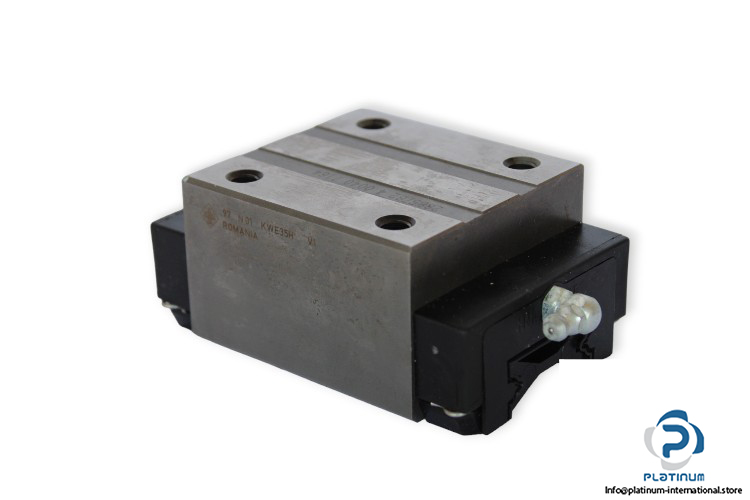

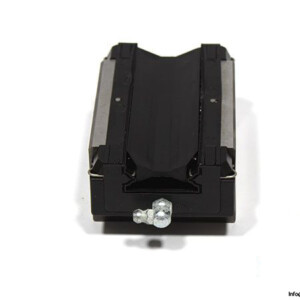

INA KWE35-H-V1-G3 Recirculating Ball Bearing Carriage
New
In stock1 unitReady to ship
119,99$
Linear Recirculating Ball Bearing Carriage
The INA KWE35 H G3 V1 two-row linear carriage delivers high precision and load capacity with compact dimensions, ensuring smooth linear guidance for automation and CNC systems.AutomationBallbearingCarriageCNCComponentEquipmentG3GuideHInaKWE35LinearMachineMotionPrecisionRecirculatingSchaefflerSystemTwo-RowV1
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

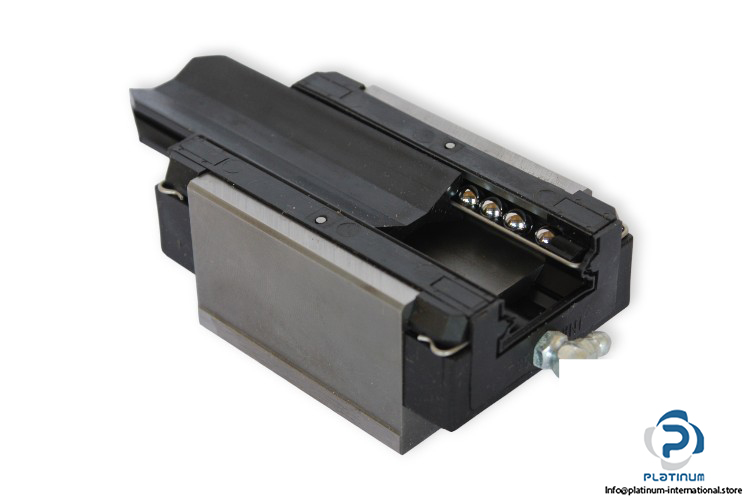

Schaeffler INA KWE35 H G3 V1 Linear Recirculating Ball Bearing Carriage
The Schaeffler INA KWE35 H G3 V1 is a precision-engineered two-row linear recirculating ball bearing carriage designed for high rigidity, smooth motion, and accurate linear guidance. Its compact structure and preloaded design ensure stability and excellent load-carrying capacity, making it ideal for automation, CNC machinery, and industrial linear systems.
Manufacturer: Schaeffler INA
Type: Two-Row Linear Recirculating Ball Bearing Carriage

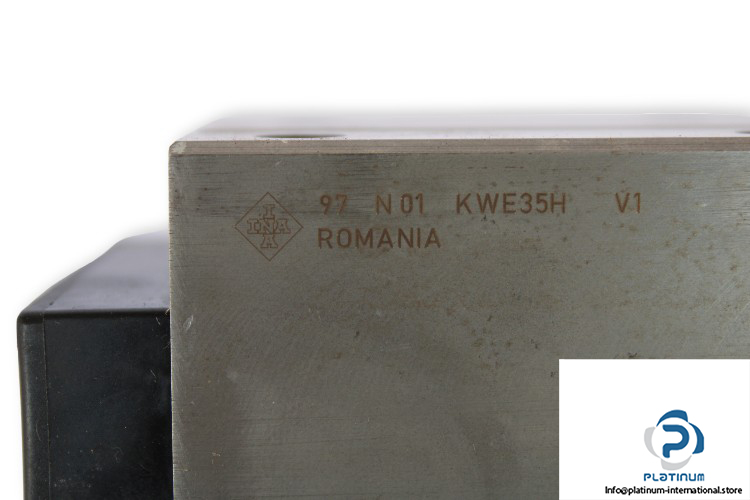

MNR: KWE35 H G3 V1

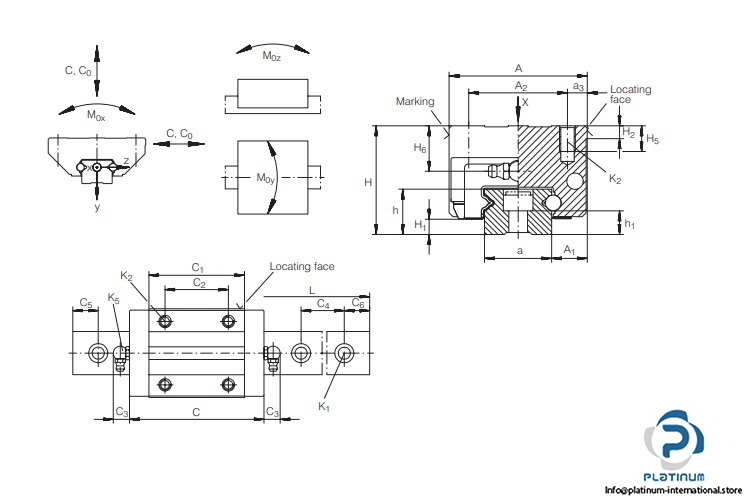

| Size | 35 mm |
| Preload | V1 |
| Accuracy Class | G3 |
| Height System (H) | 55 mm |
| Width Carriage (A) | 70 mm |
| Overall Length Carriage (C) | 106.4 mm |
| A2 | 50 mm |
| C2 | 50 mm |
| Basic Dynamic Load Rating (C) | 28 kN |
| Basic Static Load Rating (C0) | 37 kN |
| Static Moment Rating About X-Axis (M0x) | 658 Nm |
| Static Moment Rating About Y-Axis (M0y) | 450 Nm |
| Static Moment Rating About Z-Axis (M0z) | 450 Nm |
