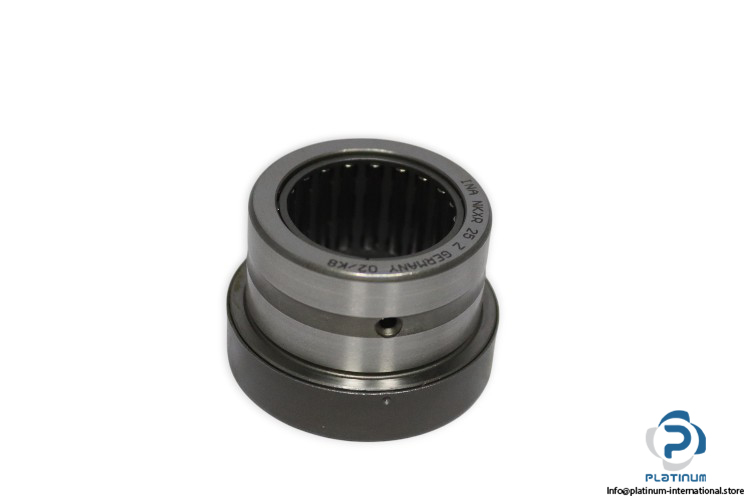

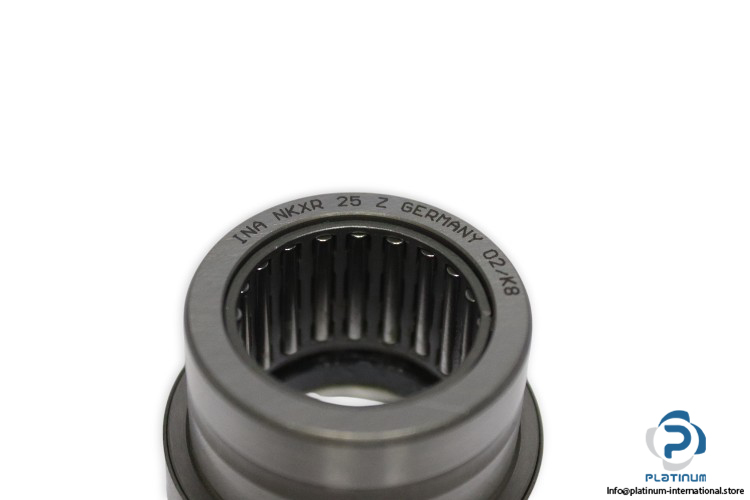

INA NKXR25Z Needle Roller/Axial Cylindrical Roller Bearing
Needle Roller/Axial Cylindrical Roller Bearing
The Schaeffler INA NKXR25 Z bearing features a 25 mm bore diameter, high radial and axial load ratings, and excellent sealing, making it ideal for industrial systems requiring stability and durability.Schaeffler INA NKXR25 Z Needle Roller/Axial Cylindrical Roller Bearing
The Schaeffler INA NKXR25 Z Needle Roller/Axial Cylindrical Roller Bearing offers exceptional durability and performance in high-demand industrial applications. This high-quality bearing combines the benefits of needle roller and axial cylindrical roller designs, providing superior load capacity and high speed stability.
Manufacturer: Schaeffler INA
Type: NEEDLE ROLLER/AXIAL CYLINDRICAL ROLLER BEARING
Model: NKXR25 Z
Basic Load Ratings, Radial:
Basic Load Ratings, Axial:
The NKXR25 Z bearing is designed for high radial and axial loads, providing reliable performance in challenging conditions, with robust sealing to ensure long-lasting efficiency.
| Bore Diameter (Fw) | 25 mm |
| Outer Diameter (D) | 37 mm |
| Height (C) | 30 mm |
| Dynamic (Cr) | 21300 N |
| Static (C0r) | 30500 N |
| Fatigue Load Limit (Radial) | 5400 N |
| Dynamic (Ca) | 33500 N |
| Static (C0a) | 76000 N |
| Fatigue Load Limit (Axial) | 7200 N |
| Limiting Speed | 8500 rpm |
| Reference Speed | 3400 rpm |
| Sealing | Z, Bearing with end cap |
