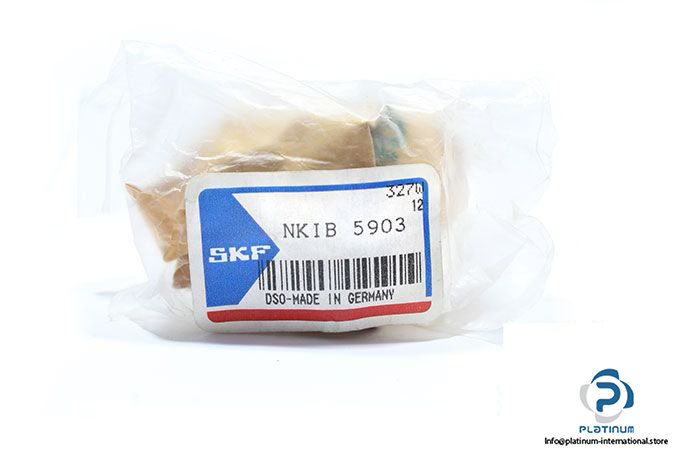

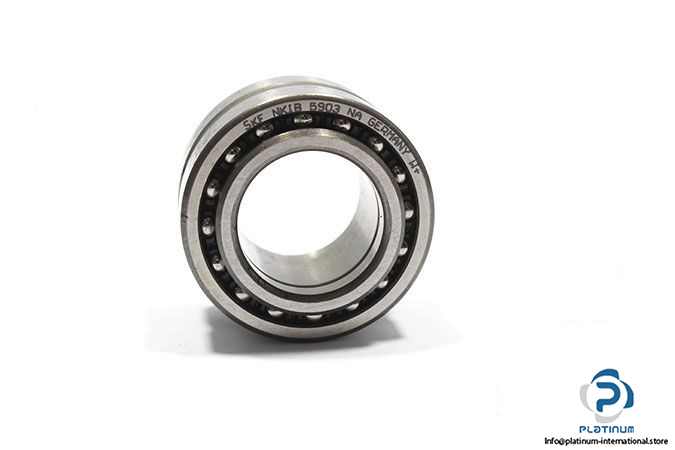

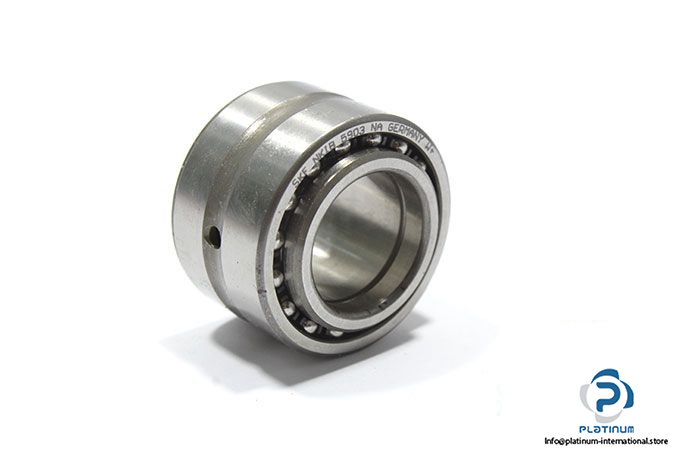

SKF Nkib 5903 Needle Roller / Angular Contact Ball ‎Bearing

Manufacturer: SKF

Type: Needle roller / angular contact ball ‎bearing

Model: NKIB 5903

Part No: 5903

Bore Diameter d: 17 mm

Outer diameter D: 30 mm

Width B: 20 mm

Width with outer ring C: 18 mm

Basic load ratings, radial direction:

Dynamic C: 11.4 kN

Static C₀: 16.3 kN

Fatigue load rating: 1.96 kN

Basic load ratings, axial direction:

Dynamic C: 2.24 kN

Static C₀: 2.74 kN

Fatigue load rating: 0.116 kN

Limiting speed: 20000 rpm

Reference Speed: 18000 rpm

Weight: 0.06 kg
