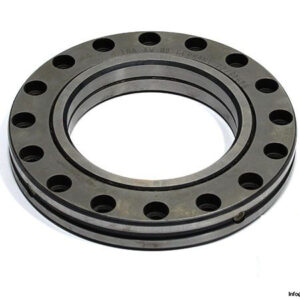

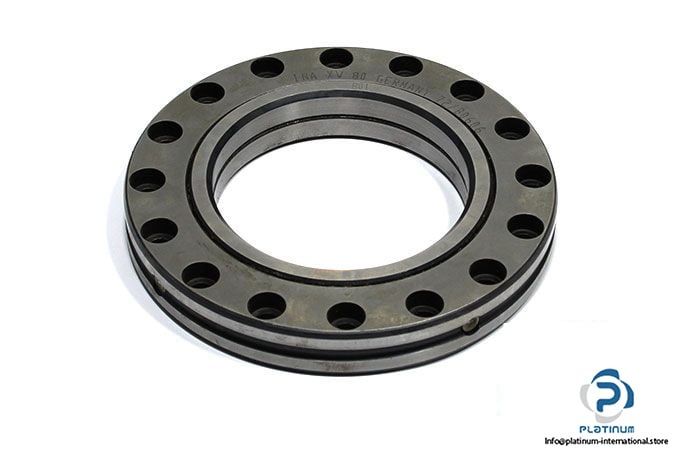

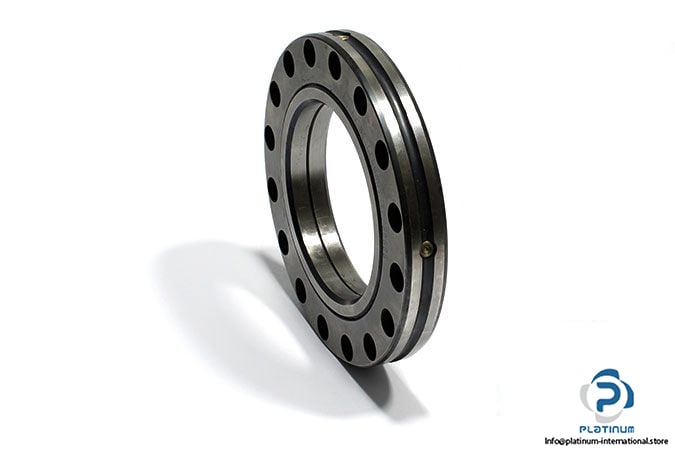

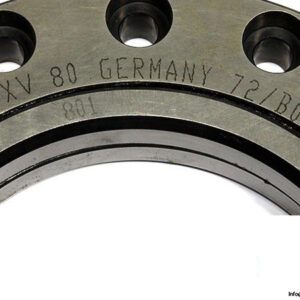

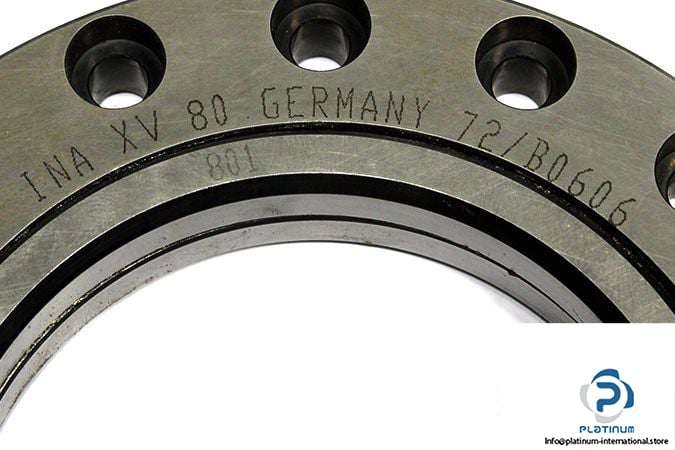

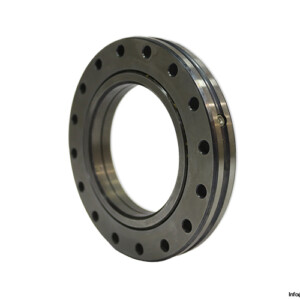

INA XV 80 Crossed Roller Bearing
Used
In stock2 unitsReady to ship
Crossed Roller Bearing
INA XV80 crossed roller bearing without gear teeth, designed for high radial and axial load capacity, precision rotation, and compact industrial applications.
New
In stock
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
INA XV80 Crossed Roller Bearing
The INA XV80 is a high-precision crossed roller bearing designed for applications requiring high load capacity, rigidity, and accurate rotational movement. Its compact design without gear teeth allows efficient handling of combined radial and axial loads in demanding industrial environments.
Manufacturer: INA / Schaeffler
Type: Crossed Roller Bearings Without Gear Teeth
Model: XV80

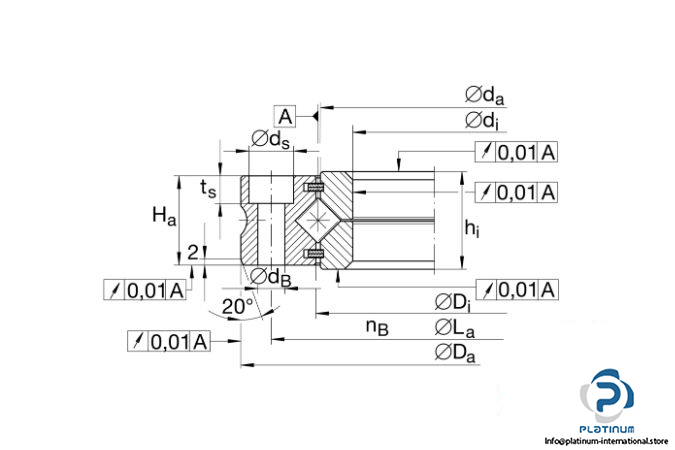

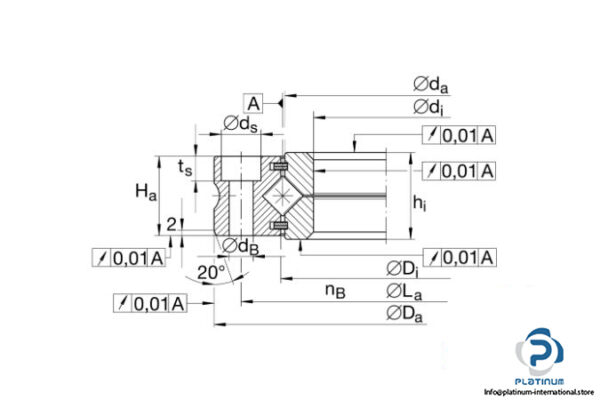

| Bore Diameter (d) | 80 mm |
| Outside Diameter (Da) | 135 mm |
| Outer Ring Width (Ha) | 18 mm |
| Inner Ring Height (hi) | 19 mm |
| Quantity Of Fixed Holes (nB) | 16 |
| Dynamic Radial Load Rating (Cr) | 23,800 N |
| Static Radial Load Rating (C0r) | 49,500 N |
| Dynamic Axial Load Rating (Ca) | 33,500 N |
| Static Axial Load Rating (C0a) | 101,000 N |
| Limiting Speed With Normal Clearance | 804 rpm |
| Limiting Speed With Preload | 402 rpm |
| Operating Temperature Range | -30 to +80 °C |
