Manufacturer: INA
Type: RECIRCULATING BALL BEARING CARRIAGE
Model: KWME-15B-VA  (KUME 15B VA)

Size: 15 mm
UNIT: KUME 15B VA
Carriage Configuration: A, Narrow Body— Standard Body
Design Series: V

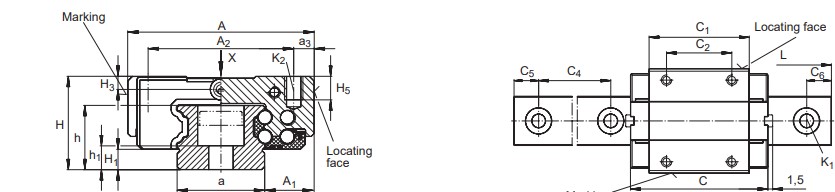

Dimensions
Total Height H: 16 mm
Width carriage A: 32 mm
Carriage height H-H1: 12.5 mm
Overall length carriage C: 42 mm
a: 15 mm
K2: 1.5 mm
Basic Load Ratings:
Dynamic C: 3,750 N
Static C₀: 6,800 N
Static Moment Rating About:
X axis M_0x: 65 Nm
Y axis M_0Y: 33 Nm
Z axis M_0Z: 33 Nm
