Manufacturer: Schaeffler INA
Type: Four-Row Linear Recirculating Ball Bearing
Model: KWVE35-B-G3-V1
Size: 35

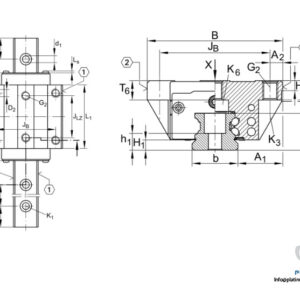

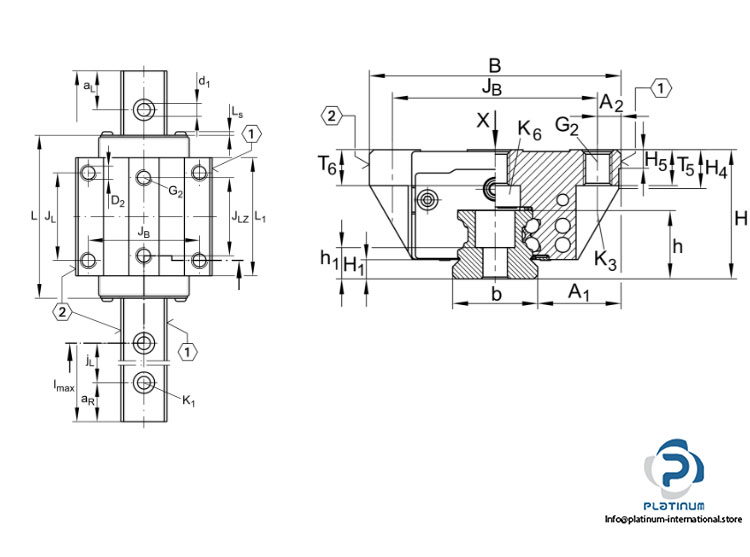

Dimensions
Length ( L ): 112 mm
Width ( B ): 100 mm
Height ( H ): 48 mm
Block Height: 41.3 mm
JB: 82 mm
JL: 62 mm
Basic Dynamic load rating: 38000 N
Basic Static load rating: 72000 N
Block Type: Flange Type
Mounting Hole: 6 tapped holes
Guideway Model: TKVD35 (-U)
Accuracy Class: G3
Carriage Preload: V1
