Manufacturer: Schaeffler INA

Type: Four-row Linear recirculating Ball Bearing

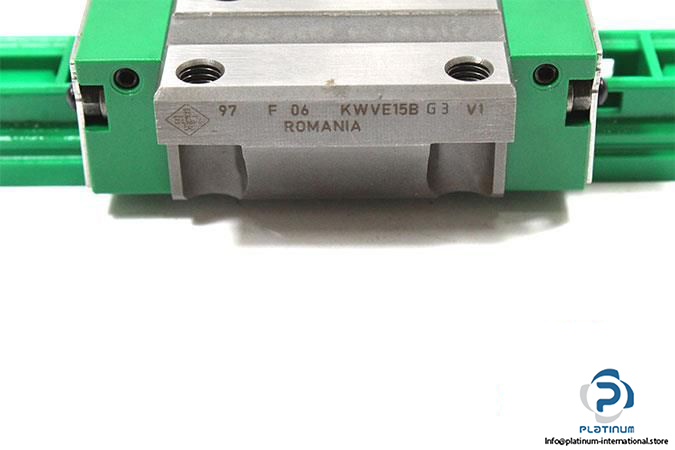

Model: KWVE15 G3 V1

Size: 15 mm

Carriage Design: Standard Carriage

Basic Load Ratings:

Dynamic C: 7200 N

Static C₀: 14500 N

Static Moment Rating About:

X axis M_0x: 150 Nm

Y axis M_0Y: 100 Nm

Z axis M_0Z: 100 Nm

Preload: V1

Accuracy Class: G3

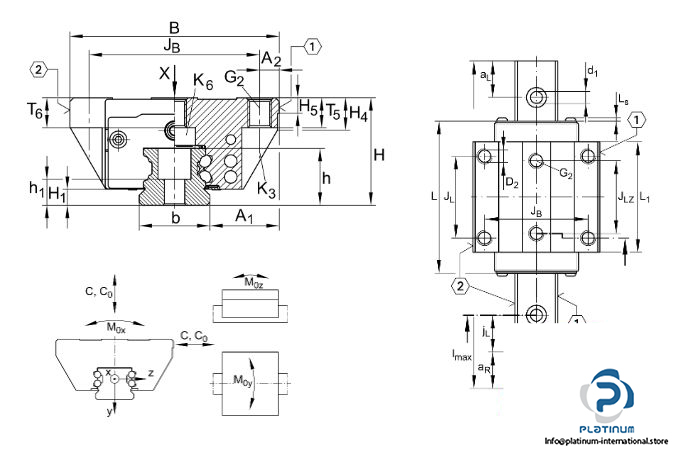

Dimensions

Height System H: 24 mm

Width carriage B: 47 mm

Overall length carriage L: 61.2 mm

J_L: 30 mm

J_B: 38 mm
