INA KWSE25-HL V1-G3 Linear Recirculating Ball Bearing

Name: INA KWSE25-HL V1-G3 LINEAR RECIRCULATING BALL BEARING
SKU: 1057165
Availability: LimitedAvailability

ina-KWSE25-HL-V1-G3-linear-recirculating-ball-bearing-(new)

ina-KWSE25-HL-V1-G3-linear-recirculating-ball-bearing-(new)-1

ina-KWSE25-HL-V1-G3-linear-recirculating-ball-bearing-(new)-2

ina-KWSE25-HL-V1-G3-linear-recirculating-ball-bearing-(new)-3

New

In stock1 unitReady to ship

Manufacturer:

INA

Type:

LINEAR RECIRCULATING BALL BEARING

Model:

KWSE25 HL V1 G3

Manufacturer

INA?

SKU

1057165

Category

Linear Motion

Condition

New

25 bearing bearings Ina Linear mm Motion Recirculating Schaeffler

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: INA
Type: LINEAR RECIRCULATING BALL BEARING
Model: KWSE25 HL V1 G3

Size: 25 mm

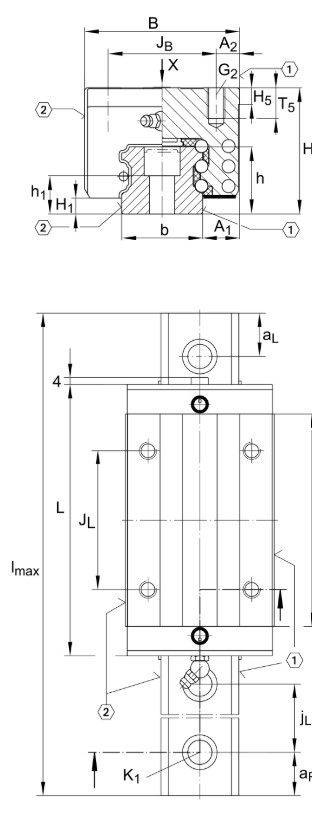

Dimensions
Total Height H: 40 mm
Width carriage B: 48 mm
Overall length carriage L: 104.3 mm
Block Height (H-H1): 34.8 mm
J_B: 50 mm
J_L: 35 mm
Carriage design: HL-High, long carriage
Accuracy Class: G3
Carriage Preload: V1
Basic Load Ratings (Compressive Load):
Dynamic C: 35300 N
Static C₀: 93700 N
Basic Load Ratings (Tensile Load):
Dynamic C: 33000 N
Static C₀: 62000 N
Basic Load Ratings (Lateral Load):
Dynamic C: 35000 N
Static C₀: 65000 N
