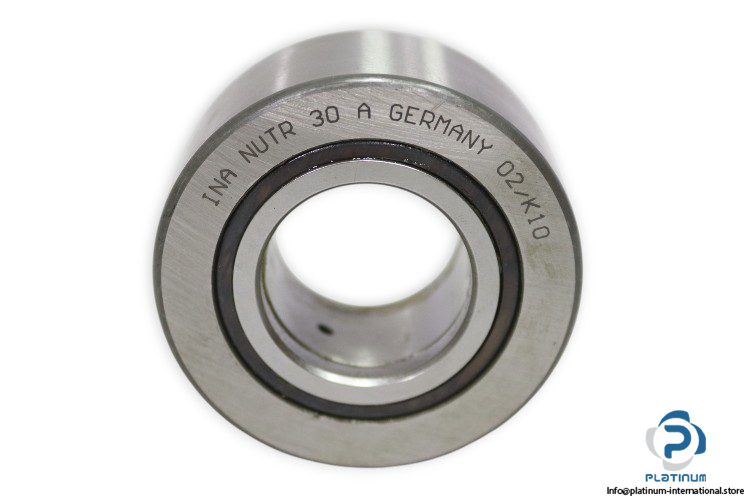

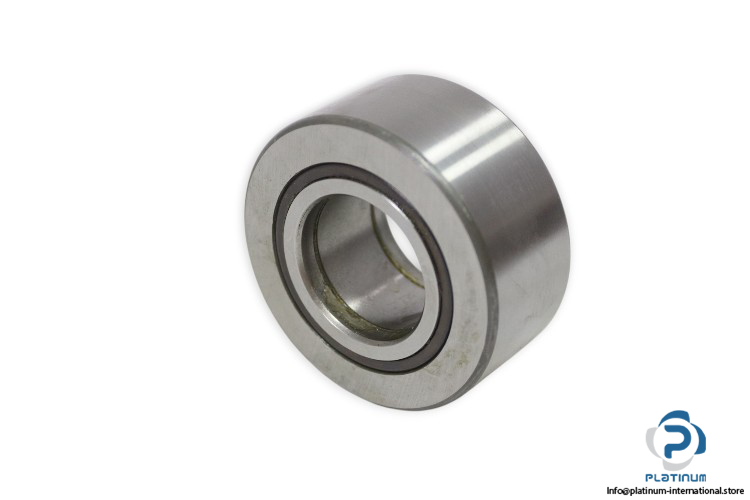

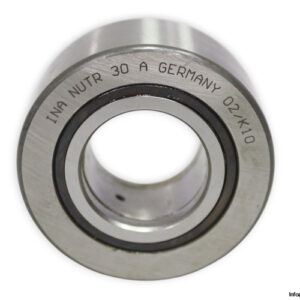

INA NUTR30A Yoke Type Track Roller

The INA NUTR30A is a high-performance yoke type track roller designed to handle heavy radial loads with smooth rotation and long service life. Ideal for use in cam drives, conveyor systems, and automation equipment.

Manufacturer: INA
Type: Yoke Type Track Roller
Model: NUTR30A
Code: 02/K10

Technical Information

• Bore Diameter (d): 30 mm
• Outer Diameter (D): 62 mm
• Bearing Width (B): 29 mm
• Basic Dynamic Load Rating, Radial: 41,000 N
• Basic Static Load Rating, Radial: 54,000 N
• Fatigue Load Limit, Radial: 7,400 N
• Speed on Permanent Grease Lubrication: 2,600 1/min
• Permissible Static Load, Radial: 46,000 N
• Permissible Dynamic Load Outer Ring, Radial: 23,300 N
