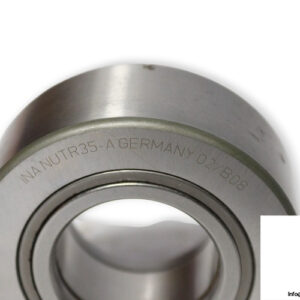

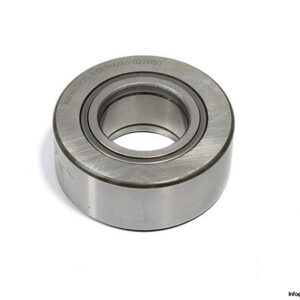

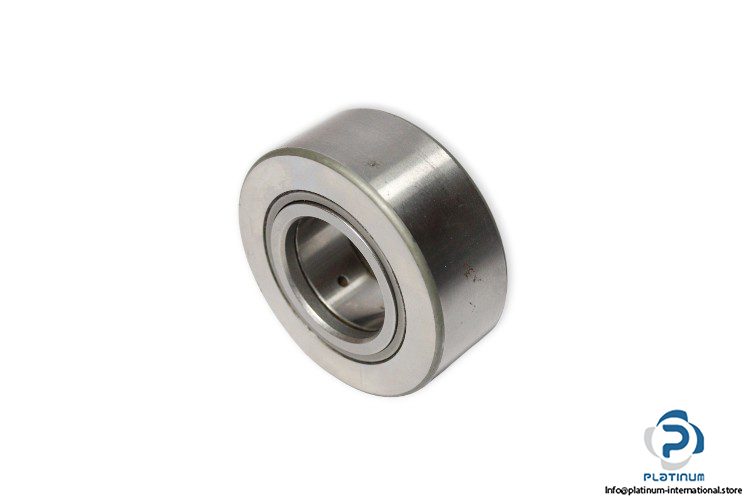

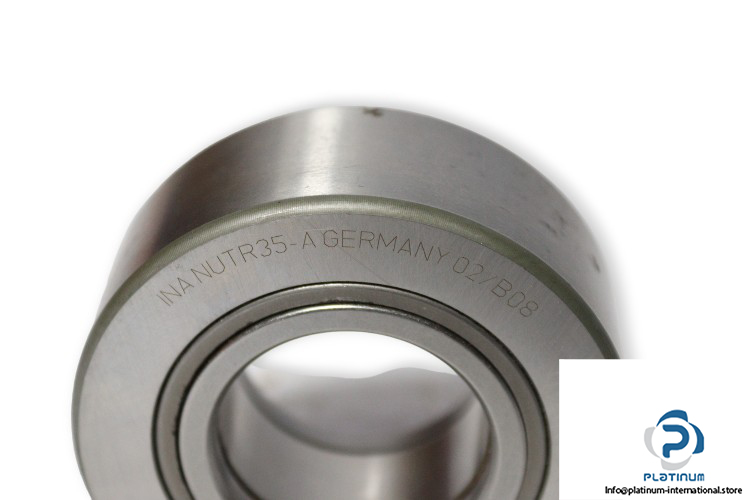

INA NUTR35-A Yoke Type Track Roller

Manufacturer: INA
Type: Yoke type track rollers NUTR
Model: NUTR 35-A

Dimensions:
Bore diameter d: 35 mm
Outside diameter D: 72 mm
Width of the bearing B: 29 mm
Width outer ring C: 28 mm
Minimum chamfer dimension: 1.1 mm
Basic load ratings, radial:
Dynamic C_{r w}: 45500 N
Static C_{0r w}: 65000 N
Fatigue load limit, radial: 8900 N
Speed on permanent grease lubrication: 2100 rpm
Permissible static load, radial: 62000 N
Permissible dynamic load outer ring, radial: 31500 N
