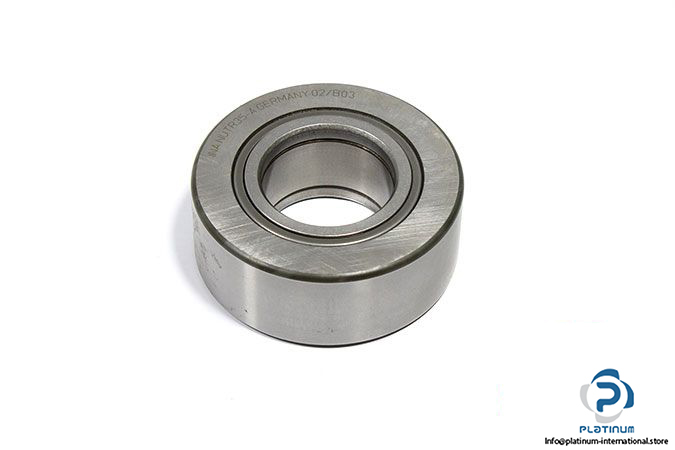

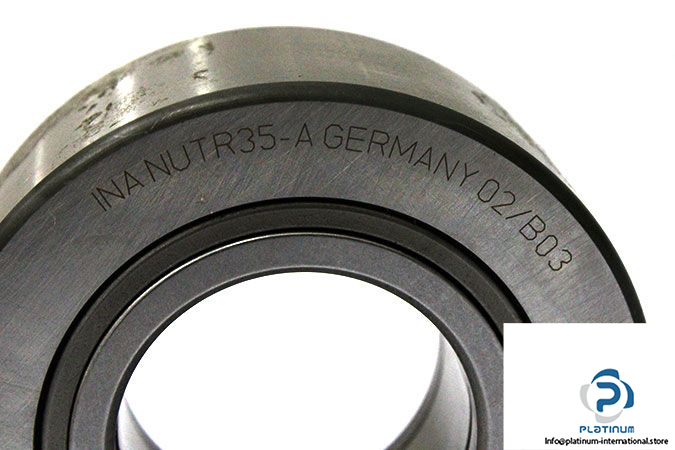

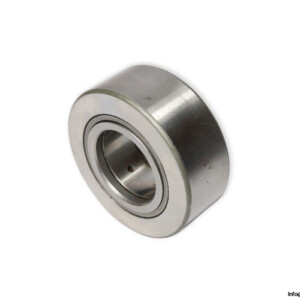

INA NUTR35-A Yoke Type Track Roller

Manufacturer: Schaeffler INA

Type: Yoke Type Track Roller Full Complement Cylindrical Roller Set

Model: NUTR 35

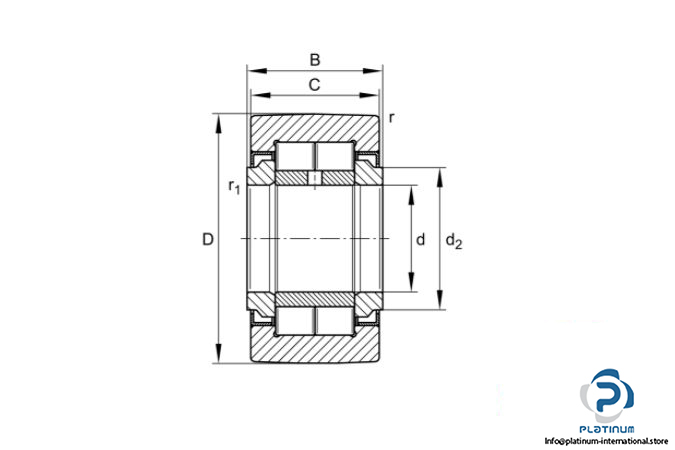

Dimensions:

Bore Diameter d: 35 mm

Outer diameter D: 72 mm

Width of the bearing B: 29 mm

Width outer ring C: 28 mm

Minimum chamfer dimension: 1.1 mm

Basic load ratings, radial:

Dynamic C_{r w}: 46000 N

Static C_{0r w}: 65000 N

Fatigue load limit C_{ur w}: 8900 N

Permissible dynamic load outer ring, radial F_r: 31500 N

Permissible static load, radial F_0r: 62000 N

Speed on permanent grease lubrication: 2100 rpm

Weight: 0.65 Kg
