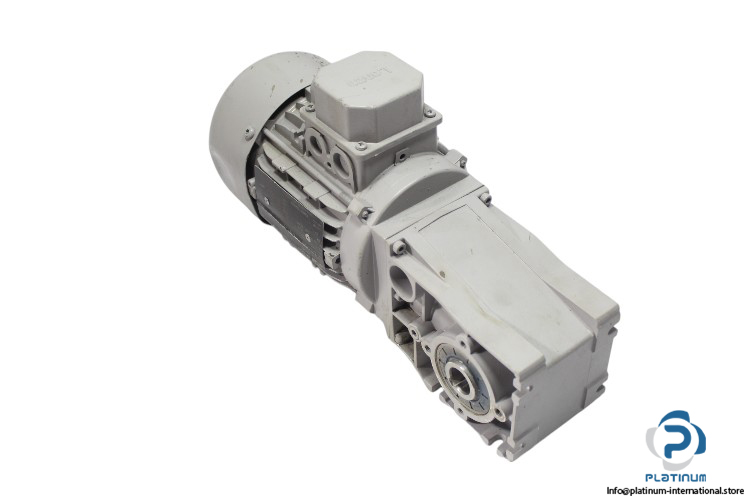

Lenze G50AB045MHBR2C Gear Motor
The Lenze G50AB045MHBR2C Gear Motor is a high-efficiency motor designed for industrial applications requiring precision, durability, and power. With an optimized gear ratio and reliable performance, it provides smooth torque transmission, making it ideal for continuous-duty operations.
- Manufacturer: LENZE
- Type: Gear Motor
- Model: G50AB045MHBR2C

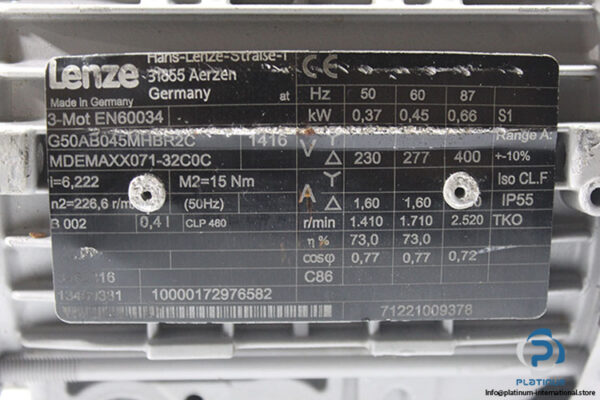

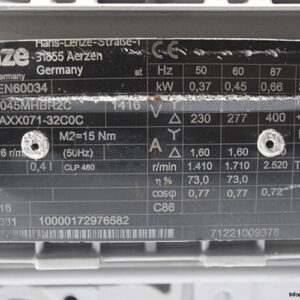

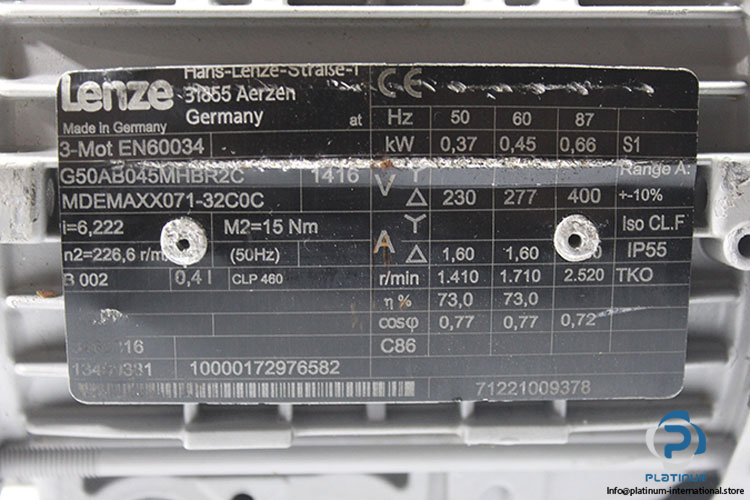

Technical Specifications
- Total Ratio [i]: 6.222
- Rated Speed [r/min]: 226.6
- Rated Torque [Nm]: 15
- Motor Model: MDEMAXX071-32C0C
- Frequency [Hz]: 50 / 60 / 87
- Rated Power [kW]: 0.37 / 0.45 / 0.66
- Motor Voltage [V] / Conn. Type: 230 / 277 / 400 Delta
- Motor Current [A]: 1.6 / 1.6
- Rated Speed [r/min]: 1410 / 1710 / 2520
- Power Factor: 0.77 / 0.77 / 0.72
- Duty: S1
- Insulation Class: F
- Protection Class [IP]: 55
