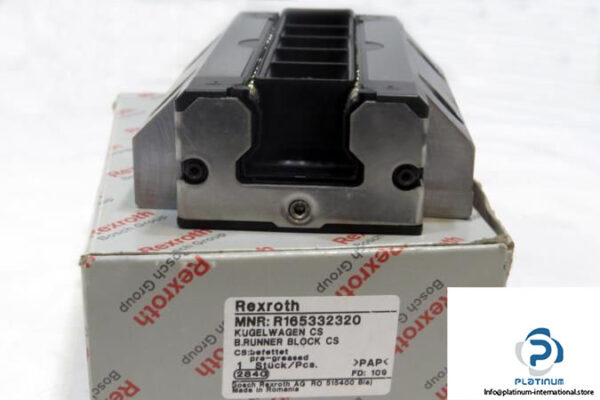

Manufacturer: REXROTH
Type: BALL RAIL RUNNER BLOCK
MNR: R1653 323 20

Size: 35 mm
Format: FLS, flanged, long, standard height
Material (profiled rail systems): Carbon steel
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 66700 N
Static Load Capacity C₀ : 116000 N
Dynamic Torsional Moment Load Capacity M_t:  1440 Nm
Static torsional moment load capacity Mt0: 2500 Nm
Dynamic longitudinal moment load capacity ML: 1290 Nm
Static longitudinal moment load capacity ML0: 2240 Nm
Accuracy Class: H – Highly accurate
Preload Class: C2 – Average preload
Dimensions
Width (A): 100 mm
Length (B): 139 mm
Height of system (H): 48 mm
Height of block (H₁): 40.40 mm
E1: 82 mm
E2: 62 mm
Admissible Operating Temperature: -10 °C … +80 °C
