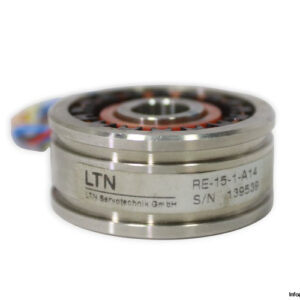

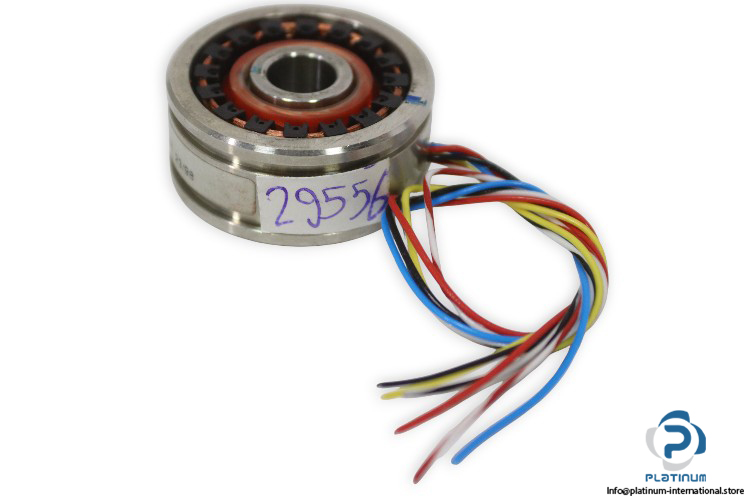

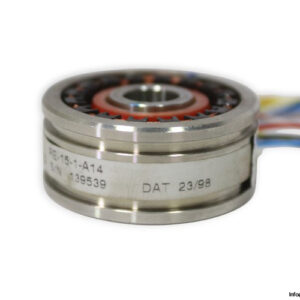

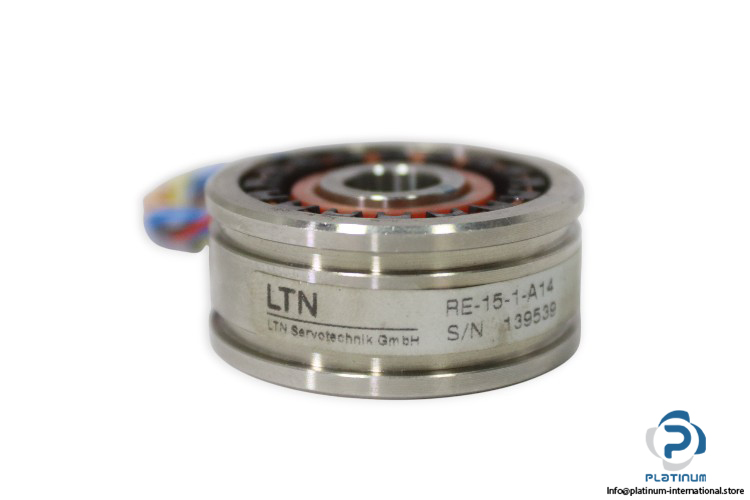

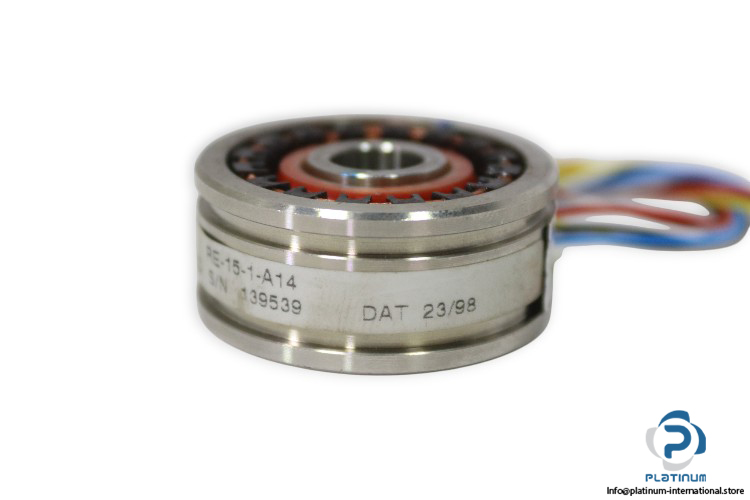

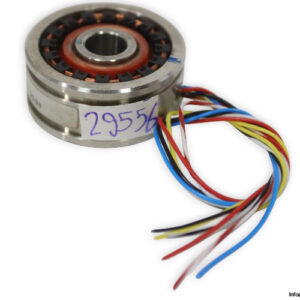

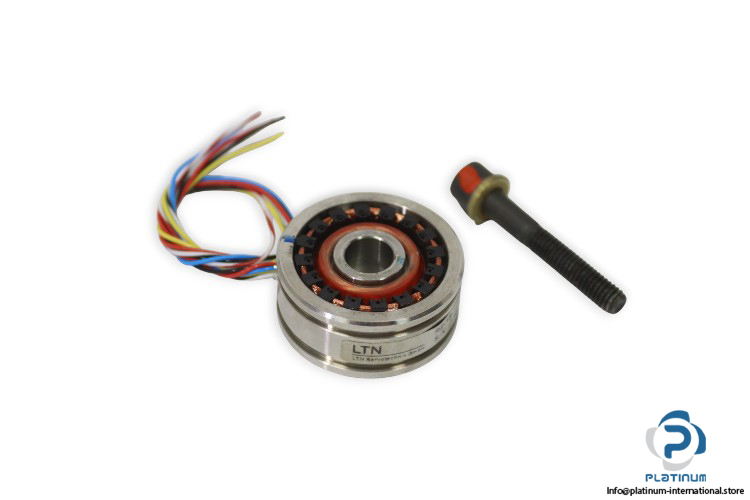

LTN RE-15-1-A14 Resolver Encoder

The LTN RE151A14 Resolver Encoder is a compact and highly reliable feedback device designed for precise position and speed measurement in demanding industrial environments. With its durable construction, high permissible speed, and wide temperature range, it delivers stable output and long operational life for automation and motion control systems.

Manufacturer: LTN
Type: Resolver Encoder
Model: RE-15-1-A14

Technical Information

• Series: RE15
• Hollow Shaft Diameter Max.: 12 mm
• Voltage Supply: 42 / 18 V DC
• Transformation Ratio: 0.5 %
• Permissible Speed: 20,000 rpm
• Material: Metal
• Temperature: -55 / 155 °C
• Outer Diameter: 36.8 mm
• Length: 16 mm
