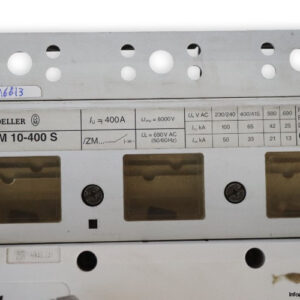

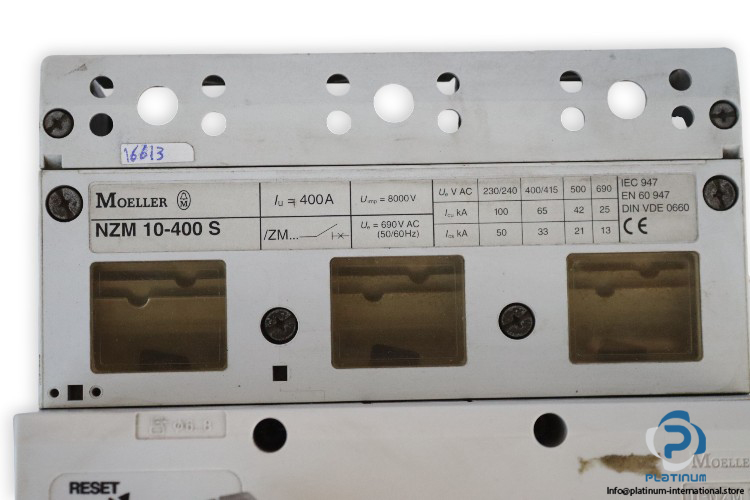

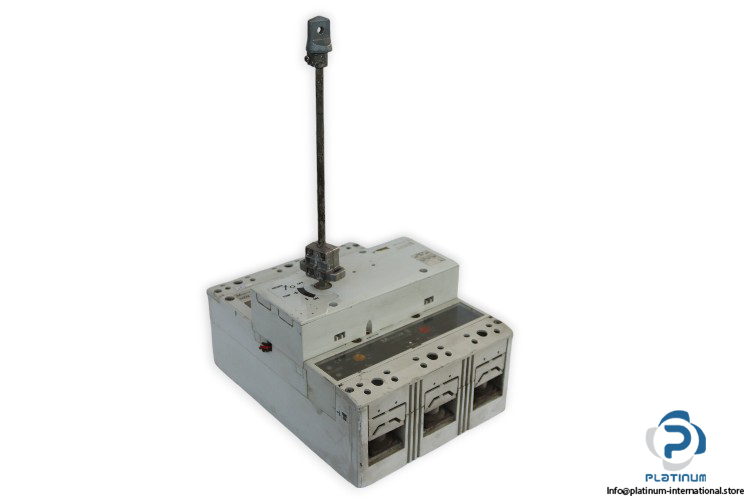

Manufacturer: Moeller
Type: CIRCUIT BREAKER
Model: NZM 10-400 S

Product Tradename: NZM
Pollution degree: 3
Rated operational voltage: 690 V AC
Rated impulse withstand voltage (Uimp) at auxiliary contacts: 8000 V
Number of poles: Three-pole
Maximum Current Iu: 400 A
Rated short-circuit breaking capacity Ics:
50 kA@230 V
33 kA@400 V
13 kA@690 V
Maximum short-circuit current breaking capacity (Icu):
100 kA@230 V
65 kA@400 V
25 kA@690 V
Standard: IEC947 /EN 60947 / DIN VDE 0660

Accessories:

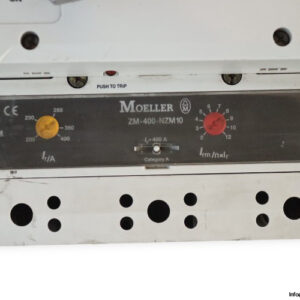

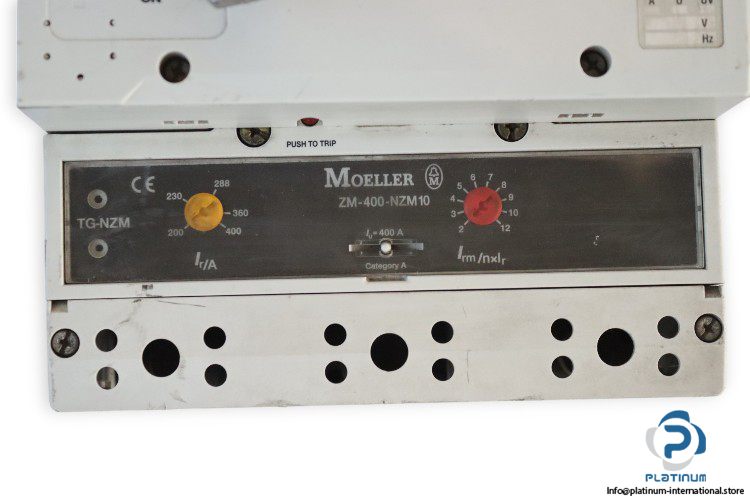

MOELLER ZM-400-NZM TRIP UNIT

Manufacturer: Moeller
Type: TRIP UNIT
Model: ZM-400-NZM

Short-circuit releases (I_rm): nxIr (2-12)
Overload current setting (Ir): min. 200 A
Overload current setting (Ir): max 400 A
Iu: 400 A

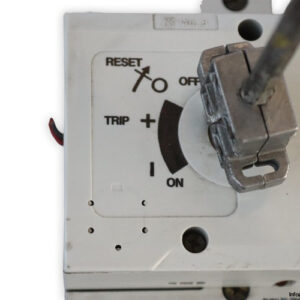

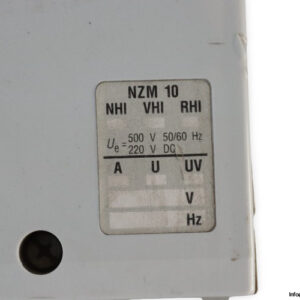

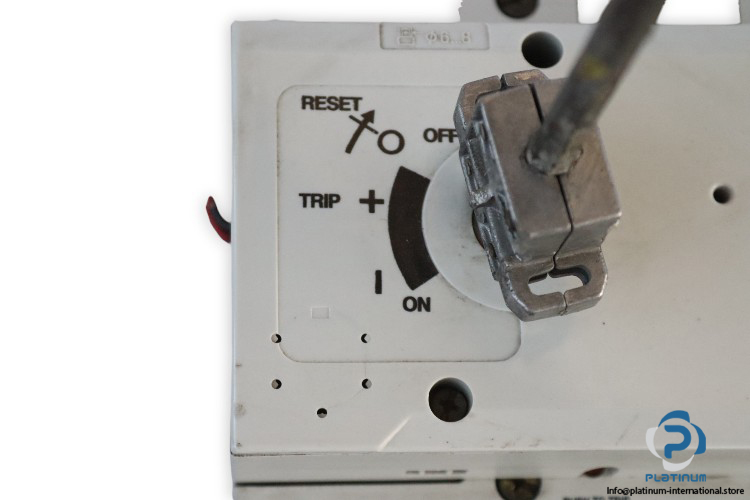

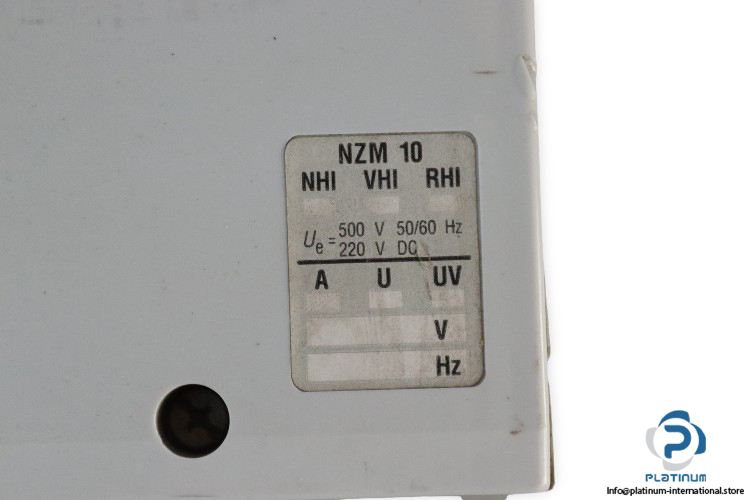

MOELLER NZM 10 ROTARY DRIVE

Manufacturer: Moeller
Type: ROTARY DRIVE
Model: NZM 10

Rated operational voltage: 500 V @ 50/60 HZ – 220 V DC
