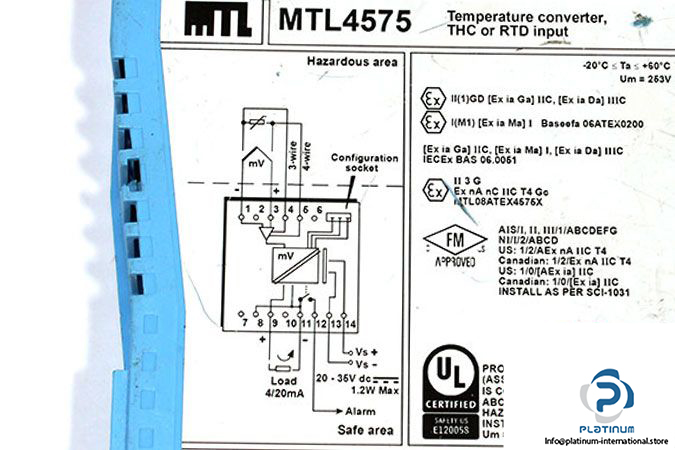

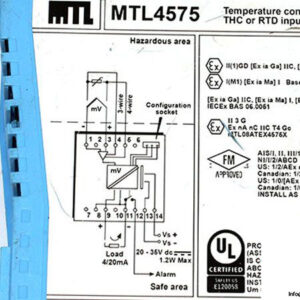

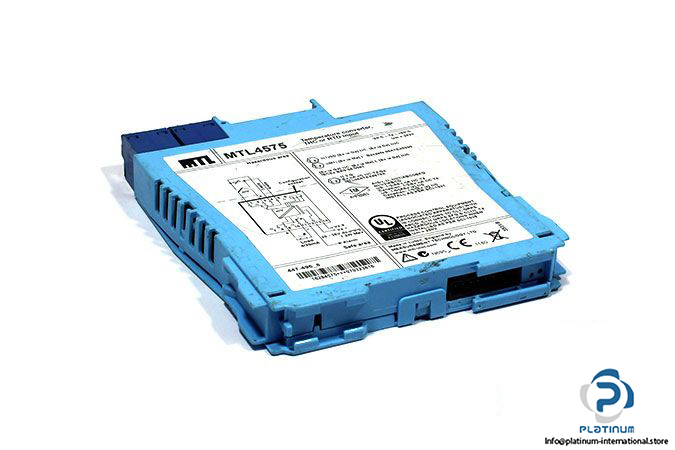

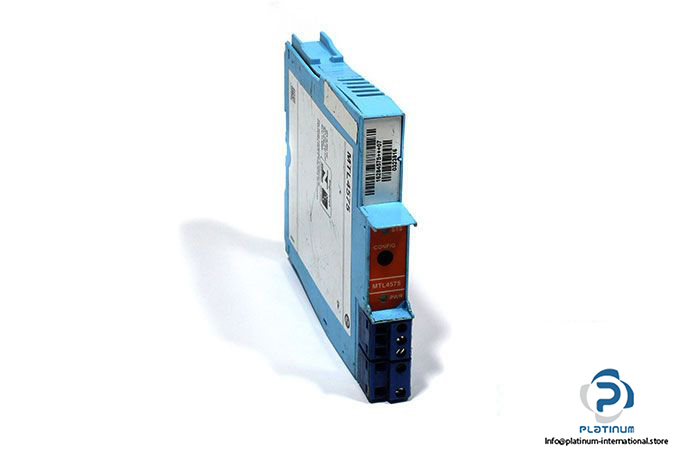

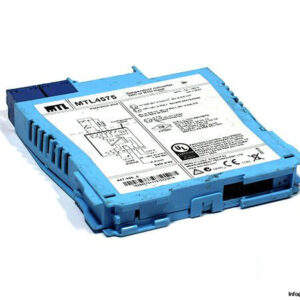

MTL4575 TEMPERATURE CONVERTER
The MTL4575 Temperature Converter is a reliable single-channel signal converter designed for a wide range of thermocouples, RTDs, and millivolt inputs. With a robust design and precise output, it is suitable for demanding industrial environments where accurate temperature monitoring and signal transmission are essential.
Manufacturer: MTL
Type: Temperature Converter
Model: MTL4575
No. of Channels: 1
Technical Information
- Signal Source: THC types J, K, T, E, R, S, B or N (BS 60584), XK
- Input: mV input
- RTDs: 2/3/4-wire platinum (BS 60751 Pt100, Pt500, Pt1000)
- Other Sensors: Cu-50 & Cu-53, Ni100/500/1000 (DIN 4376)
- Voltage: 20 / 35 V DC
- Output Range: 4 / 20 mA
- Response Time: 500 ms
- Alarm Output: Relay ON in alarm, 250 mA
- Temperature Range: -20 / 60 °C
