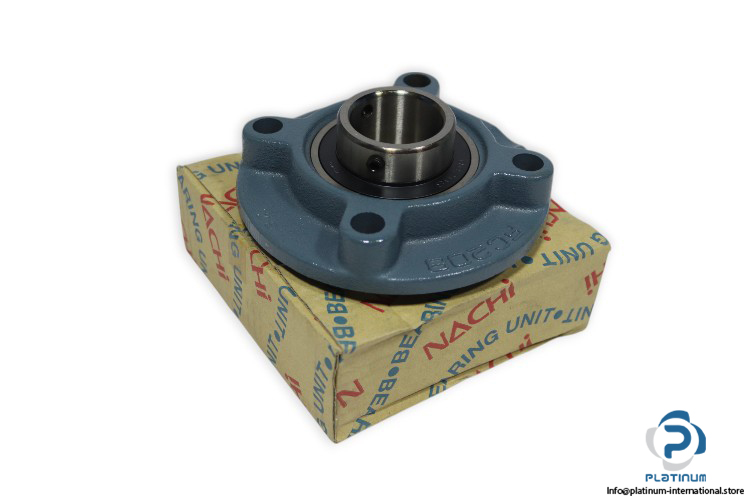

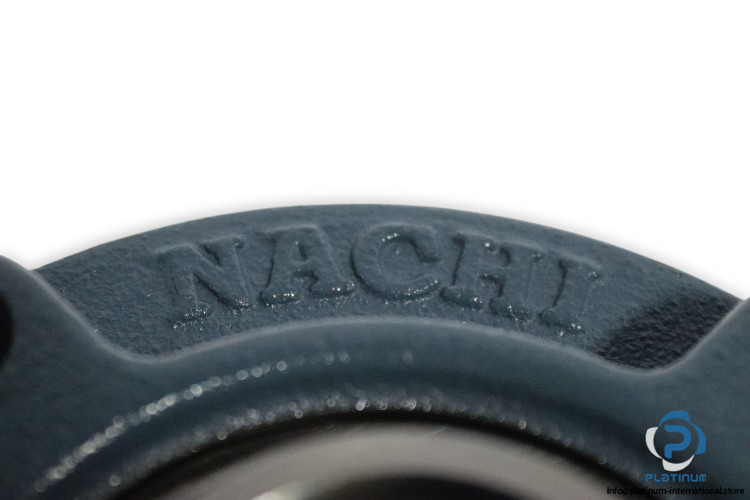

Nachi UCFC 208 Round Flange Ball Bearing Unit
The Nachi UCFC 208 Round Flange Ball Bearing Unit is a high-performance component designed for industrial applications requiring precision and durability. With its robust FC 208 housing and reliable UC 208 bearing, this unit ensures consistent operation in demanding environments.
Manufacturer: Nachi
Type: ROUND FLANGE BALL BEARING UNIT
Model: UCFC 208
Technical Information:

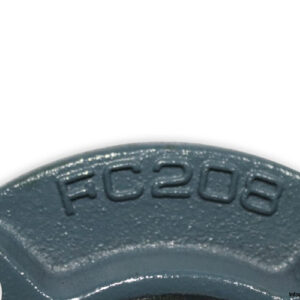

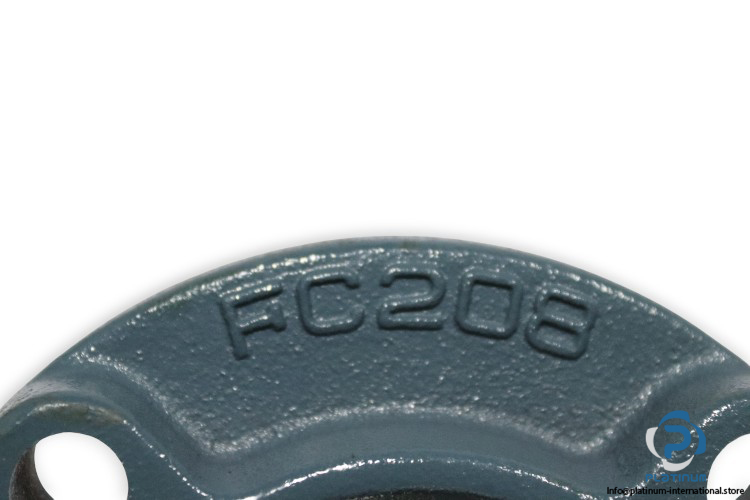

- Housing No.: FC 208

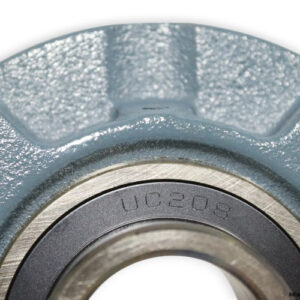

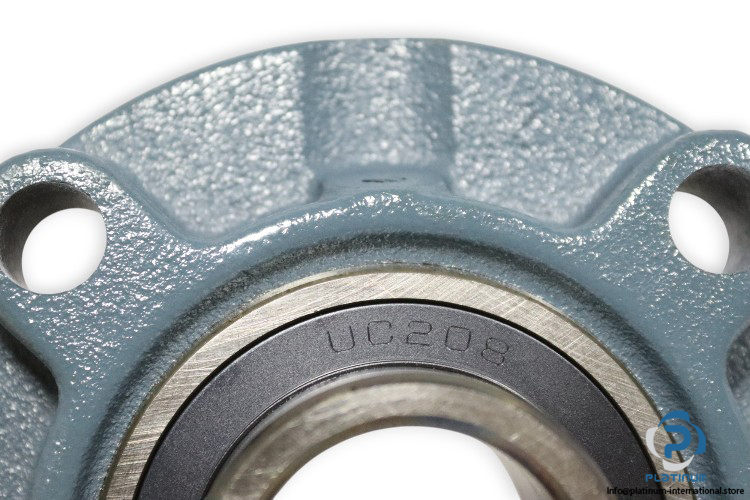

- Bearing No.: UC 208
- Bore Diameter (d): 40 mm
- Outside Diameter: 145 mm
- Distance Between Attachment Bolts: 120 mm
- Length of Attachment Bolt Hole: 14 mm
- Width of Inner Ring: 49.2 mm
- Overall Width: 41.2 mm
- Dynamic Load Rating: 29300 N
- Static Load Rating: 17900 N
- Bolt Size: M12
The Nachi UCFC 208 Round Flange Ball Bearing Unit combines strength and precision, making it suitable for a wide range of machinery requiring stable and reliable operation.
