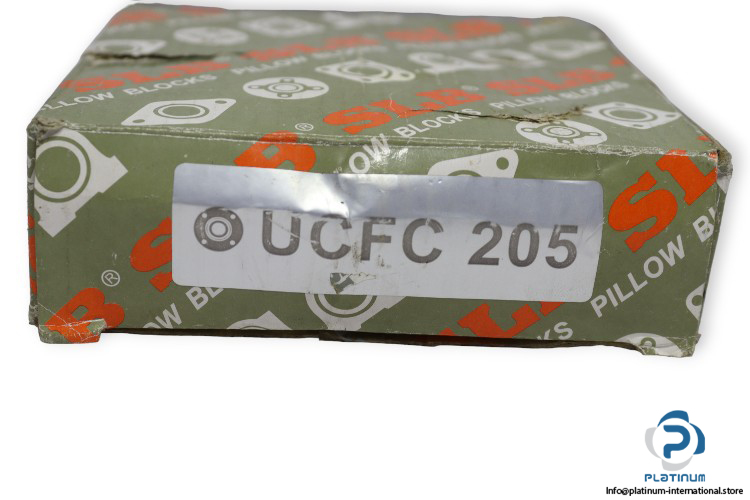

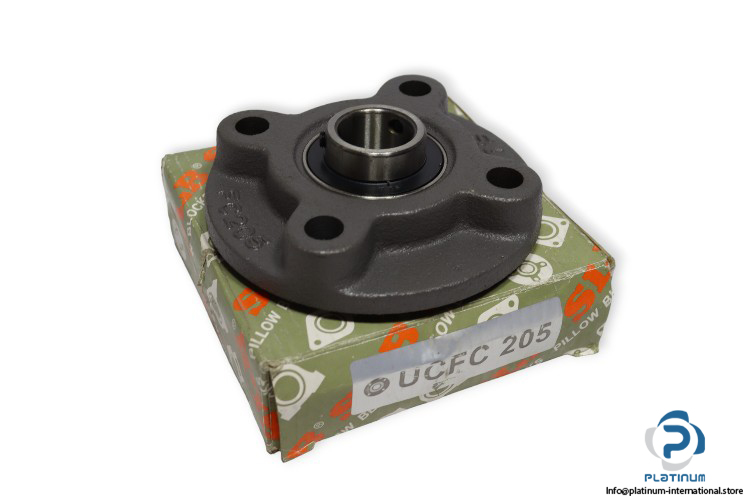

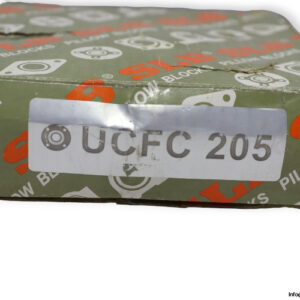

SLB UCFC205 Round Flange Ball Bearing Unit

Manufacturer: SLB
Type: Round flange ball bearing unit
Model: UCFC 205

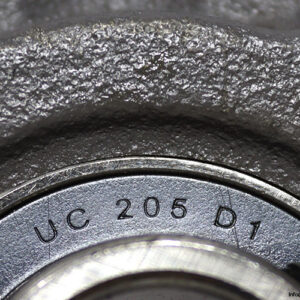

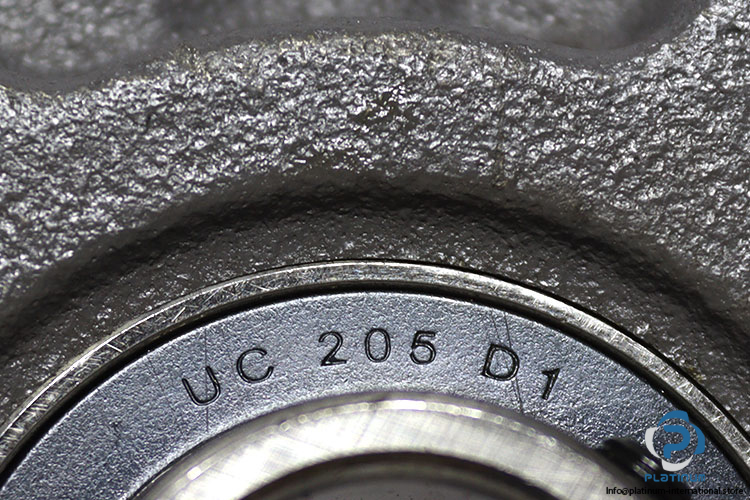

Bearing Number: UC 205 D1

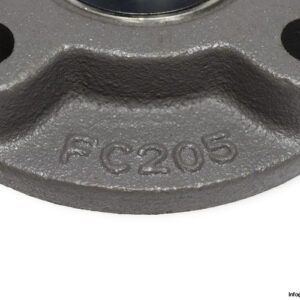

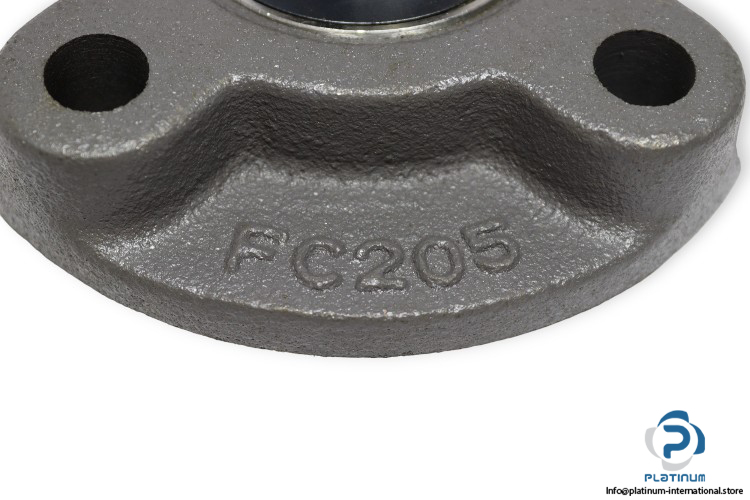

Housing Number: FC205

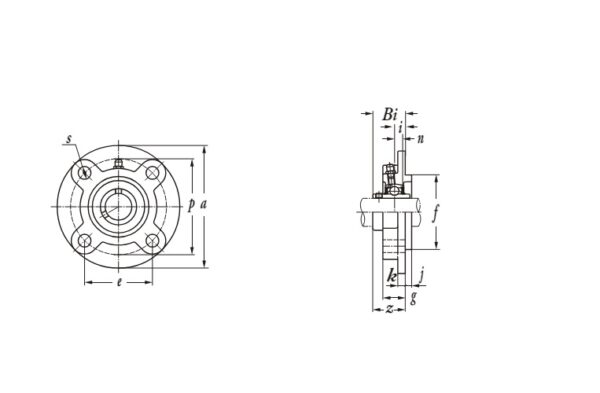

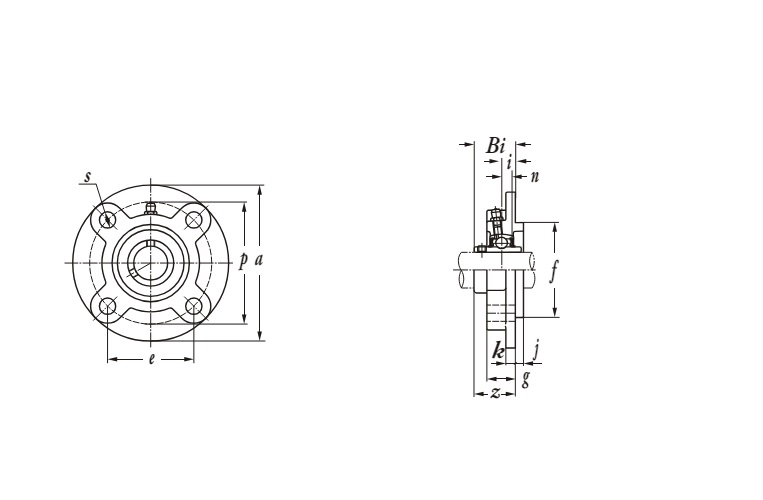

Dimensions
Bore Diameter d: 25 mm
Outside diameter a: 115 mm
Distance between attachment bolts e: 63.6 mm
Pitch diameter of attachment bolts p: 90 mm
Length of attachment bolt hole S: 12 mm
Width of inner ring Bi: 34 mm
Overall width Z: 29.7 mm
Bolt size: M10
Material, housing: Cast Iron
Locking Device: Set Screw
