New

Manufacturer: Nachi

Cast Iron Oval Flange Housing

NACHI UCFL211 OVAL FLANGE BALL BEARING UNIT

Name: NACHI UCFL211 OVAL FLANGE BALL BEARING UNIT
SKU: 1057920
Availability: InStock

The Oval Flange Ball Bearing Unit UCFL 211 by Nachi features a bore diameter of 55 mm, dynamic load rating of 43,000 N, and static load rating of 29,400 N. Designed with a set screw locking device and M16 bolt size for easy installation.

SKU: 1057920 Category: Cast Iron Oval Flange Housing Tags: 000, 211, 29, 400, 43, 55, Ball, bearing, Bolt, bore, DEVICE, diameter, Dynamic, FL211, Flange, Load, locking, M16, mm, N, NACHI, Oval, Rating, screw, Set, Size, static, UC211, UCFL, Unit

In stock: 1 pcs

Very low

Hurry! Only 1 left in stock.

Add to quote

Description
Additional information

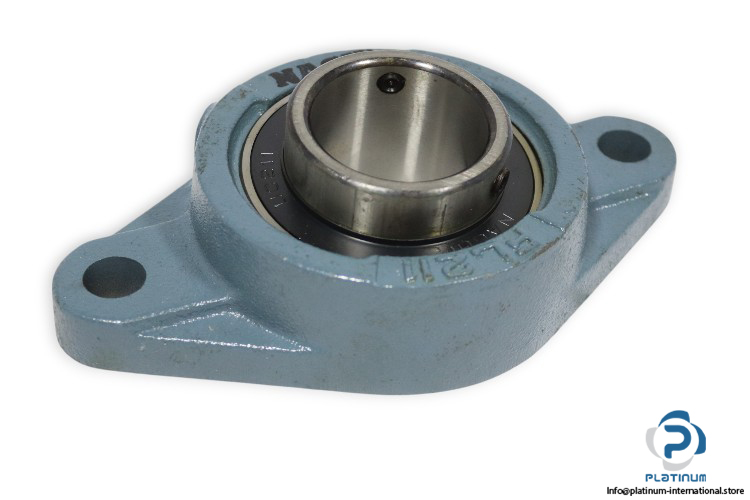

Oval Flange Ball Bearing Unit – UCFL 211

The Oval Flange Ball Bearing Unit (Model: UCFL 211) is designed for high-performance applications where smooth operation and reliability are crucial. It features a robust housing and locking device for easy and secure installation. Below are the key specifications:

Manufacturer: Nachi
Type: Oval Flange Ball Bearing Unit
Model: UCFL 211

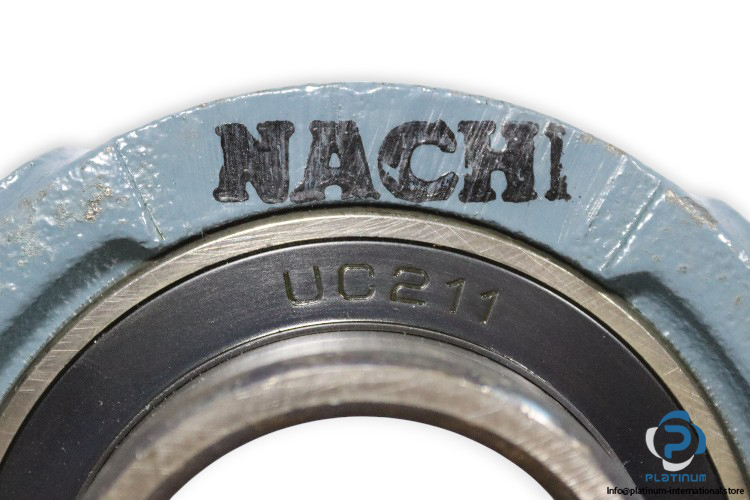

Bearing No.: UC211

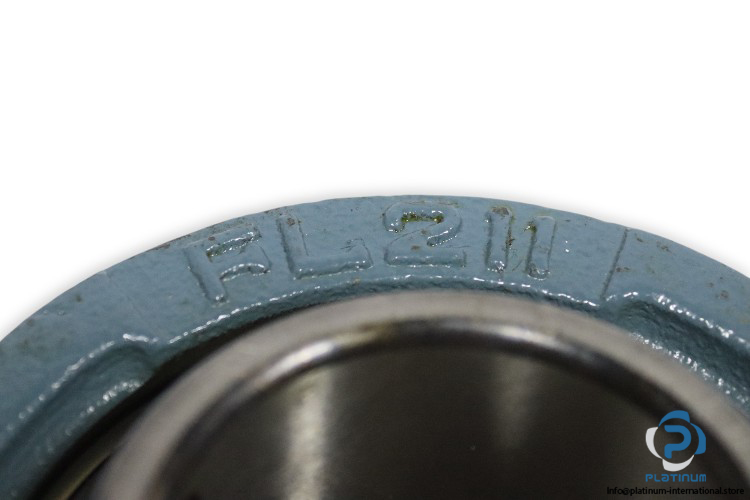

Housing No.: FL211
Bore Diameter d: 55 mm
Overall Length L: 130 mm
Overall Height H: 224 mm
Width of Inner Ring B: 55.6 mm
Distance Between Attachment Bolts J: 184 mm
Overall Unit Width A0: 58.4 mm
Bolt Size: M16
Basic Load Rating:

Dynamic Cr: 43000 N
Static C0r: 29400 N

Locking Device: Set Screw

Weight	3 kg
Condition	New
Model	UCFL 211
Manufacturer	Nachi
Type of Product	Oval Flange Ball Bearing Unit
Shelf No.	250131
