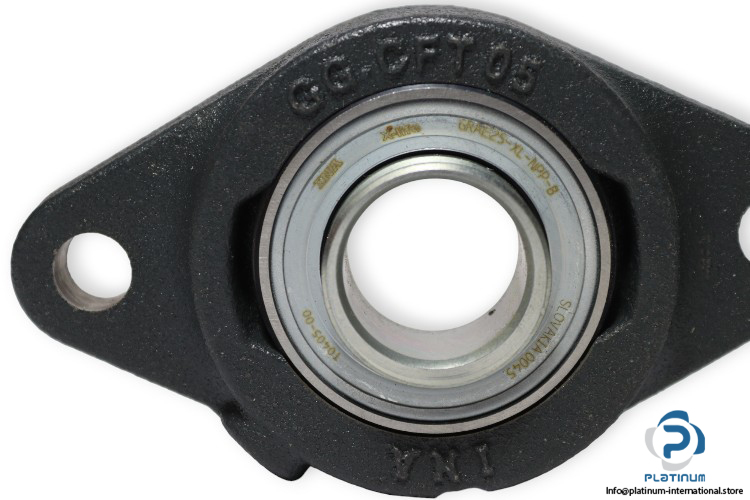

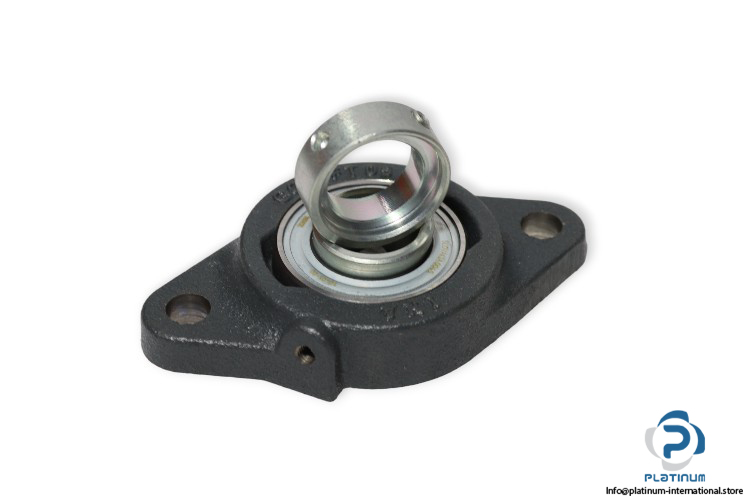

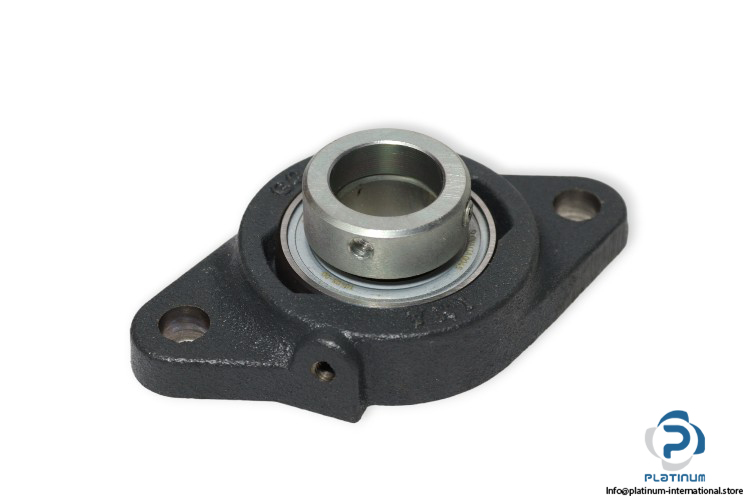

INA PCFT25-XL Flanged Housing Unit

Manufacturer: INA
Type: two-bolt flanged housing units
Model: PCFT25-XL
Replaces: PCFT25
Housing: GG. CFT05
Bearing designation: GRAE25-XL-NPP-B

Bore Diameter d: 25 mm
Flange width L: 70 mm
Height flange H: 124 mm
Total height unit U: 36 mm
Distance fixing bore J: 99 mm
Fixing bore N: 11.5 mm
Basic dynamic load rating: 14900 N
Basic static load rating: 7800 N
Fatigue load limit: 410 N
Temperature range: -20 °C…120°C
Material: GG, Grey cast iron
