FYH UCFL203 J Oval Flanged Housing Unit

Name: FYH UCFL203 J OVAL FLANGED HOUSING UNIT
SKU: 1030863
Availability: LimitedAvailability

fyh-UCFL203-J-oval-flange-ball-bearing-unit-(new)-(carton)

fyh-UCFL203-J-oval-flange-ball-bearing-unit-(new)-(carton)-1

fyh-UCFL203-J-oval-flange-ball-bearing-unit-(new)-(carton)-2

fyh-UCFL203-J-oval-flange-ball-bearing-unit-(new)-(carton)-3

New

In stock2 unitsReady to ship

Manufacturer:

FYH

Type:

Oval flange ball bearing unit

Model:

UCFL 203 J

Bearing No.:

UC203

Housing No.:

FL204

Manufacturer

FYH

SKU

1030863

Category

Plummer Block Housing Units

Condition

New

17 bearing bearings flanged FYH Housing mm Oval Two-Bolt Unit Units Žhousing

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: FYH
Type: Oval flange ball bearing unit
Model: UCFL 203 J
Bearing No.: UC203
Housing No.: FL204

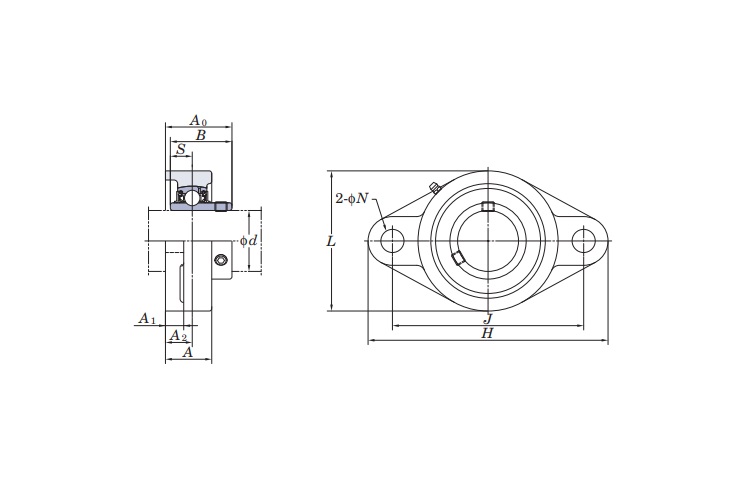

Dimensions
Bore Diameter d: 17 mm
Overall Length L: 60 mm
Overall Height H: 113 mm
Width of inner ring B: 31 mm
Distance Between Attachment Bolts J: 90 mm
Overall unit width A₀: 33.3 mm
Basic load rating:
Dynamic Cr: 12800 N
Static C0r: 6650 N
Mounting: Oval Flange
Locking device: Set Screw
Bore type: cylindrical
