FYH UCP209J Pillow Block Ball Bearing Unit

Manufacturer: FYH
Type: Pillow Block Ball Bearing Unit
Model: UCP 209
Housing No.: p209
Bearing No.: UC209

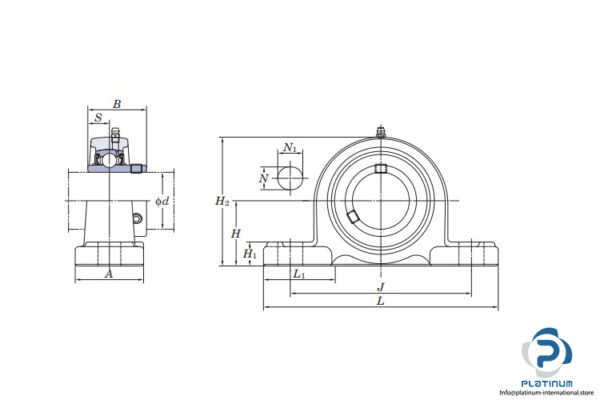

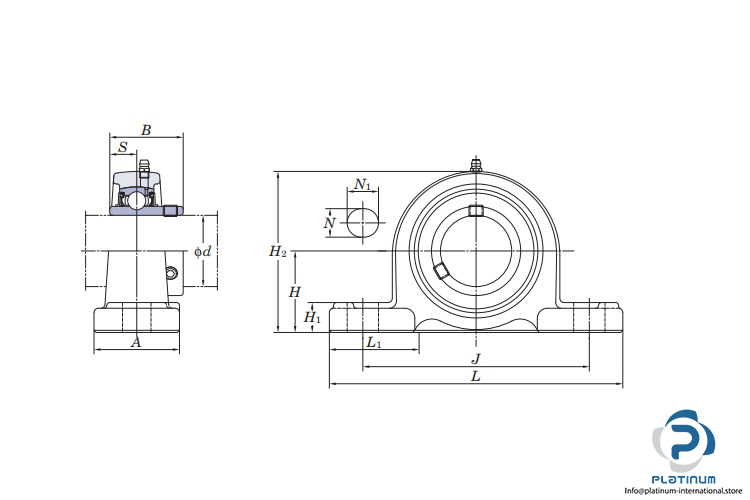

Dimensions
Bore Diameter d: 45 mm
Overall length L: 190 mm
Overall height H₂: 106 mm
Base width A: 54 mm
Width of Inner Ring B: 49.2 mm
Height of spherical seat center H: 54 mm
Distance Between Attachment Bolts J: 146 mm
Diameter of attachment bolt hole N: 17 mm
Length of attachment bolt hole N1: 21 mm
Foot height S: 19 mm
Bolt Size: M14
Basic Load Rating:
Dynamic Cr: 34100 N
Static C0r: 21300 N
Bore type: Cylindrical bore
Locking Device: Set Screw
