FYH UCFC204 J Round Flange Ball Bearing Unit

Name: FYH UCFC204 J ROUND FLANGE BALL BEARING UNIT
SKU: 1049005
Availability: LimitedAvailability

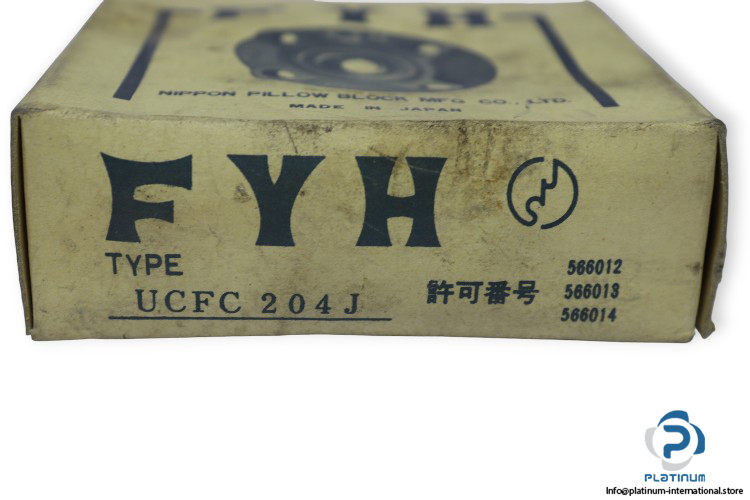

fyh-UCFC204-J-round-flange-ball-bearing-unit-(new)-(carton)

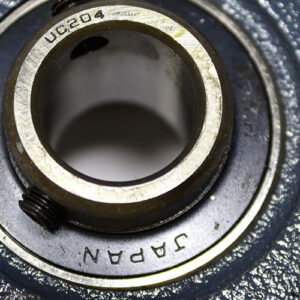

fyh-UCFC204-J-round-flange-ball-bearing-unit-(new)-(carton)-1

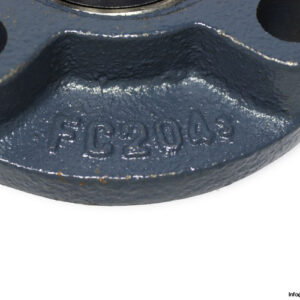

fyh-UCFC204-J-round-flange-ball-bearing-unit-(new)-(carton)-2

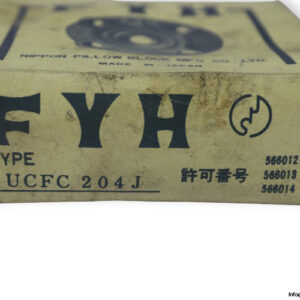

fyh-UCFC204-J-round-flange-ball-bearing-unit-(new)-(carton)-3

fyh-UCFC204-J-round-flange-ball-bearing-unit-(new)-(carton)-4

New

In stock3 unitsReady to ship

Manufacturer:

FYH

Type:

Round flange ball bearing unit

Model:

UCFC 204 J

Bearing Number:

UC204

Housing Number:

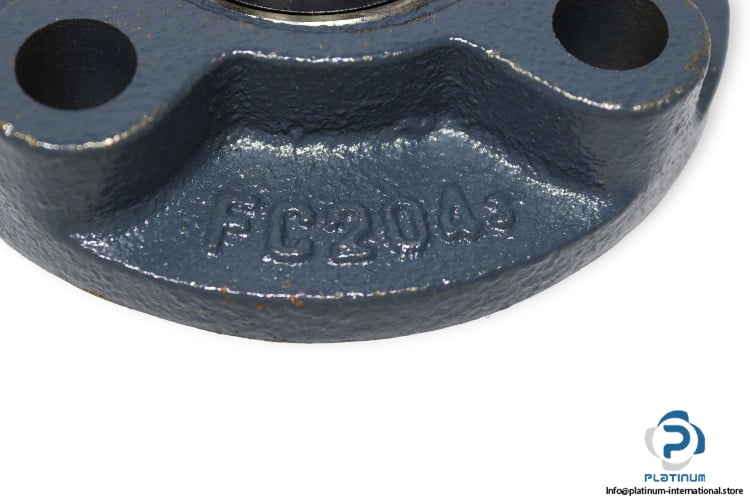

FC204J

Manufacturer

FYH

SKU

1049005

Category

Plummer Block Housing Units

Condition

New

20 bearing bearings Flange flanged Four-Bolt FYH mm Pillow Round Unit

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: FYH
Type: Round flange ball bearing unit
Model: UCFC 204 J
Bearing Number: UC204
Housing Number: FC204J

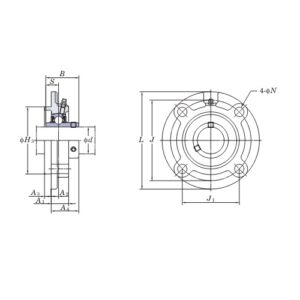

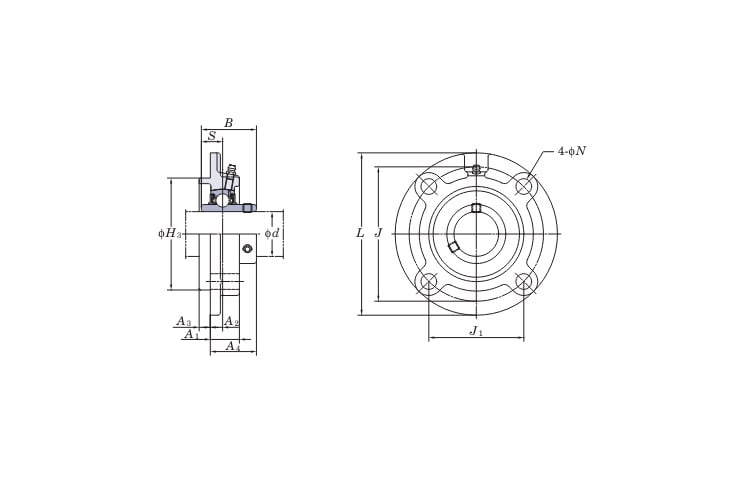

Dimensions
Bore Diameter d: 20 mm
Outside diameter L: 100 mm
Distance between attachment bolts J1: 55.1 mm
Pitch diameter of attachment bolts J: 78 mm
Length of attachment bolt hole N: 12 mm
Width of inner ring B: 31 mm
Overall width A₀: 28.3 mm
Basic load rating:
Dynamic Cr: 12800 N
Static C0r: 6650 N
Locking Device: Set Screw
Bore Type: Cylindrical
Material, housing: Cast iron
