Bearings Housing Units Plummer Block Housing Units

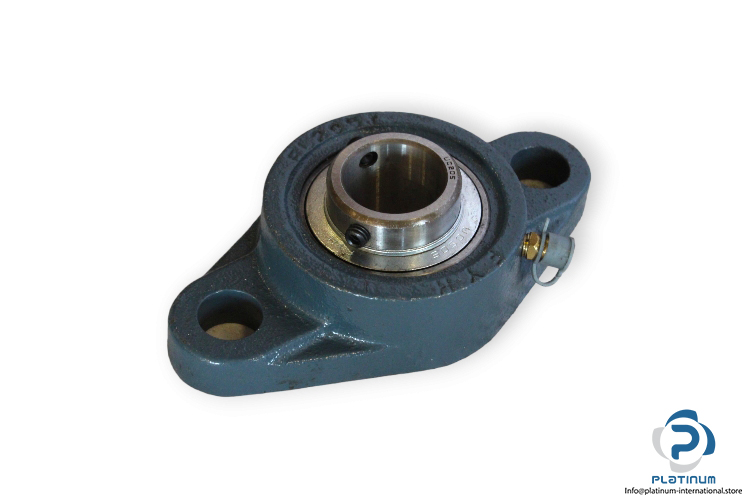

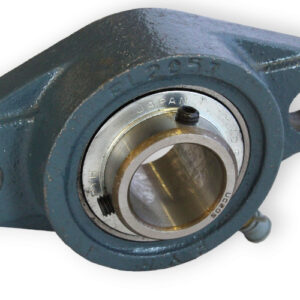

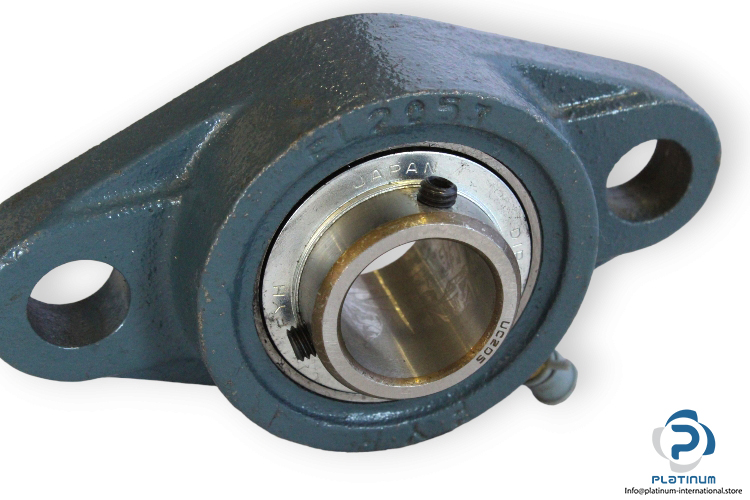

FYH Ucfl 205 Oval Flange Ball Bearing Unit

Name: FYH UCFL 205 OVAL FLANGE BALL BEARING UNIT
SKU: 1005344
Availability: LimitedAvailability

fyh-UCFL-205-oval-flange-ball-bearing-unit-(new)-1

fyh-UCFL-205-oval-flange-ball-bearing-unit-(new)-2

New

In stock1 unitReady to ship

Manufacturer:

FYH

Type:

Oval flange ball bearing unit

Model:

UCFL 205

Manufacturer

FYH

SKU

1005344

Category

Plummer Block Housing Units

Condition

New

25 bearing bearings flanged FYH Housing mm Oval Two-Bolt Unit Units Žhousing

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: FYH
Type: Oval flange ball bearing unit
Model: UCFL 205

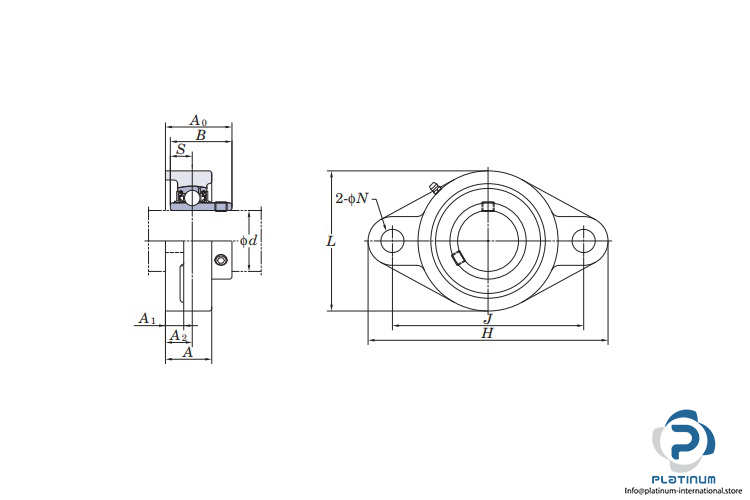

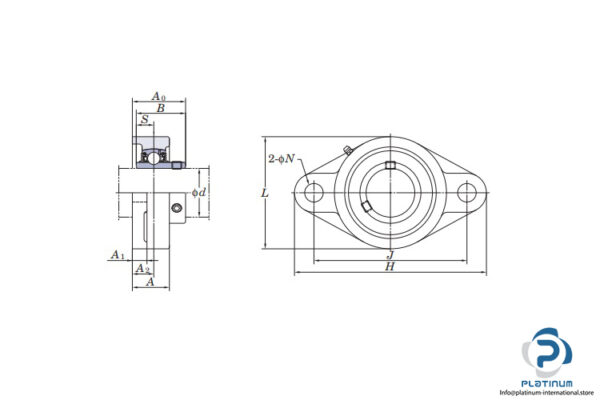

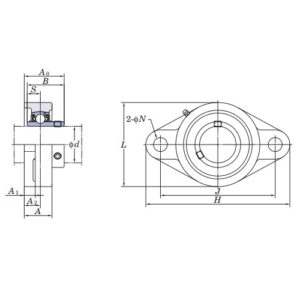

Dimensions
Bore Diameter d: 25 mm
Overall Length L: 68 mm
Overall Height H: 130 mm
Width of inner ring B: 34.1 mm
Distance Between Attachment Bolts J: 99 mm
Overall unit width A₀: 35.8 mm
Basic load rating:
Dynamic Cr: 14000 N
Static C0r: 7850 N
Mounting: Oval Flange
Locking device: Set Screw
Bore type: cylindrical
