FYH UKP206 Pillow Block Ball Bearing Unit
New
In stock1 unitReady to ship
FYH Pillow Block Ball Bearing Unit (Tapered Bore) UKP 206, featuring a 25 mm bore diameter, dynamic load rating of 19.5 mm, and a durable cast iron housing. Ideal for high-load applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

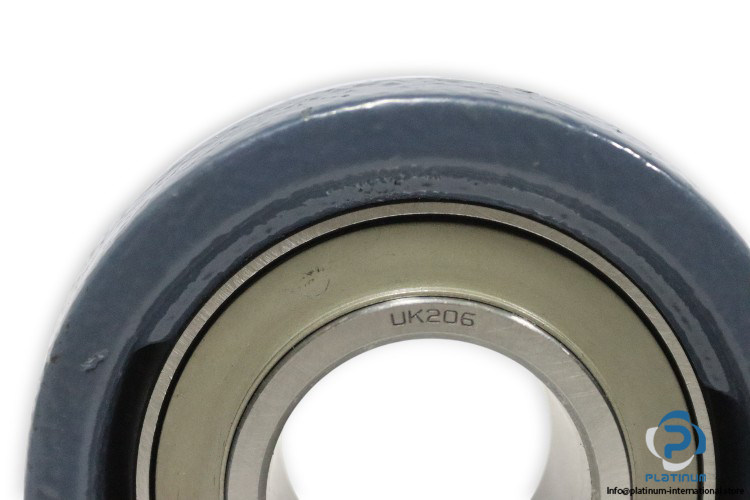

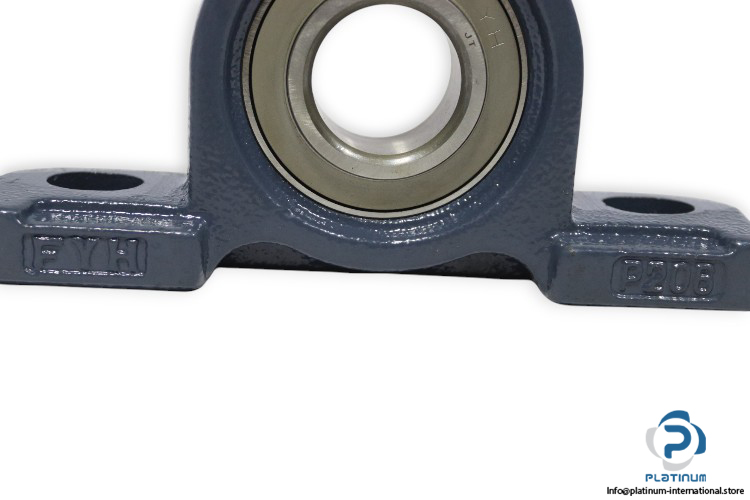

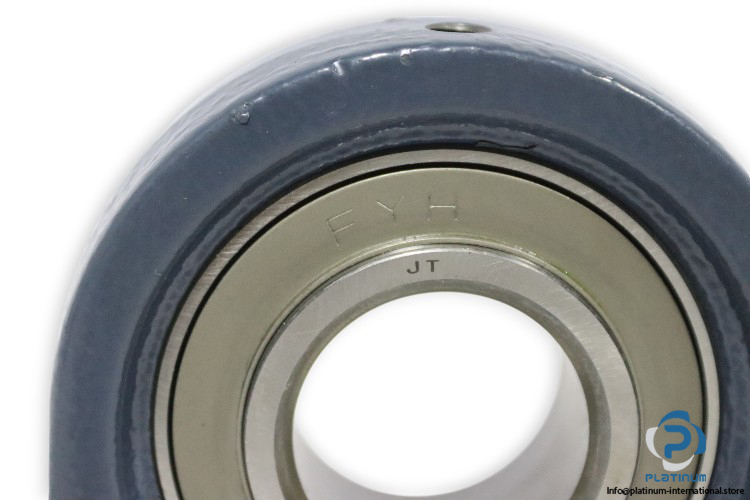

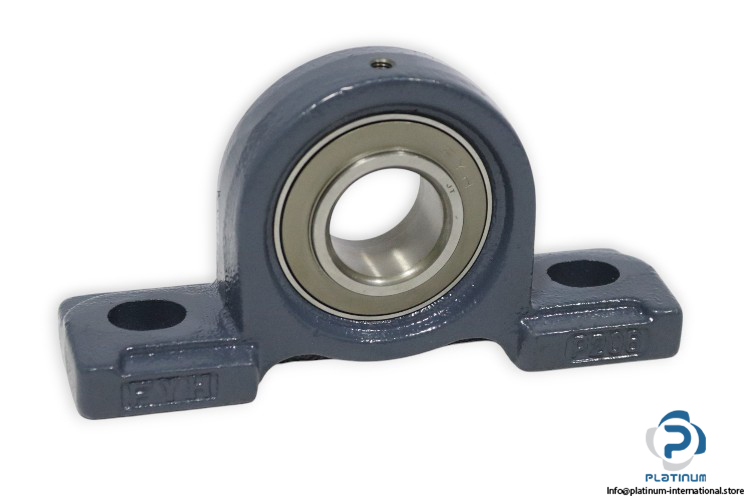

FYH Pillow Block Ball Bearing Unit (Tapered Bore) UKP 206
The FYH Pillow Block Ball Bearing Unit (Tapered Bore) UKP 206 is an industrial bearing designed for heavy-duty applications. It features a tapered bore for easy mounting and is ideal for applications requiring a durable and high-load bearing solution. The unit is designed with a two-bolt base for secure attachment and is made from cast iron for strength and durability.
🔧 Technical Specifications:
- Manufacturer: FYH
- Type: Pillow Block Ball Bearing Unit (Tapered Bore)
- Model: UKP 206
- Bearing No.: UK206
- Housing No.: P206
- Bore Diameter: 25 mm
- Overall Length: 165 mm
- Overall Height: 84 mm
- Width of Inner Ring: 38 mm
- Overall Width: 48 mm
- Distance Between Attachment Bolts: 121 mm
- Diameter of Attachment Bolt Hole: 17 mm
- Height of Spherical Seat Center: 42.9 mm
- Dynamic Load Rating: 19.5 mm
- Static Load Rating: 11.3 mm
- Mounting Type: Two-Bolt Base
- Bolt Size: M14
- Housing Material: Cast Iron
Ideal for high-load applications, this bearing unit ensures long-lasting and smooth operation in demanding environments.
