FYH Ucfl 204 Oval Flange Ball Bearing Unit

Name: FYH UCFL 204 OVAL FLANGE BALL BEARING UNIT
SKU: 1005347
Availability: LimitedAvailability

fyh-UCFL-204-oval-flange-ball-bearing-unit-(new)-(carton)-1

fyh-UCFL-204-oval-flange-ball-bearing-unit-(new)-(carton)-2

New

In stock13 unitsReady to ship

Manufacturer:

FYH

Type:

Oval flange ball bearing unit

Model:

UCFL 204J

Manufacturer

FYH

SKU

1005347

Category

Plummer Block Housing Units

Condition

New

20 bearing bearings flanged FYH Housing mm Oval Two-Bolt Unit Units Žhousing

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: FYH
Type: Oval flange ball bearing unit
Model: UCFL 204J

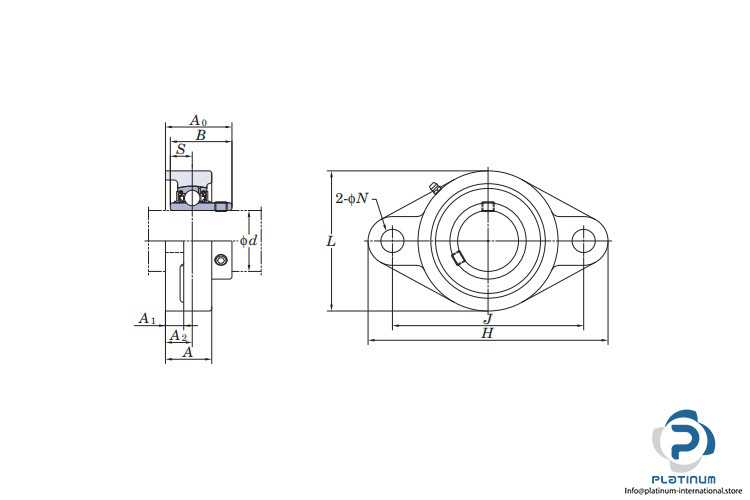

Dimensions
Bore Diameter d: 20 mm
Overall Length L: 60 mm
Overall Height H: 113 mm
Width of inner ring B: 31 mm
Distance Between Attachment Bolts e: 90 mm
Overall unit width A₀: 33.3 mm
Basic load rating:
Dynamic Cr: 12800 N
Static C0r: 6650 N
Mounting: Oval Flange
Locking device: Set Screw
Bore type: cylindrical
