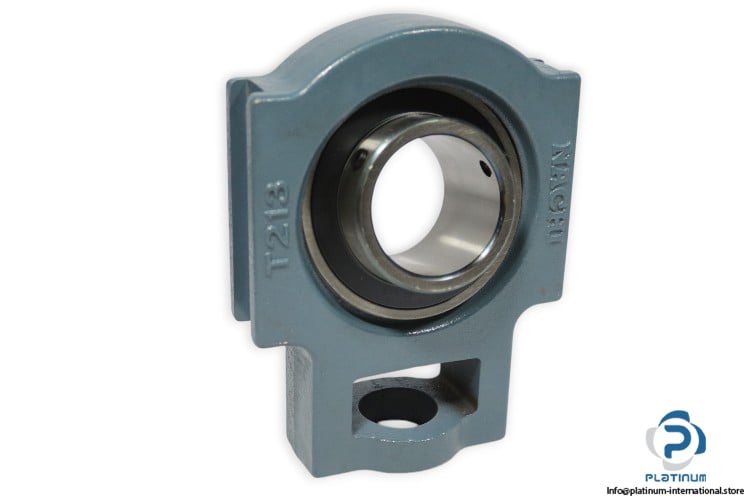

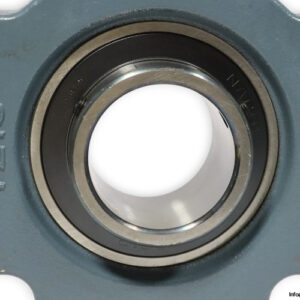

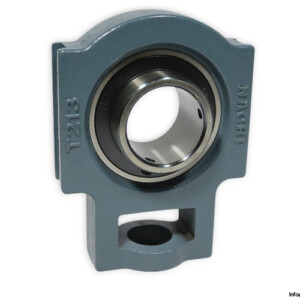

Nachi UCT213 Take Up Ball Bearing Unit
The Nachi UCT213 is a high-quality Take Up Ball Bearing Unit designed for demanding applications. With a cylindrical bore type and set screw locking device, this unit ensures robust performance and reliability. Manufactured with durable cast iron housing (Model: T213) and equipped with UC213 bearing designation, it is ideal for industrial environments.
Key Features

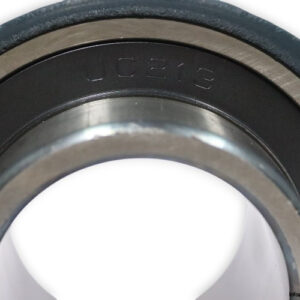

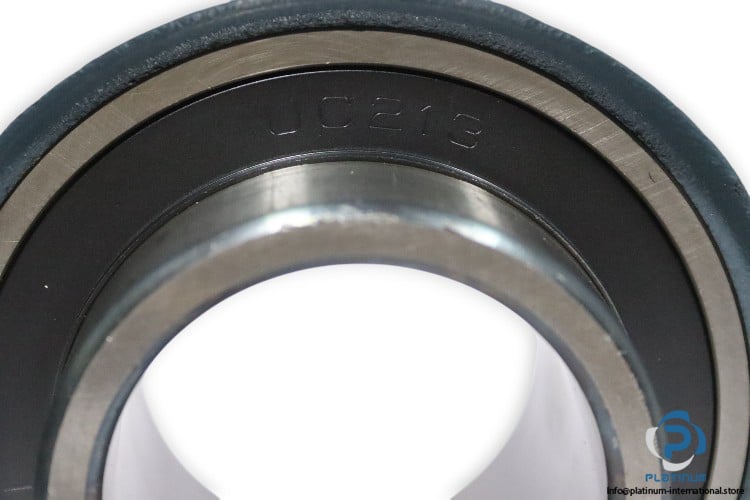

- Bearing Designation: UC213

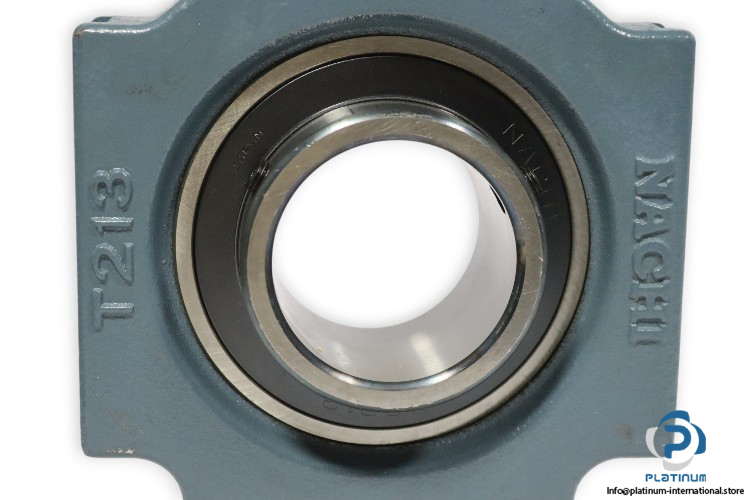

- Housing: T213

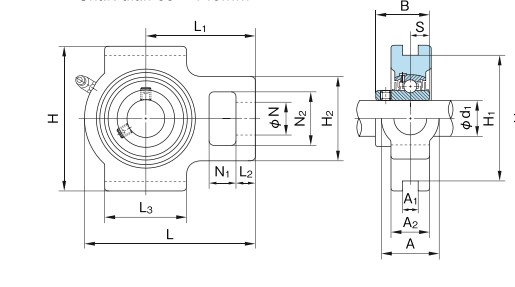

- Bore Diameter: 65 mm
- Width of Inner Ring: 65.1 mm
- Overall Length: 224 mm
- Overall Height: 167 mm
- Overall Unit Width: 70 mm
- Diameter of Attachment Bolt Hole: 41 mm
- Basic Load Rating:
- Dynamic Cr: 57500 N
- Static C0r: 40000 N
- Material: Cast Iron
- Locking Device: Set Screw
- Bore Type: Cylindrical
