Nachi UCT 213 Take UP Ball Bearing Unit
New
In stock1 unitReady to ship
Take-Up Ball Bearing Unit
The Nachi UCT213 Take-Up Ball Bearing Unit features a durable cast iron housing and precision UC213 bearing, offering exceptional stability and performance for demanding industrial applications.65BallbearingboreCastComponentsdiameterHeavy-DutyHousingIndustrialIronlockingMachinerymmNachireliablescrewSetT213Take-upUC213UCT213Unit
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

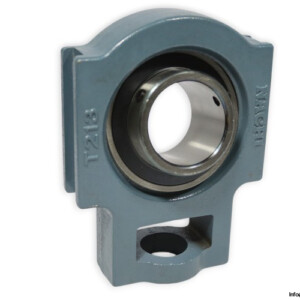

Nachi UCT213 Take-Up Ball Bearing Unit
The Nachi UCT213 Take-Up Ball Bearing Unit is a robust and reliable solution designed for heavy-duty industrial applications. With a durable cast iron housing and the precision-engineered UC213 bearing, this unit ensures optimal performance, stability, and longevity in demanding environments.
Manufacturer: Nachi
Type: TAKE UP BALL BEARING UNIT
Model: UCT213
Basic Load Rating:
Built for strength and precision, the Nachi UCT213 Take-Up Ball Bearing Unit is an ideal choice for industrial machinery requiring robust and reliable bearing solutions.
| Bearing Designation | UC213 |
| Housing | T213 |
| Bore Diameter (d) | 65 mm |
| Width of Inner Ring (B) | 65.1 mm |
| Overall Length (L) | 224 mm |
| Overall Height (H) | 167 mm |
| Overall Unit Width (A) | 70 mm |
| Diameter of Attachment Bolt Hole (N) | 41 mm |
| Dynamic (Cr) | 57500 N |
| Static (C0r) | 40000 N |
| Material | Cast Iron |
| Locking Device | Set Screw |
| Bore Type | Cylindrical |
