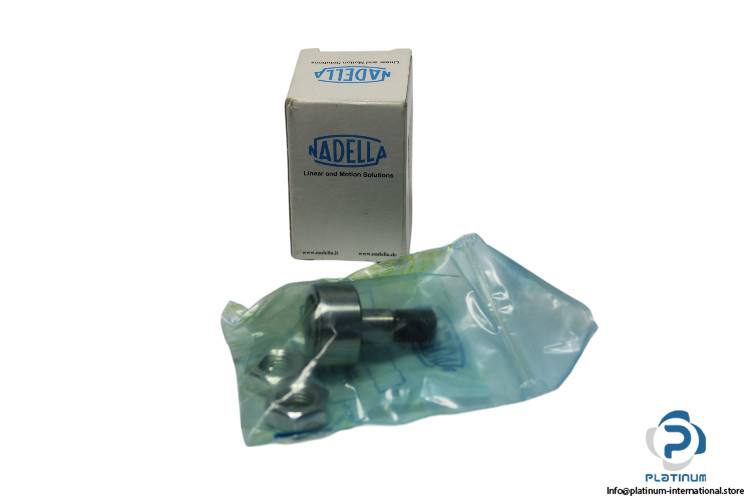

Nadella GC 24 EE SW Stud Type Cam Follower
The Nadella GC 24 EE SW Stud Type Cam Follower is a high-performance bearing solution designed for cam and track roller applications. With a durable double-sealed design, high load capacity, and efficient grease lubrication, this cam follower ensures smooth operation and long service life in industrial environments.
- Manufacturer: Nadella
- Type: Stud Type Cam Follower
- Model: GC 24 EE SW
Technical Information
- Outside Diameter (D): 24 mm
- Attachment Diameter (d): 10 mm
- Total Length (B1): 36 mm
- Width Outer Ring (C): 12 mm
- Thread Stud (G): M10x1.25
- Basic Load Ratings:
- Dynamic (Fr): 5300 N
- Static (F0r): 9800 N
- Speed Limits (Grease Lubrication): 3400 rpm
- Sealing: EE, Double Seals
