FAG KR 30 Stud Type Track Roller

Name: FAG KR 30 STUD TYPE TRACK ROLLER
SKU: 1057580
Availability: LimitedAvailability

fag-KR-30-stud-type-track-roller-(new)-1

fag-KR-30-stud-type-track-roller-(new)-2

fag-KR-30-stud-type-track-roller-(new)-3

New

In stock1 unitReady to ship

Type: STUD TYPE TRACK ROLLER Model: KR-30

Manufacturer:

FAG

Manufacturer

FAG

SKU

1057580

Category

Cam Followers

Condition

New

30 bearings Cam Fag Followers Roller Rollers Schaeffler Stud Support track Type

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: FAG
Type: STUD TYPE TRACK ROLLER
Model: KR-30

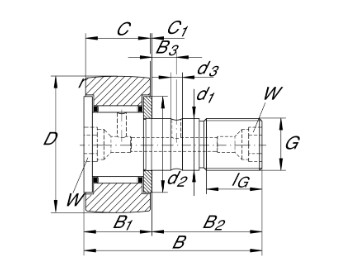

Dimensions:
Outside diameter D: 30 mm
Fit diameter of roller stud d₁: 12 mm
Width of the roller stud B: 40 mm
Basic dynamic load rating, radial: 6,800 N
Basic static load rating, radial: 8,700 N
Fatigue load limit, radial: 1,240 N
Speed on permanent grease lubrication: 5,500 1/min
Grease nipples: Drive-fit lubrication nipple unmounted 2x
Sealing: Gap seal on both sides
Mounting aid stud: 16, Hexagon socket
Thread: M12X1,5
