INA KR 22PPX Stud Type Track Roller
New
In stock2 unitsReady to ship
INA Stud Type Track Roller features a cylindrical running surface, M10X1 thread, and robust three-stage PP sealing.
Manufacturer:
INA
Type:
Stud Type Track Roller
Model:
KR 22 PPX
The
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

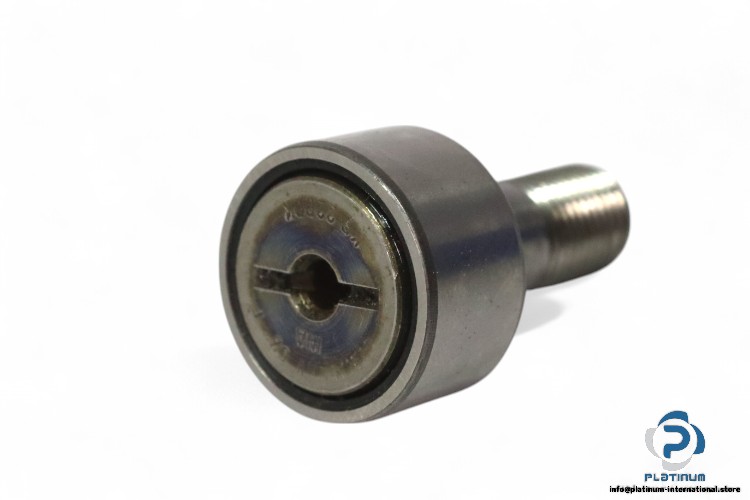

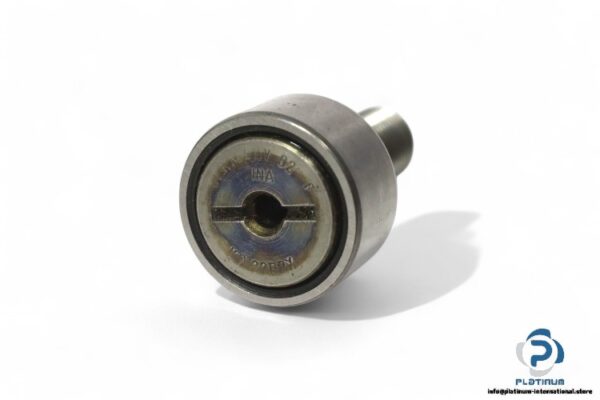

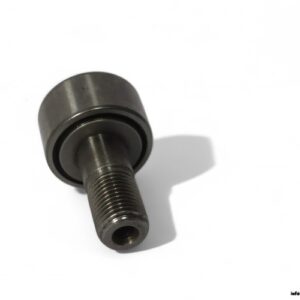

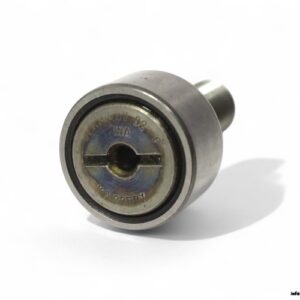

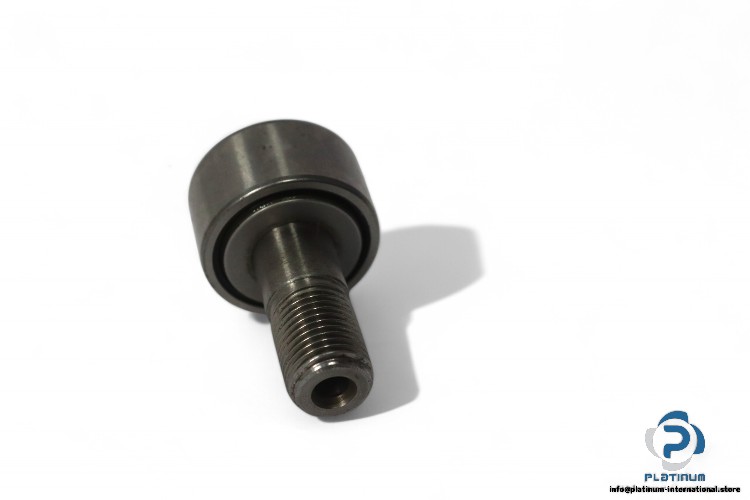

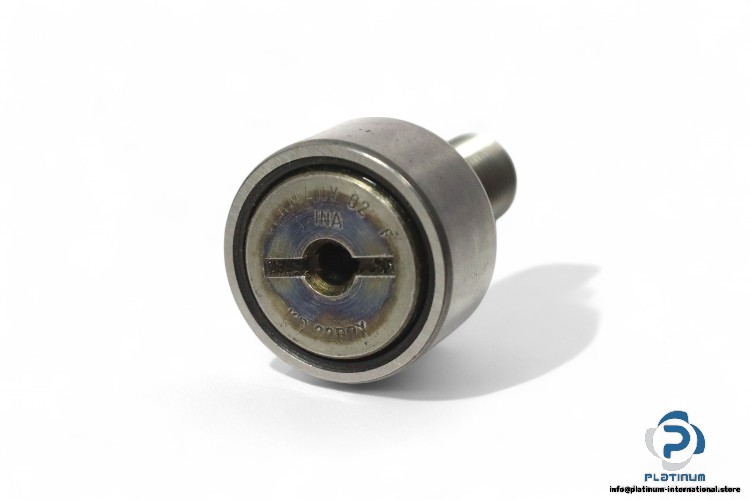

Stud Type Track Roller (Model: KR 22 PPX)
Manufacturer: INA
Type: Stud Type Track Roller
Model: KR 22 PPX
The INA Stud Type Track Roller (Model: KR 22 PPX) is designed for high-performance applications, featuring a cylindrical running surface and advanced sealing for durability and reliability.
- Manufacturer: INA
- Type: Stud Type Track Roller
- Model: KR 22 PPX

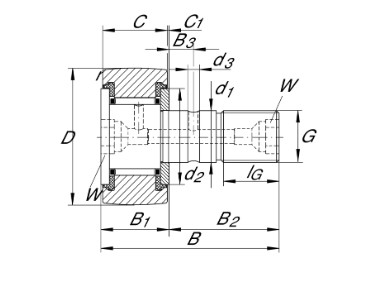

- Design: X, Cylindrical Running Surface
- Outside diameter (D): 22 mm
- Fit diameter of roller stud (d1): 10 mm
- Width of the roller stud (B): 36 mm
- Width: 12 mm
- Maximum width of thrust washer (B1): 13.2 mm
- Thread (G): M10X1
- Thread length: 12 mm
- Basic load ratings, radial:
- Dynamic Cr w: 4,500 N
- Static C0r w: 5,400 N
- Fatigue load limit Cur w: 740 N
- Speed on permanent grease lubrication: 8,000 1/min
- Sealing: PP, Three-stage sealing by plastic axial plain washer on both sides
