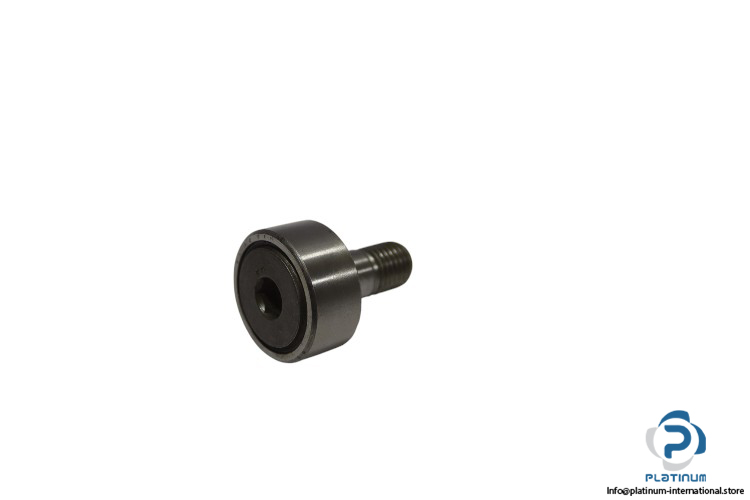

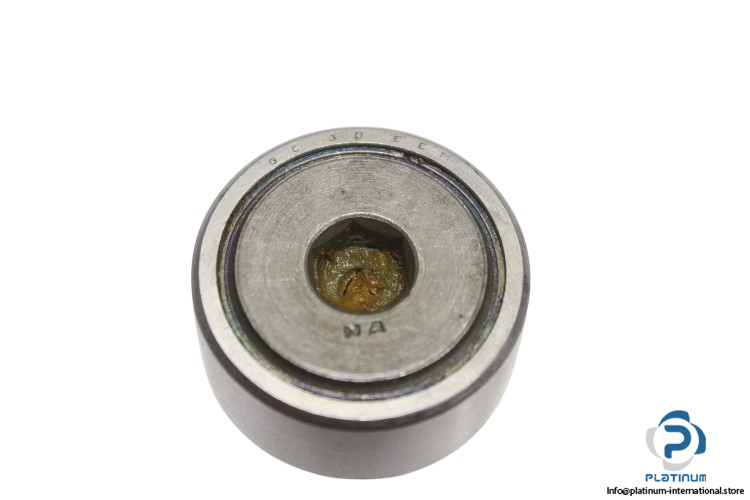

Nadella GC 30 EEM Stud Type Cam Follower (Concentric)

The Nadella GC 30 EEM Stud Type Cam Follower is engineered for precise motion and durability, featuring a concentric design with metal seals. It is ideal for high-load applications with efficient performance and high-speed limits.

Manufacturer: Nadella

Type: Stud Type Cam Follower (Concentric)

Model: GC 30 EEM

Technical Information:

• Outside Diameter (D): 30 mm
• Attachment Diameter (d): 12 mm
• Total Length (B1): 40.7 mm
• Width Outer Ring (C): 14 mm
• Thread Stud (G): M12x1.5
• Dynamic Load Rating (Fr): 8.48 kN
• Static Load Rating (F0r): 15.3 kN
• Speed Limits (Grease Lubrication): 2900 rpm
• Sealing: EEM, Metal Seals
