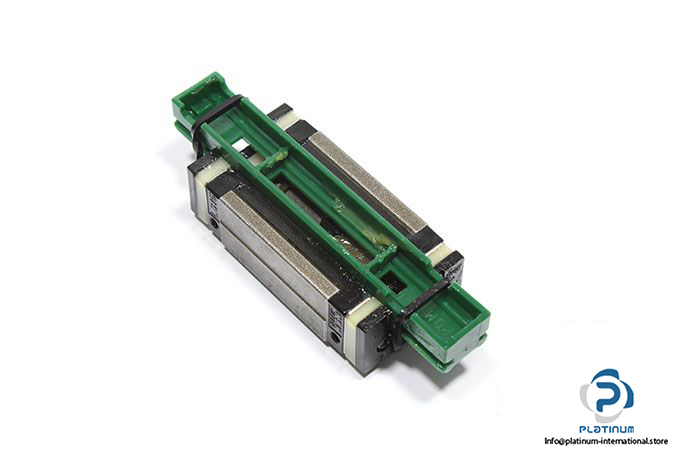

NSK LAS15ALZ-K Linear Guideway Block
The NSK LAS15ALZ-K is a high-load, square-type linear guideway block engineered for precise linear motion and smooth operation in industrial automation and machinery applications.
Manufacturer: NSK
Type: Linear Guideway Block LAS
Model: LAS15ALZ-K
Technical Information
- Size: 15 mm
- Block Type: Square Type
- Load Type: High
- Basic Load Ratings – Dynamic (C): 685 kgf
- Basic Load Ratings – Static (C0): 1270 kgf
- Preload Class: Z – Light
- Total Height (H): 24 mm
- Block Width (W): 34 mm
- Block Length (L) with Double Seal: 66 mm
