NSK L1S15-290T Rail Guide
New
In stock3 unitsReady to ship
Interchangeable Rail
NSK L1S15-290T fine clearance rail, size 15 mm with 290 mm length. Designed for high-precision linear motion applications and compatible with L1S15T linear guide blocks.AutomationClearanceFineGuideInterchangeableL1S15-290TL1S15TLinearMachineryMotionNSKPrecisionrailSystem
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
NSK L1S15-290T Interchangeable Rail (Fine Clearance)
The NSK L1S15-290T is a precision-engineered interchangeable rail designed for linear motion systems requiring high accuracy and fine clearance. It provides stable motion performance and is ideal for automation and machinery applications.
Manufacturer: NSK
Type: Interchangeable Rail (Fine Clearance)
Model: L1S15-290T
Linear Guide Model: L1S15T

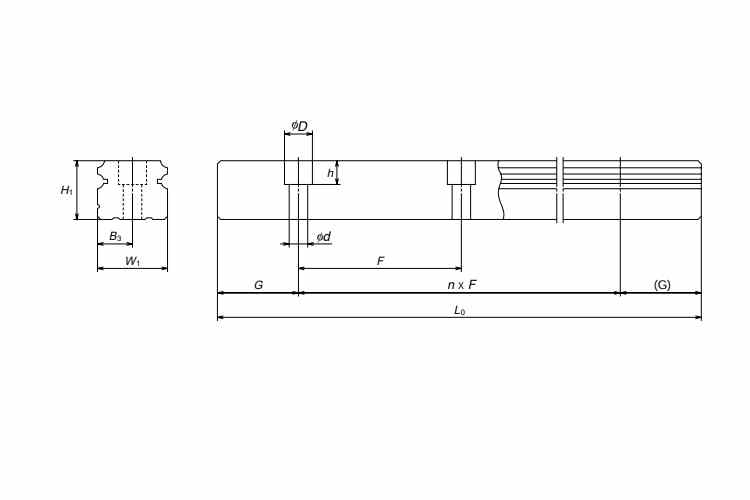

| Size | 15 mm |
| Width (W1) | 15 mm |
| Height (H1) | 12.5 mm |
| Pitch (F) | 60 mm |
| Mounting Bolt Hole (d x D x h) | 3.5 x 6 x 4.5 mm |
| B3 | 7.5 mm |
| G | 20 mm |
| T | Counterbore Hole in Rail for M4 |
| Length (L0) | 290 mm |
| Note | Corresponding Linear Guideway Blocks are available in various dimensions upon request to match your rail system. |
