NSK L1S15-680T Rail Guide
New
In stock7 unitsReady to ship
Interchangeable Rail
NSK L1S15-680T fine clearance rail, 15 mm size with 680 mm length. Precision design for linear motion systems requiring accuracy and smooth operation.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

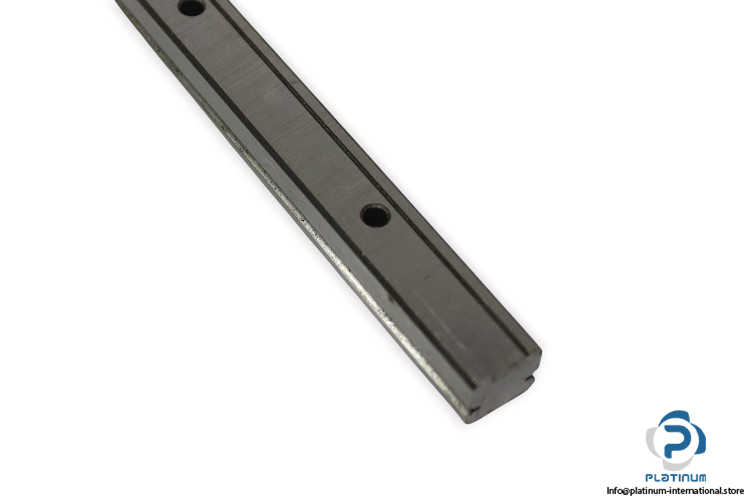

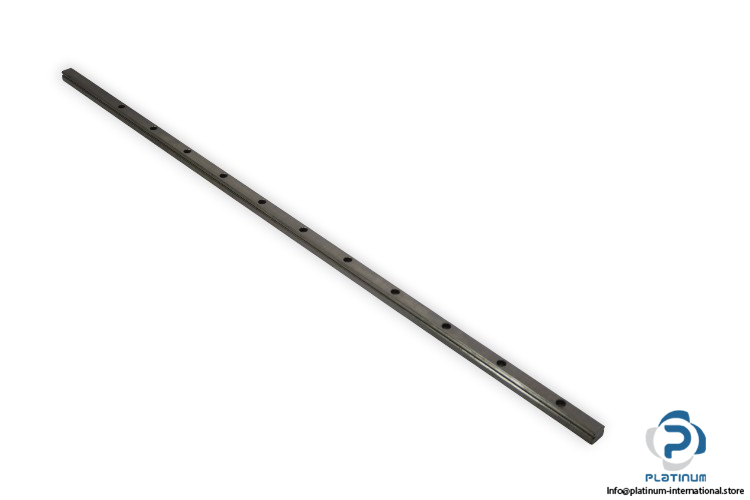

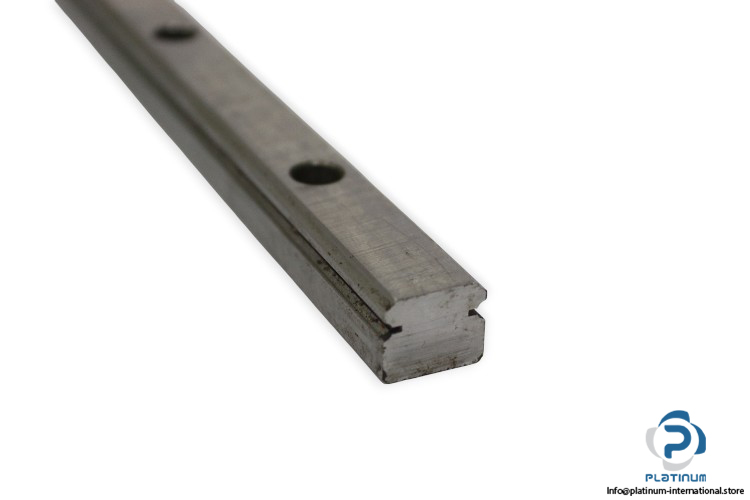

NSK L1S15-680T Interchangeable Rail (Fine Clearance)
The NSK L1S15-680T is a precision-engineered interchangeable rail with fine clearance, designed for linear motion systems requiring smooth operation and high accuracy.
Manufacturer: NSK
Type: Interchangeable Rail (Fine Clearance)
Model: L1S15-680T
Linear Guide Model: L1S15T

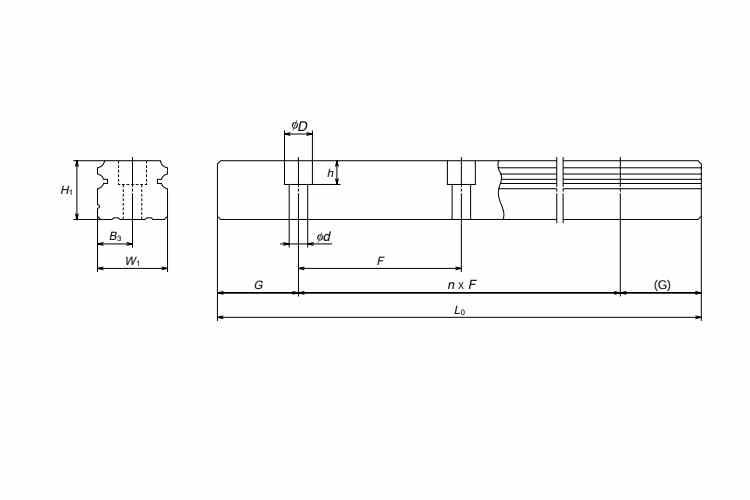

| Size | 15 mm |
| Width W1 | 15 mm |
| Height H1 | 12.5 mm |
| Pitch F | 60 mm |
| Mounting Bolt Hole (d x D x h) | 3.5 x 6 x 4.5 mm |
| B3 | 7.5 mm |
| G | 20 mm |
| T | Counterbore Hole in Rail for M4 |
| Maximum Length L0 | 680 mm |

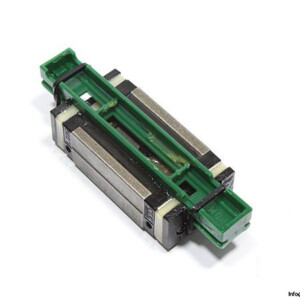

| Note | Corresponding Linear Guideway Blocks are available in multiple dimensions. Please inquire if you require matching Linear Guideway Blocks for this rail. |
