Manufacturer: NTN
Type: Round flange ball bearing
Model: M-UCFC 205 D1
Bearing Number: UC205D1
Housing Number: FC205D1

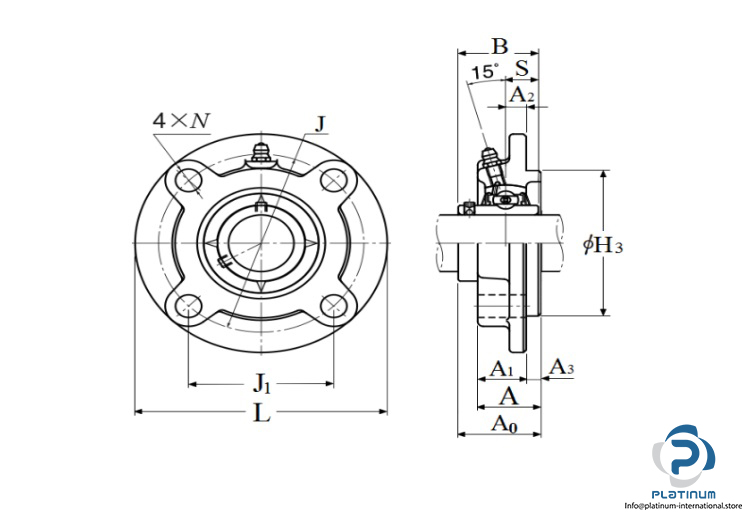

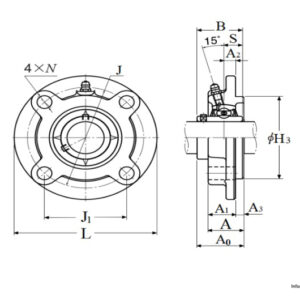

Dimensions
Bore Diameter d: 25 mm
Outside diameter L: 115 mm
Distance between attachment bolts J1: 63.6 mm
Pitch diameter of attachment bolts J: 90 mm
Length of attachment bolt hole N: 12 mm
Width of inner ring B: 34.1 mm
Overall width A₀: 35.8 mm
Dynamic Load Rating: 14000 N
Static Load Rating: 7850 N
Rotational Speed: 5900 rpm
Locking Device: Set Screw
Material, housing: Cast iron
