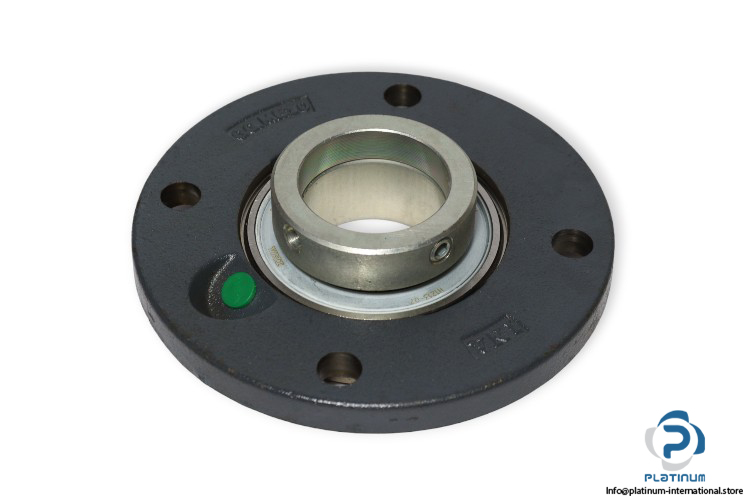

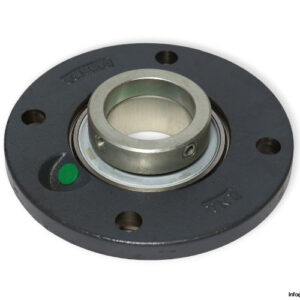

INA PME50-N Flanged Housing Unit

Manufacturer: INA
Type: four-bolt flanged housing units
Model: PME 50 N
Replaces: PME50-XL-N

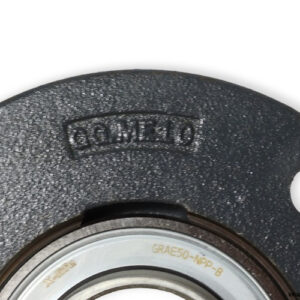

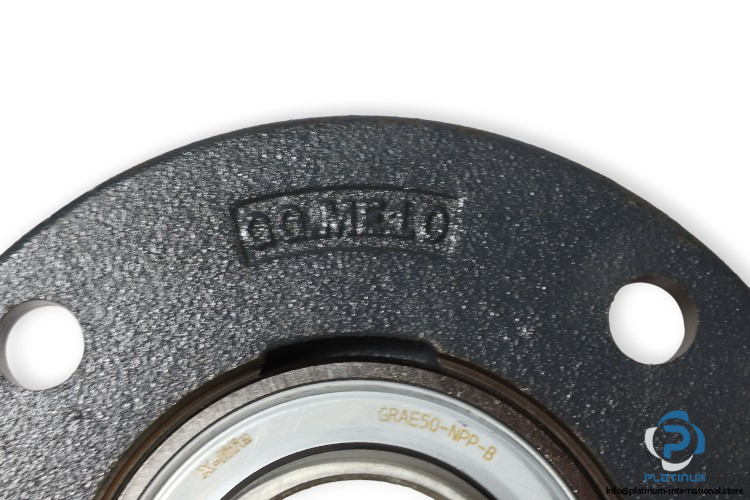

Housing: GG. ME10

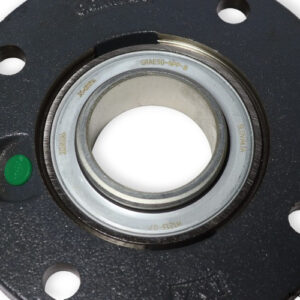

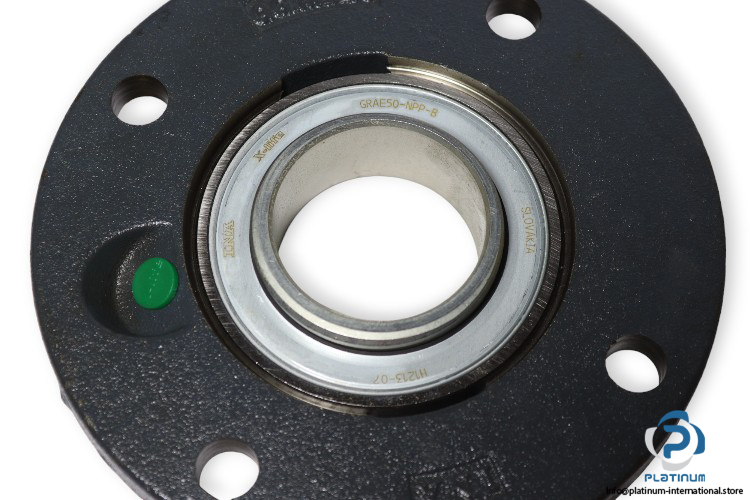

Bearing designation: GRAE50-NPP-B

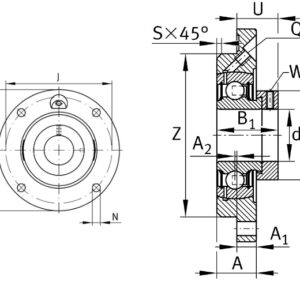

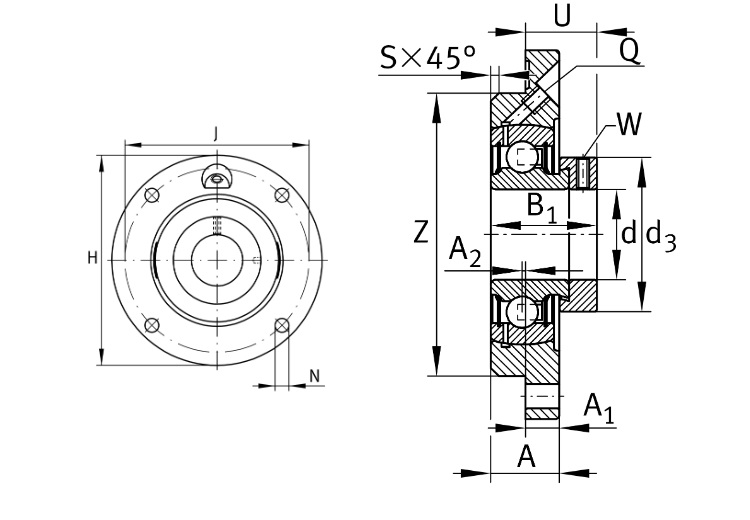

Bore Diameter d: 50 mm
Height flange H: 165 mm
Locking collar total width B1: 43.8
Total height unit U: 31.8 mm
Distance fixing bore J: 135 mm
Fixing bore N: 14 mm
Basic dynamic load rating: 35000 N
Basic static load rating: 23200 N
Fatigue load limit: 1090 N
Temperature range: -20 °C…120°C
Groove: N, Cast iron housing with undercut slot for end caps
Material: GG, Grey cast iron

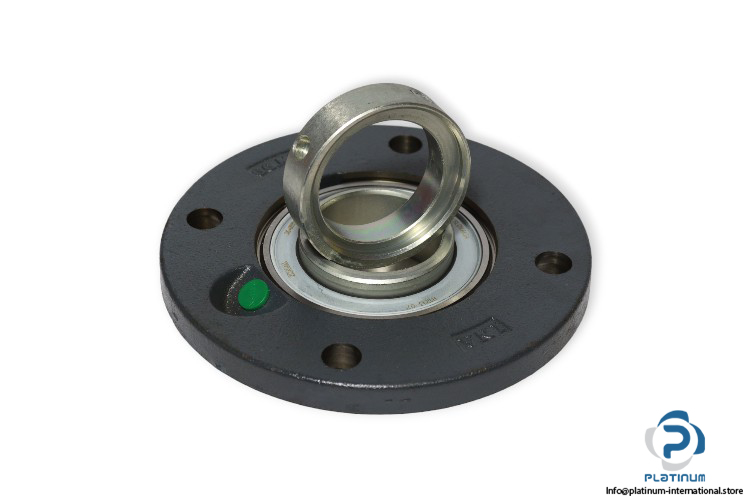

Locking Device: eccentric locking collar
