Manufacturer: NTN
Type: Pillow Block Ball Bearing Unit

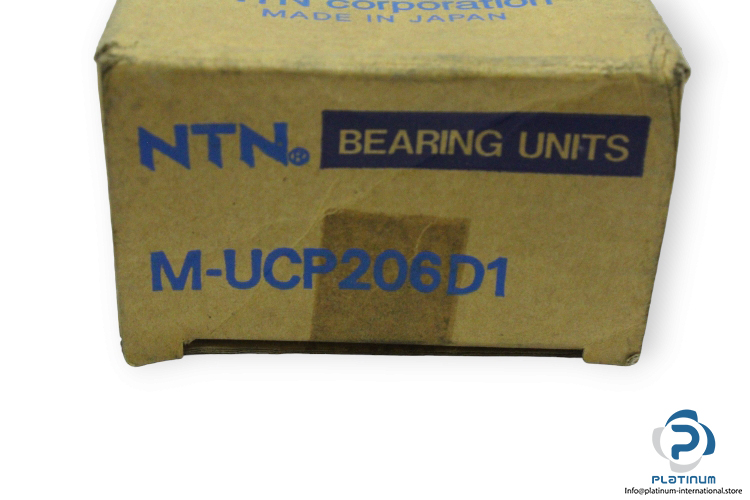

Model: M-UCP206D1
Bearing Number: UC206D1
Housing Number: P206D1

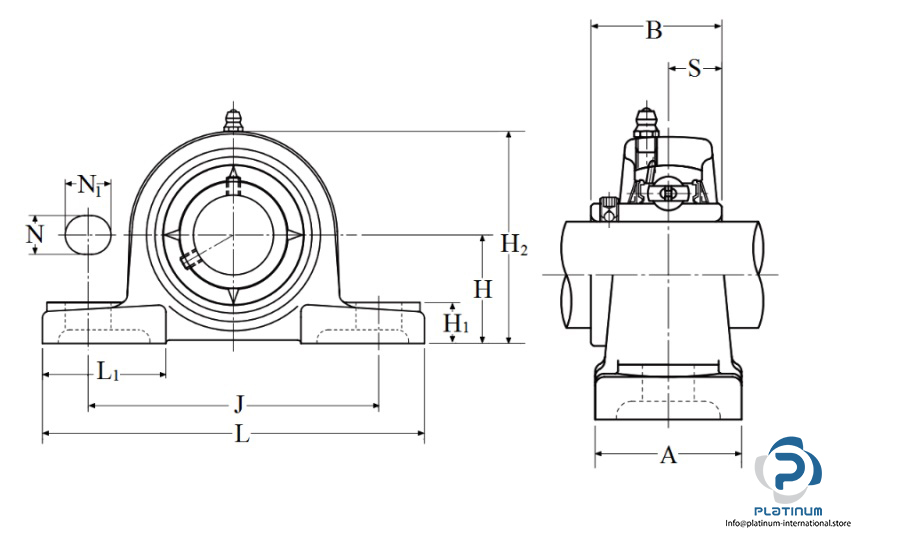

Dimensions
Bore Diameter d: 30 mm
Overall length L: 165 mm
Overall height H2: 83 mm
Width of Inner Ring B: 38.1 mm
Height of spherical seat center H: 42.9 mm
Distance Between Attachment Bolts J: 121 mm
Diameter of attachment bolt hole N: 17 mm
Length of attachment bolt hole N1: 20 mm
Foot height H1: 17 mm
Basic Load Rating:
Dynamic Cr: 19500 N
Static C0r: 11300 N
Rotational Speed [Max]: 4900 rpm
Bore type: Cylindrical bore
Locking Device: Set Screw
