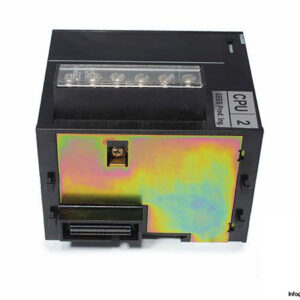

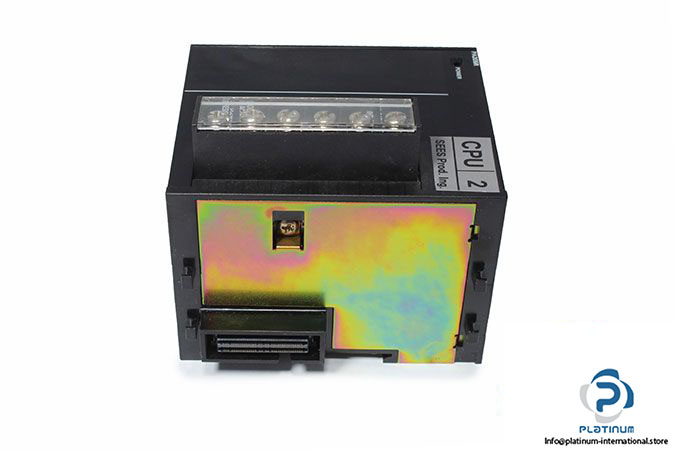

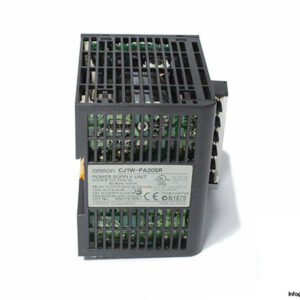

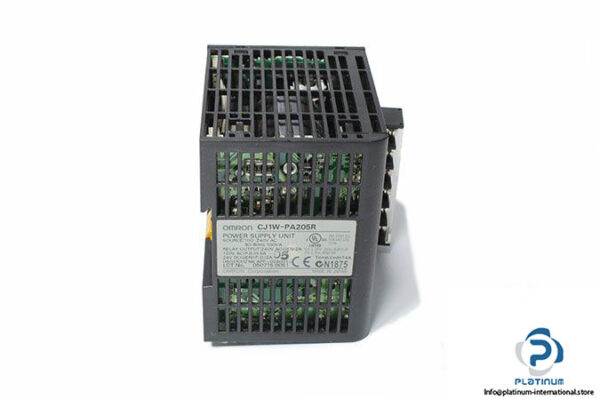

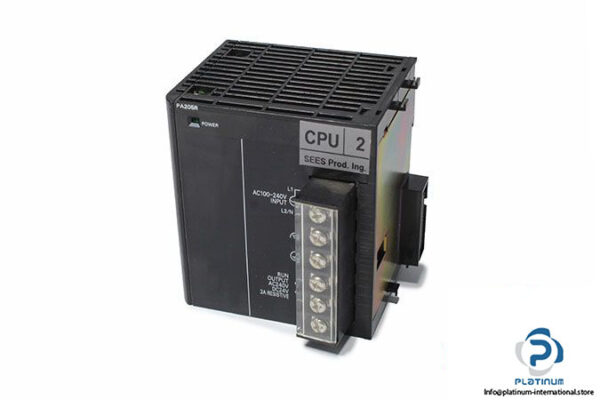

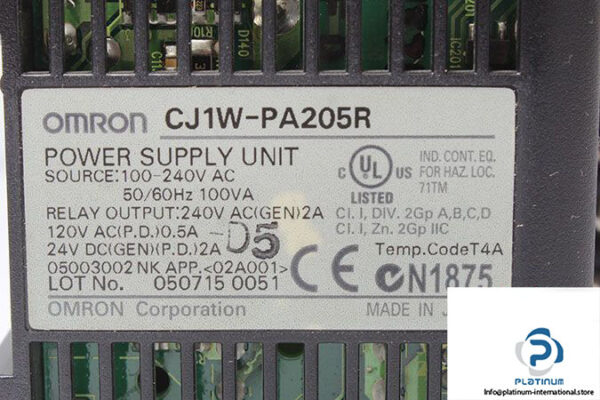

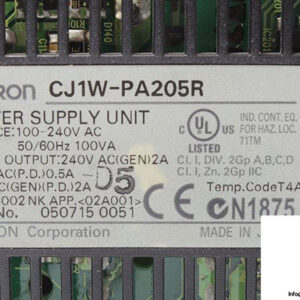

Manufacturer: OMRON

Type: Power Supply Unit

Model: CJ1W-PA205R



Supply Voltage: 100 … 240 VAC (wide-range), 50/60 Hz

Operating Voltage: 85 … 264 VAC, 47 … 63 Hz

Power Consumption: 100 VA max.

Output Capacity:

• 0 A, 5 VDC (including supply to CPU Unit)
• 8 A, 24 VDC
• Total: 25 W max.

Inrush Current:

• At 100 to 120 V AC: 15 A/8 ms max. for cold start at room temperature
• At 200 to 240 V AC: 30 A/8 ms max. for cold start at room temperature

Ambient Temperature: 0 … 55 °C

Enclosure: Mounted in a panel

Dimensions: 89 X 80 X 90 mm

Weight: 0.34 Kg
