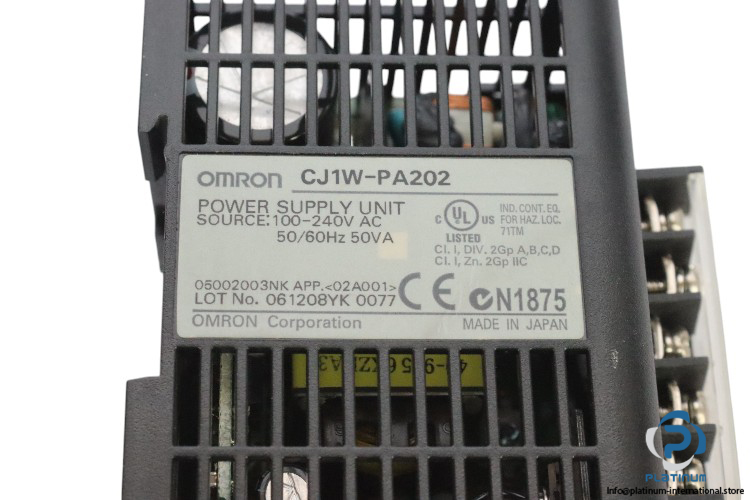

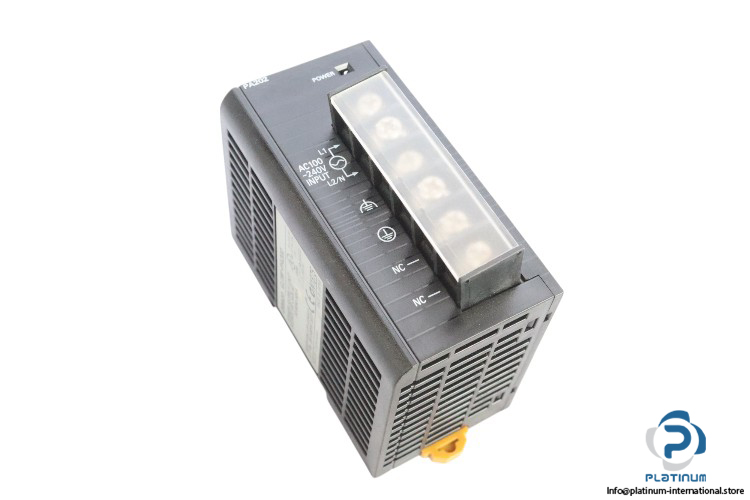

Omron CJ1W-PA202 Power Supply Unit
The Omron CJ1W-PA202 Power Supply Unit provides 100-240V AC input with 2.8A at 5V DC and 0.4A at 24V DC outputs, delivering reliable power for industrial automation systems.
Omron CJ1W-PA202 Power Supply Unit
The Omron CJ1W-PA202 Power Supply Unit is designed to provide stable and efficient power distribution for industrial automation systems. With a wide voltage input range and two output capacities, it ensures optimal performance and reliable power supply for various applications.
- Manufacturer: Omron
- Type: Power Supply Unit
- Model: CJ1W-PA202
- Part No.: N1875
Technical Specifications:
- Rated Voltage: 100 / 240V AC
- Frequency: 50/60 Hz
- Output Capacity: 2.8 A at 5 V DC, 0.4 A at 24 V DC
- Total Power Consumption: 14 W
- Insulation Resistance: 20 MΩ min
- Ambient Temperature: 0 to 55°C
- Dimensions: 90 x 45 x 81.6 mm
The Omron CJ1W-PA202 Power Supply Unit provides efficient power for industrial control systems, offering a 100-240V AC input range with dual output capabilities (5V DC and 24V DC). Its robust design and energy-efficient operation make it an ideal choice for powering various devices in automation systems.
