Omron CJ1M-CPU12(4)-2 CPU Unit

Omron CJ1M-CPU12(4)-2 CPU Unit

The Omron CJ1M-CPU12(4)-2 CPU Unit is a highly reliable and powerful control unit designed for advanced industrial automation systems. This CPU unit supports a maximum of 320 I/O points and up to 10 units, making it ideal for medium to large-scale operations. The unit offers a data area memory capacity of 32 K words, enabling efficient processing of complex data. With a fast LD execution time of 0.1 μs, this model ensures quick data processing for demanding applications.

Designed with a constant cycle time range of 1 to 32 ms, the CPU unit ensures consistent and reliable performance in various automation tasks. The CJ1M-CPU12(4)-2 uses a stored program control method and provides a program capacity of up to 10 K steps, supporting approximately 400 ladder instructions. The unit is mounted via DIN track (screw mounting is not possible), ensuring a secure and stable installation in control panels and equipment. Its compact dimensions of 31 x 73 x 95 mm make it an efficient and space-saving solution for any automation setup.

• Manufacturer: Omron
• Type: CPU Unit
• Model: CJ1M-CPU12(4)-2

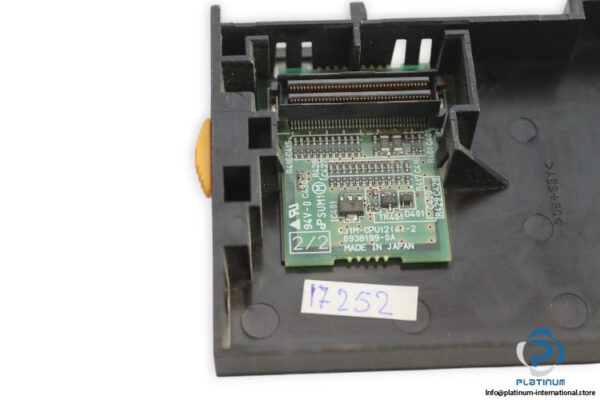

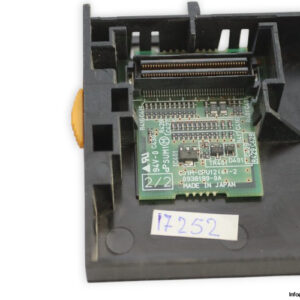

• Part No.: 0938199-0A

Technical Specifications:

• Maximum Number of I/O Points: 320 I/O points, 10 Units max.
• Data Area Memory Capacity: 32 K words
• LD Execution Time: 0.1 μs
• Control Method: Stored program
• Constant Cycle Time: 1 to 32 ms
• Mounting Method: DIN Track (screw mounting not possible)
• Ladder Instructions: Approx. 400 (3-digit function codes)
• Program Capacity: 10 K steps
• Dimensions: 31 x 73 x 95 mm

The Omron CJ1M-CPU12(4)-2 CPU Unit is the perfect solution for industrial applications that require high-speed processing, large I/O capacity, and reliable performance in a compact design.
