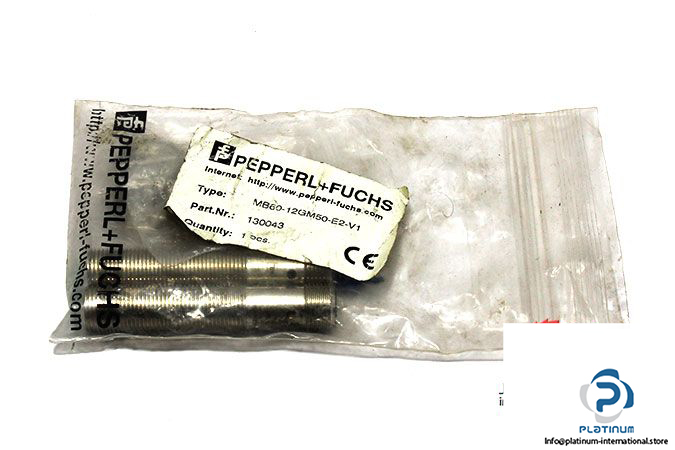

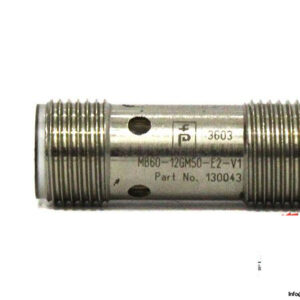

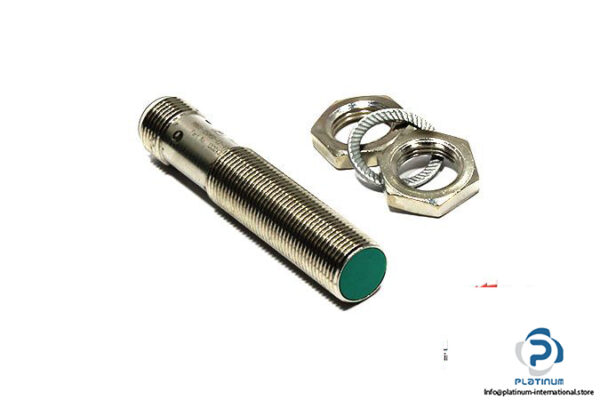

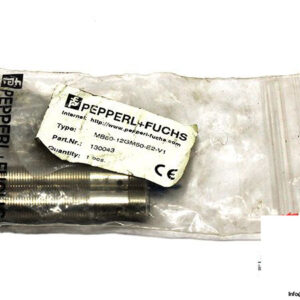

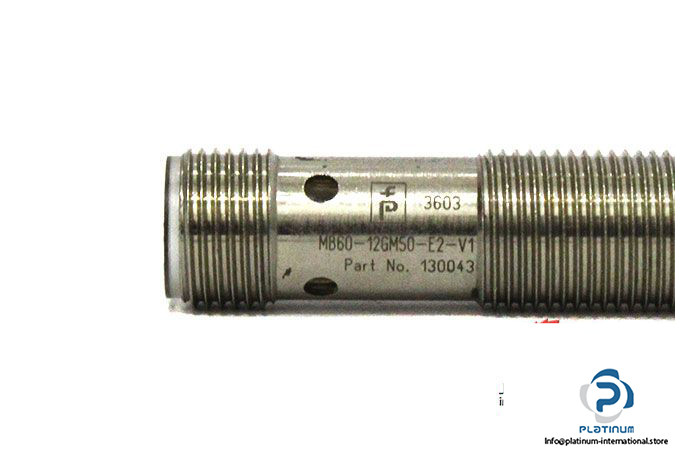

Manufacturer: Pepperl + Fuchs

Type: Magnetic Field Sensor

Model: MB60-12GM50-E2-V1

Part No: 130043

Rated Operating Distance: 60 mm

Assured Operating Distance: 10 … 48.6 mm

Operating Voltage: 10 … 30 V DC

Switching Current: ≤ 200 mA

No-Load Supply Current I₀: ≤ 10 mA

Voltage Drop U_d: ≤ 2.5 V

Signal Output: PNP

Switching Function: NO

Switching Frequency f: 0 … 5000 Hz

Installation: Flush In Non-Magnetic Metal

Protection Class: II

Protection Degree: IP67

Ambient Temperature: -25 … 75 °C

Material: Housing: Stainless Steel 1.4404 / AISI 316L, Sensing Face: PBT

Connection: Connector M12 x 1 , 4-pin

Diameter, Length: 12, 60 mm

Weight: 0.02 kg
