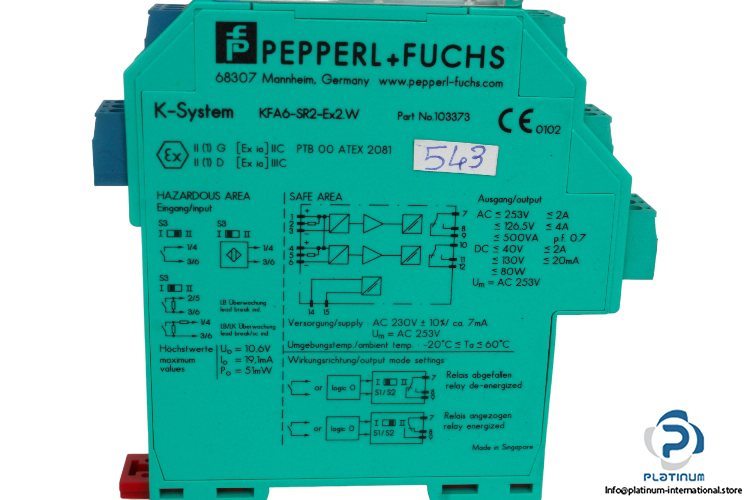

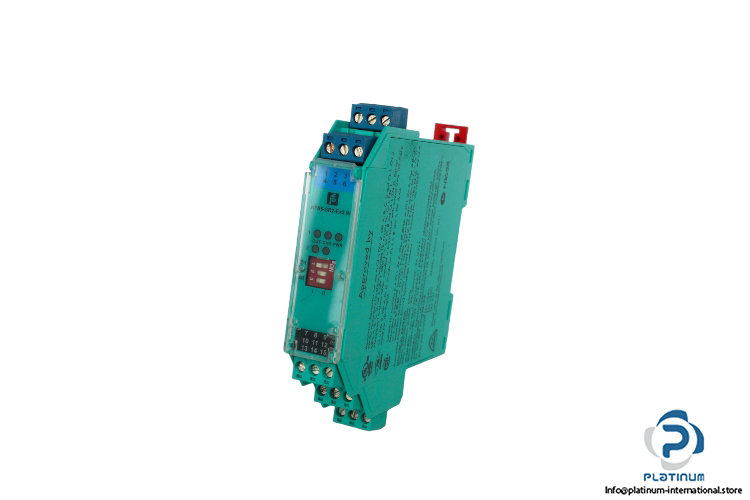

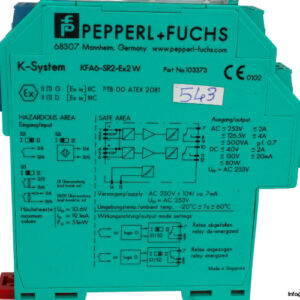

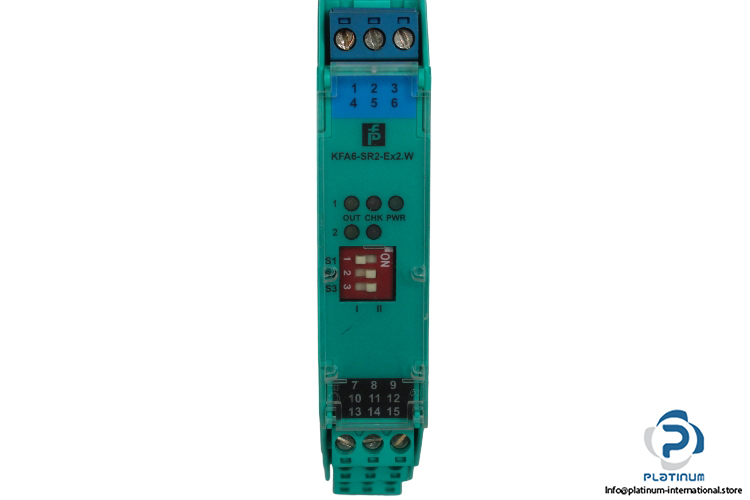

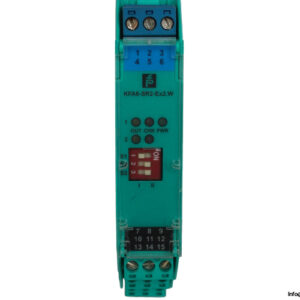

Pepperl+Fuchs KFA6-SR2-EX2.W Switch Amplifier

The Pepperl+Fuchs KFA6-SR2-EX2.W is a high-quality switch amplifier designed for reliable signal isolation and control in hazardous and industrial automation environments. It provides safe operation, compact design, and efficient power consumption, ensuring dependable performance in various control systems.

Manufacturer: Pepperl+Fuchs
Type: Switch Amplifier
Model: KFA6-SR2-EX2.W
Part No.: 103373

Technical Information

Supply Voltage: 230 V AC (207 / 253 V AC) ±10%
Current: 7 mA
Power Consumption Max.: 1.3 W
Display: LED
Output Signal: Relay
Contact: 253 V AC / 2 A, 126.5 V AC / 4 A (500 VA), 40 V DC / 2 A, 130 V DC / 20 mA (80 W)

Data for Application in Hazardous Areas

Voltage: 10.6 V
Current: 19.1 mA
Power: 51 mW
Maximum Safe Voltage: 253 V AC

Environmental and Mechanical Data

Ambient Temperature: -20 / 60 °C
Degree of Protection: IP20
Mounting: 35 mm DIN Mounting Rail
Connection: Screw Terminals
Dimensions: 20 x 119 x 115 mm
