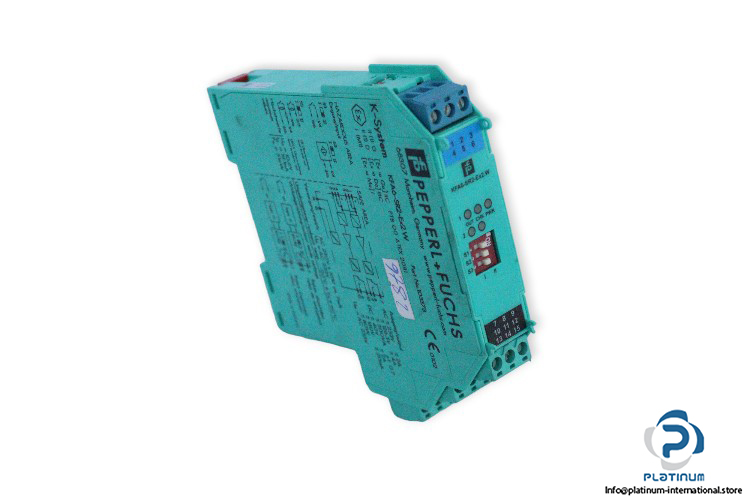

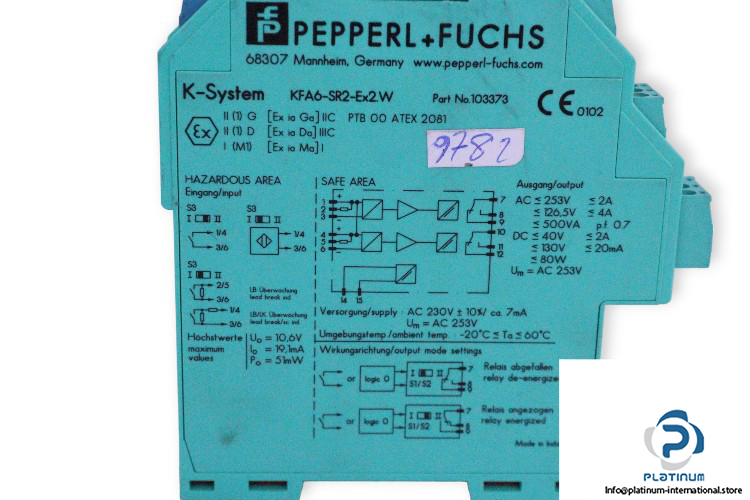

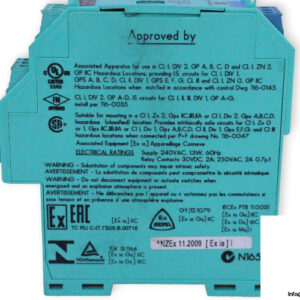

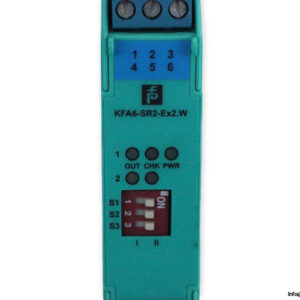

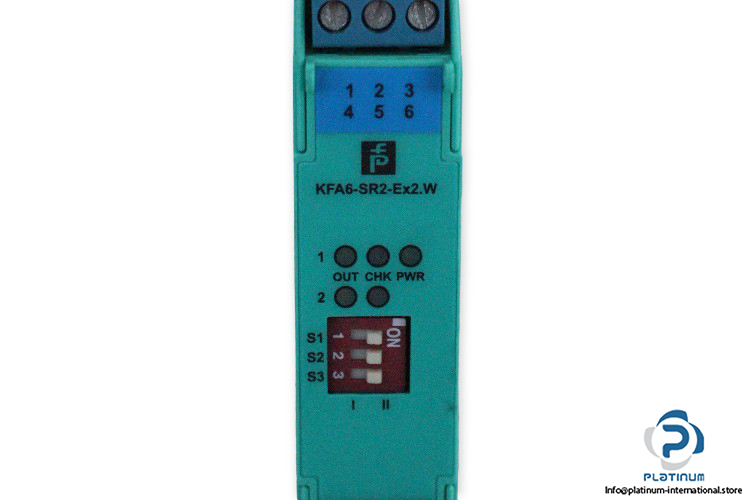

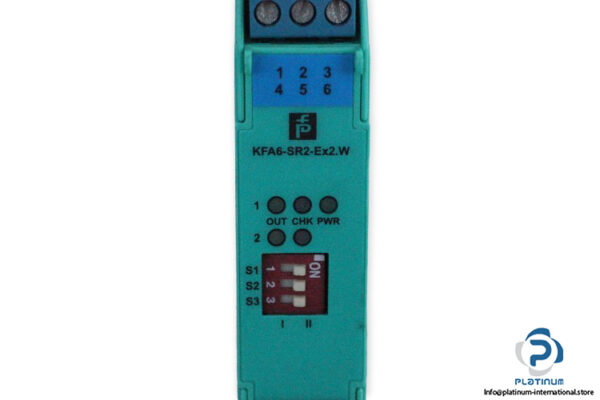

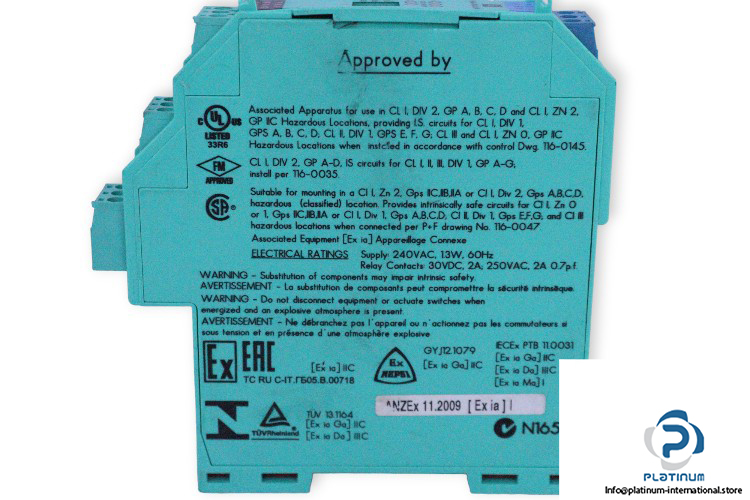

Pepperl+Fuchs KFA6-SR2-EX2.W Switch Amplifier

The Pepperl+Fuchs KFA6-SR2-EX2.W is a high-quality switch amplifier designed for safe signal transmission between hazardous and non-hazardous areas. This reliable and compact module offers excellent performance in industrial automation and process control environments where intrinsic safety and precision are critical.

Manufacturer: Pepperl+Fuchs
Type: Switch Amplifier
Model: KFA6-SR2-EX2.W
Part No.: 103373

Technical Information

Supply Voltage: 230 V AC (207 / 253 V AC) ±10%
Current: 7 mA
Power Consumption Max.: 1.3 W
Display: LED
Output Signal: Relay
Contact: 253 V AC/2 A, 126.5 V AC/4 A (500 VA), 40 V DC/2 A, 130 V DC/20 mA (80 W)

Data for Application in Hazardous Areas

Voltage: 10.6 V
Current: 19.1 mA
Power: 51 mW
Maximum Safe Voltage: 253 V AC

Environmental and Mechanical Data

Ambient Temperature: -20 / 60 °C
Degree of Protection: IP20
Mounting: 35 mm DIN Mounting Rail
Connection: Screw Terminals
Dimensions: 20 x 119 x 115 mm
