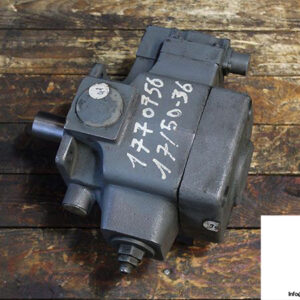

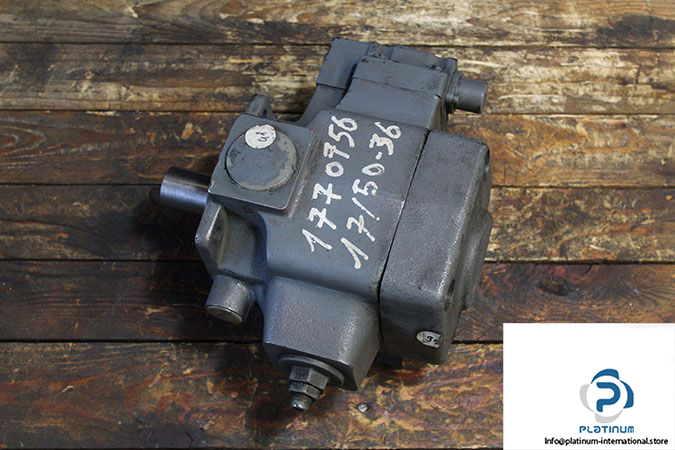

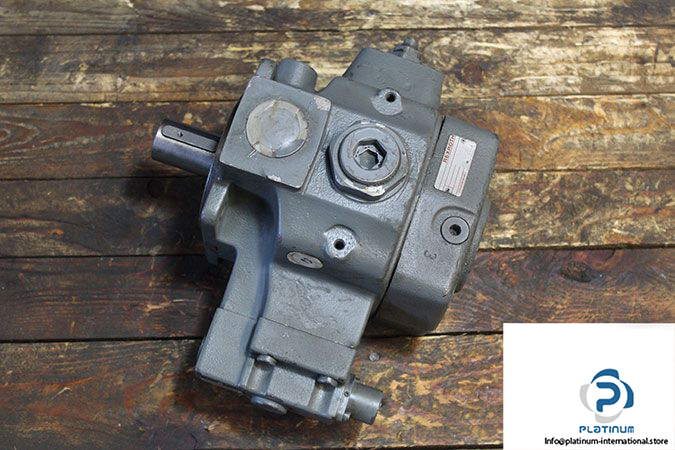

REXROTH HYDRONORMA 1PV2V42150RA01MC016A1 VARIABLE VANE SINGLE PUMP

The Rexroth Hydronorma 1PV2 V4-21/50 RA01MC0-16A1 is a high-performance variable vane single pump designed for efficient and reliable operation in demanding hydraulic systems. Built with precision engineering, it ensures consistent flow, optimal power output, and smooth performance under varying operating conditions.

Manufacturer: Rexroth Hydronorma
Type: Variable Vane Single Pump

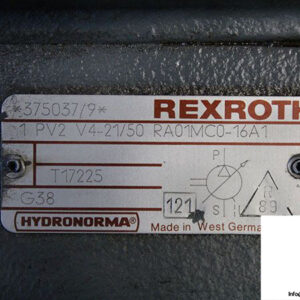

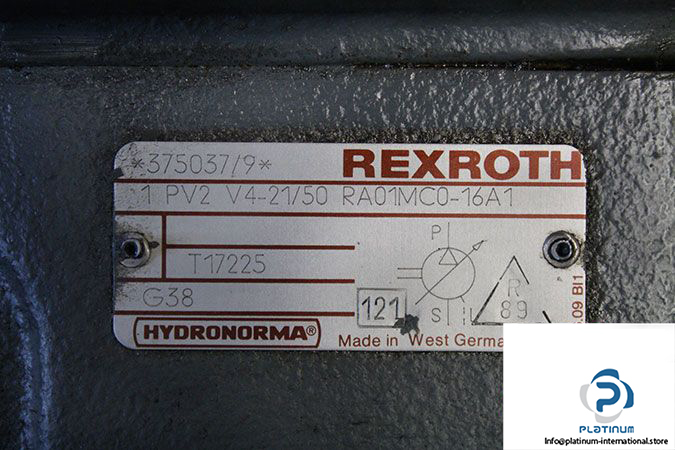

Model: 1PV2 V4-21/50 RA01MC0-16A1
Part No.: 375037/9

Technical Information

• Fluid: Oil
• Size: NG50
• Displacement: 55.2 cm³
• Direction of Rotation: Clockwise

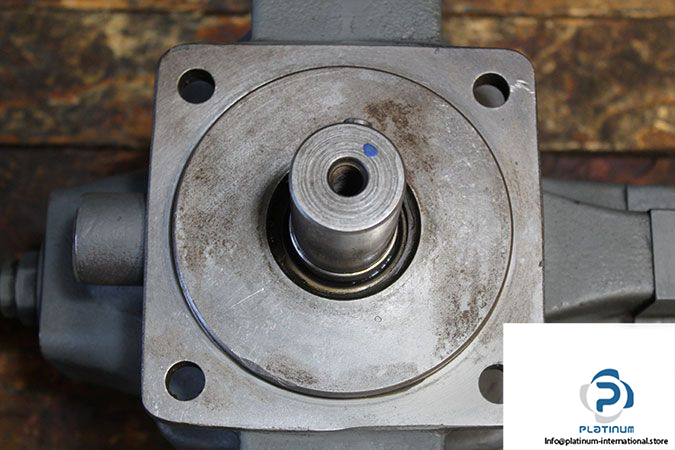

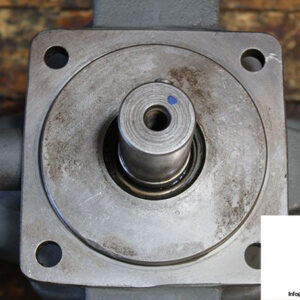

• Shaft Diameter: 38 mm
• Operating Pressure: 160 bar
• Speed Range: 900 “ 1800 rpm
• Flow Rate at 1450 rpm: 72.5 l/min
• Power at 1450 rpm: 23 kW
• Torque at 100 bar: 510 Nm
• Viscosity Range: 16 “ 160 mm²/s
