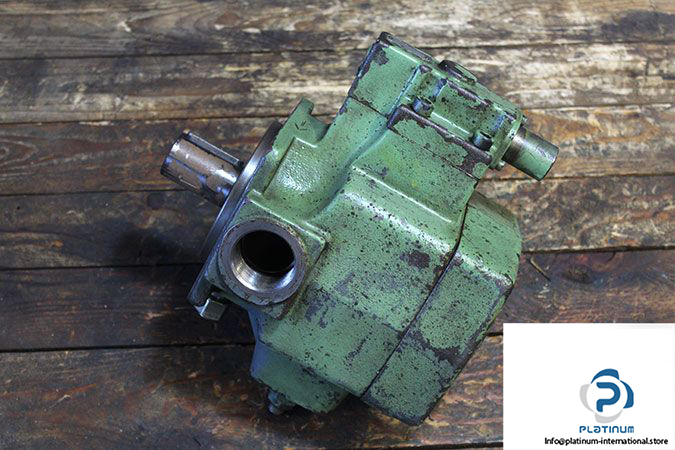

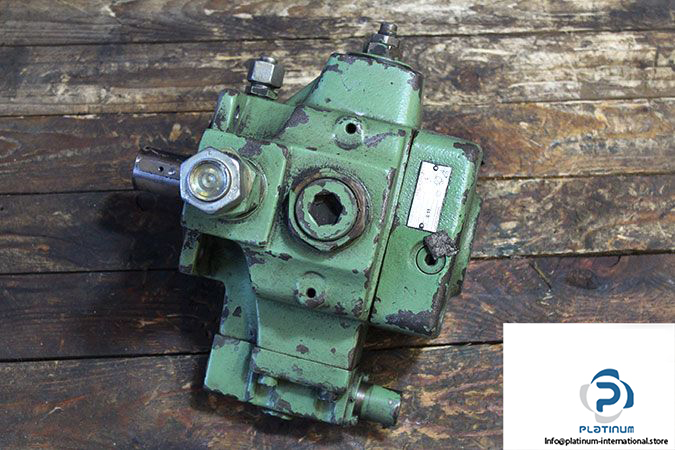

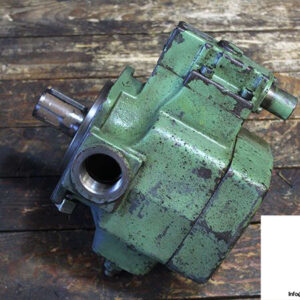

Rexroth 1PV2V4-18/50RA01MC160A1 Variable Vane Single Pump

Manufacturer: Rexroth

Type: Variable vane single pump

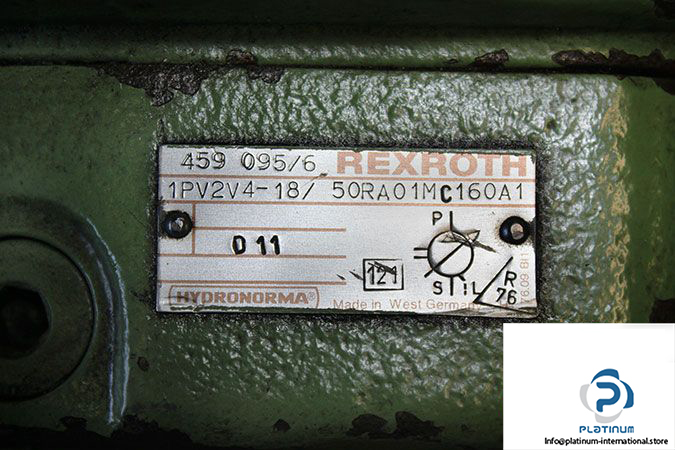

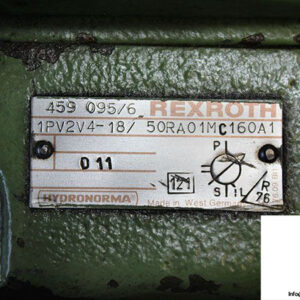

Model: 1PV2V4-18/50RA01MC160A1

size: 50

Displacement: 55.2 cm³

Direction of Rotation: Clockwise

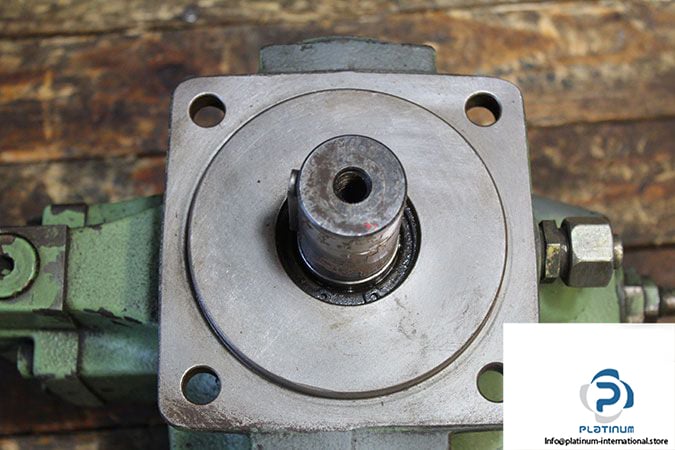

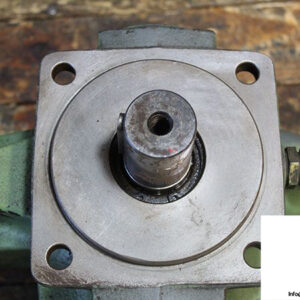

Shaft Diameter: 38 mm

Operating pressure: 160 bar

Speed: 900 …. 1800 rpm

Flow Rate at 1450 rpm: 72.5 l/m

Power at 1450 rpm: 23 KW

Torque at 100 bar: 510 N.m

Viscosity Range: 16 ….  160 mm²/s

Weight: 43.3 Kg

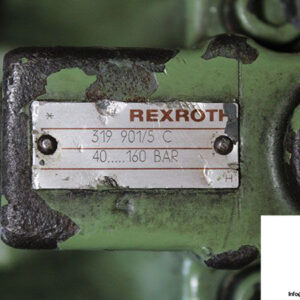

Attachment: REXROTH 319 901/5 C SAFETY VALVE

Manufacturer: Rexroth

Type: Safety Valve

Settings Pressure: 40…160 bar

Model: 319 901/5 C
