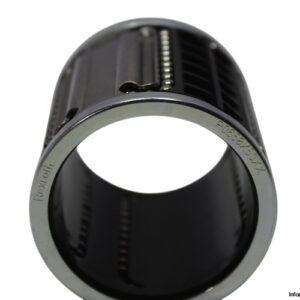

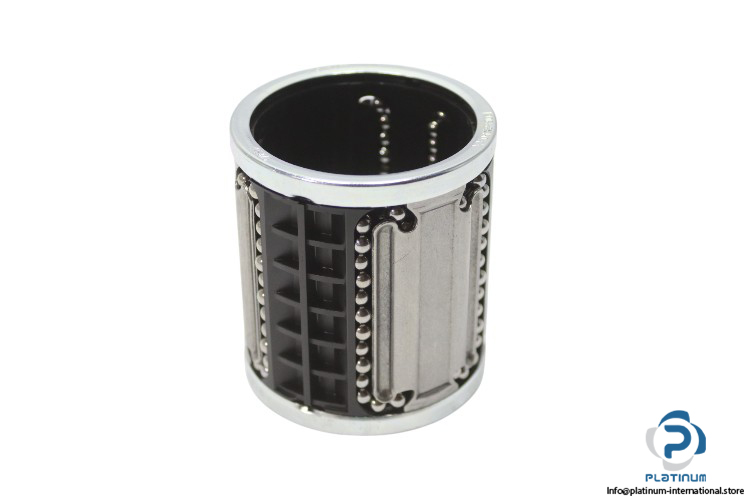

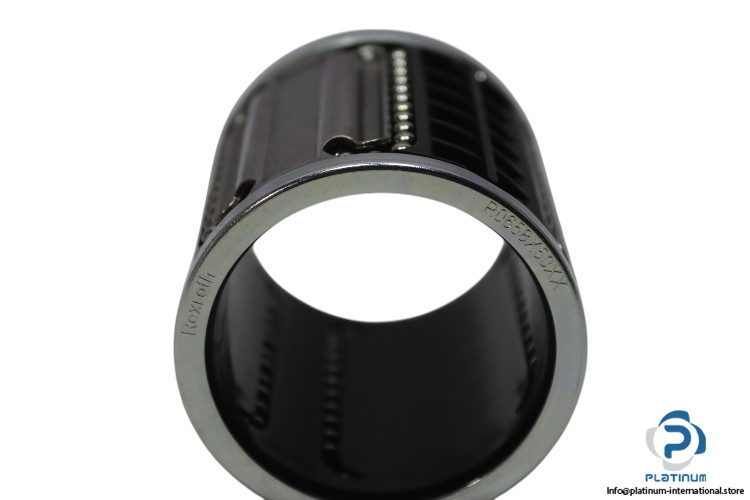

Rexroth Compact Linear Bushing R065805000

The Rexroth Compact Linear Bushing R065805000 is engineered for precision movement and high load-bearing capacity. With a shaft diameter of 50 mm and dynamic load ratings of up to 7180 N, it is designed for demanding linear motion applications.

Manufacturer: Rexroth

Type: Compact Linear Bushing

Model Number (MNR): R065805000

Technical Information:

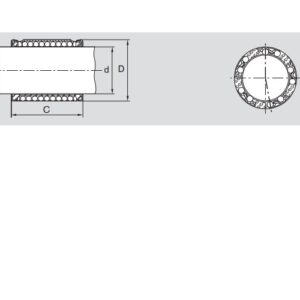

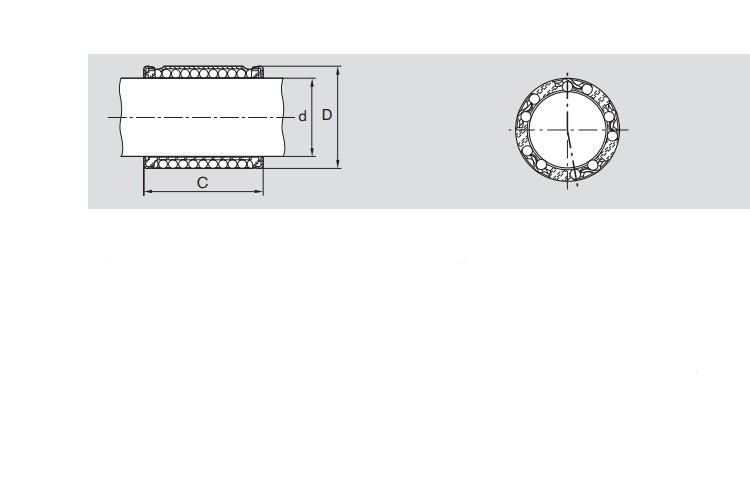

• Shaft Diameter (d0): 50 mm
• Outer Diameter: 62 mm
• Length of Linear Bushing: 70 mm
• Rows of Balls: 6
• Maximum Acceleration Travel (amax): 150 m/s²
• Max. Permissible Speed (vmax): 5 m/s
• Dynamic Load Rating (Cmin): 5680 N
• Dynamic Load Rating (Cmax): 7180 N
• Static Load Rating (C0min): 3610 N
• Static Load Rating (C0max): 5350 N
• Permissible Ambient Temperature: -10 to +80 °C
