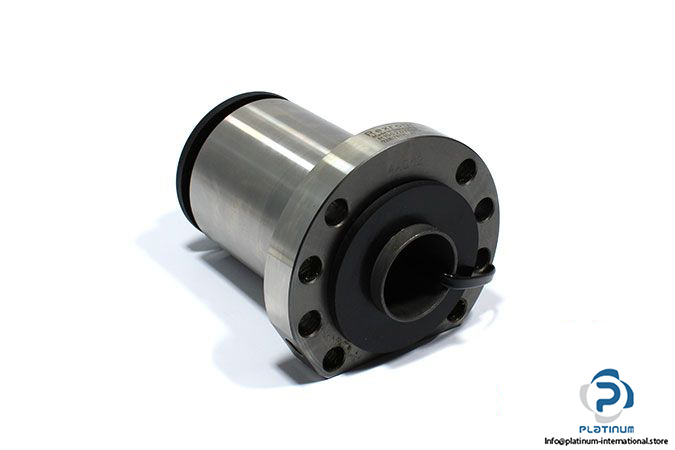

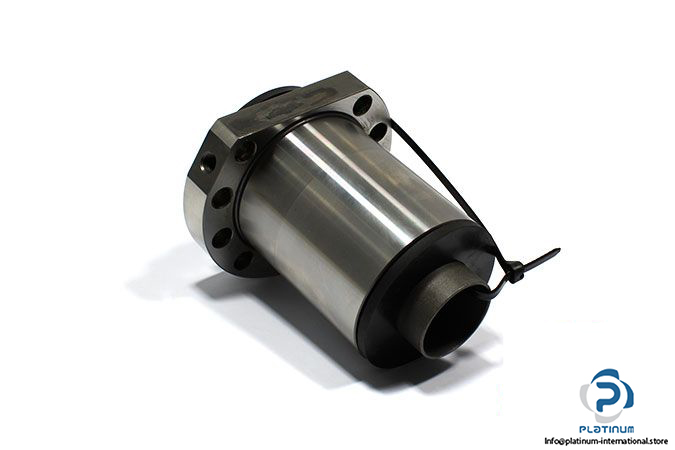

Bosch Rexroth R150247085 Single Nut with Flange FEM-E-C

The Bosch Rexroth FEM-E-C R150247085 is a precision single nut with flange designed for high-load linear motion systems. Built to deliver smooth performance, high load capacity, and durability, it™s ideal for demanding automation and mechanical applications requiring accurate positioning and long service life.

Manufacturer: Bosch Rexroth
Type: Single Nut with Flange FEM-E-C

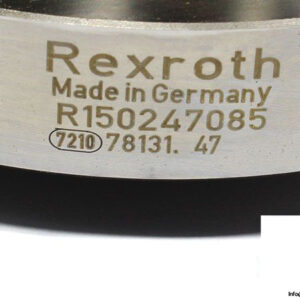

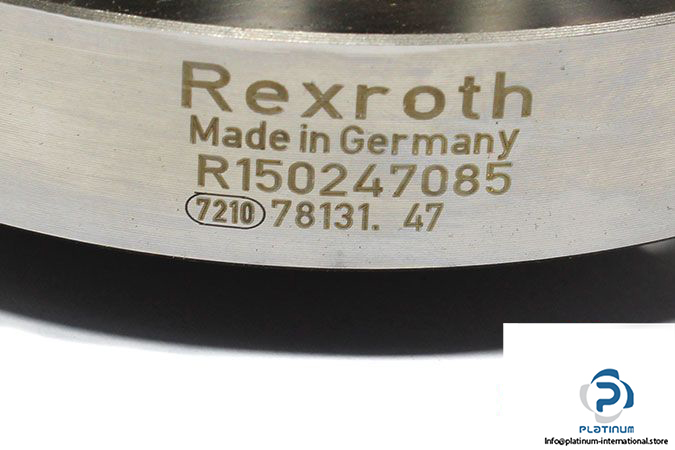

MNR: R150247085
Size: 40 X 20R X 6 “ 3

Technical information

• Nominal Diameter (d0): 40 mm
• Ball Diameter (DW): 6 mm
• Number of Ball Track Turns (i): 3
• Lead (P): 20 mm
• Direction of Lead: Right-Hand Thread
• Dynamic Load Capacity (C): 45,500 N
• Static Load Capacity (C0): 62,800 N
• Linear Speed (vmax): 75 m/min

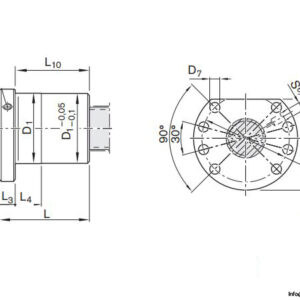

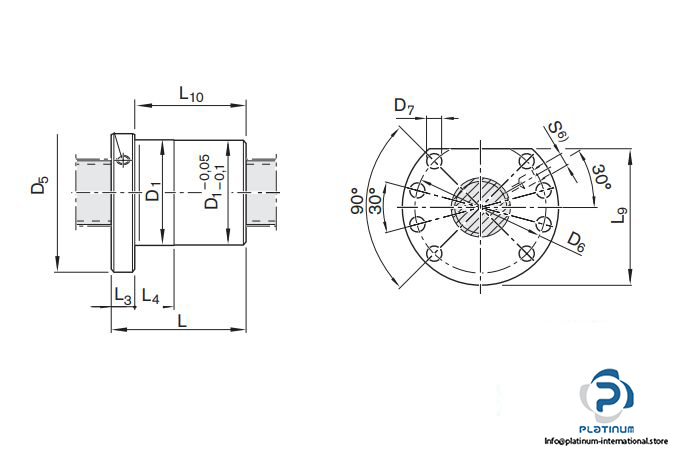

• Dimensions:
• D1: 63 mm
• D5: 93 mm
• L: 88 mm
