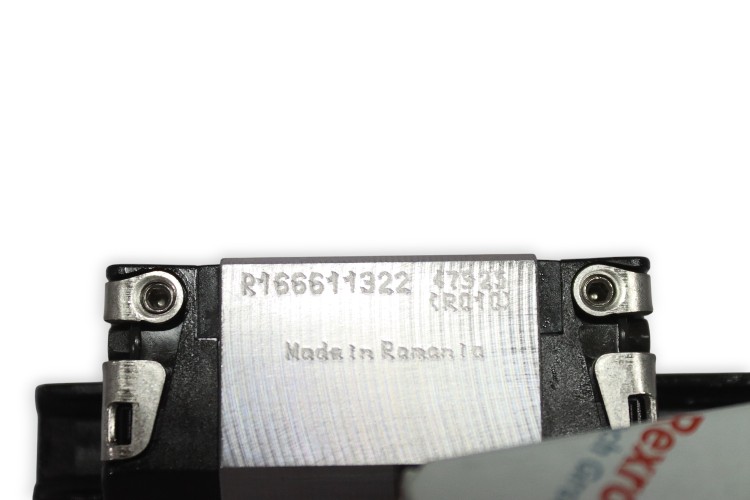

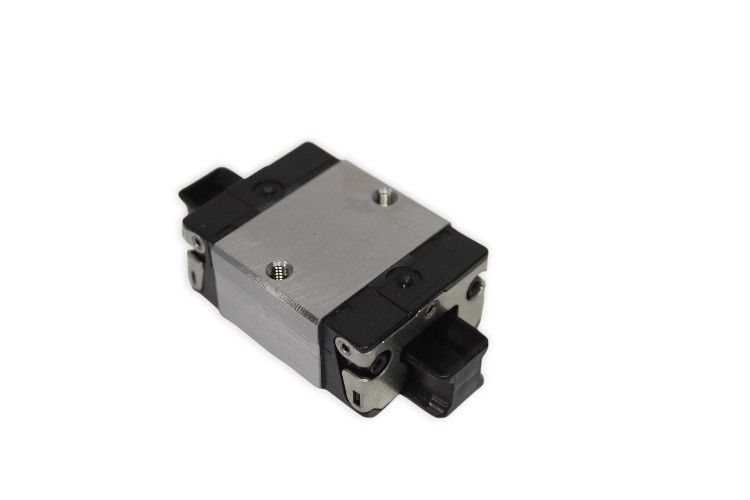

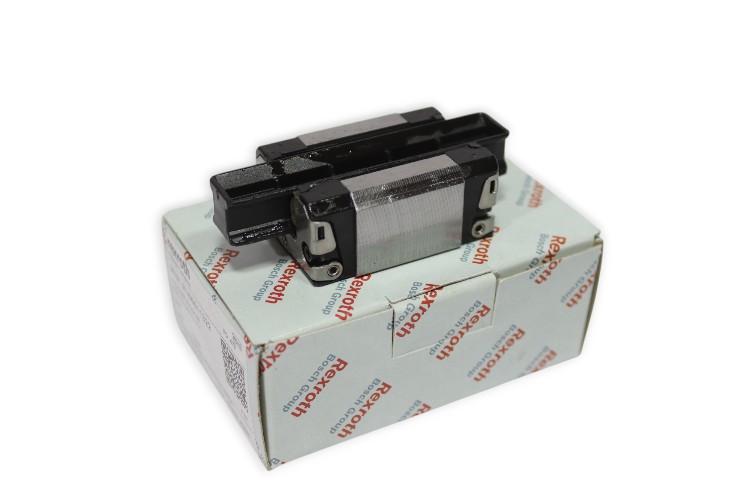

REXROTH R166611322 KWD-015-SKS-C1-H-1 BALL RUNNER BLOCK CARBON STEEL
The Rexroth R166611322 KWD-015-SKS-C1-H-1 Ball Runner Block is a precision linear motion component made of durable carbon steel. With slimline, short, standard design (SKS format), preload class C1, and high accuracy class H, it delivers reliable guidance and excellent load capacity for demanding applications.

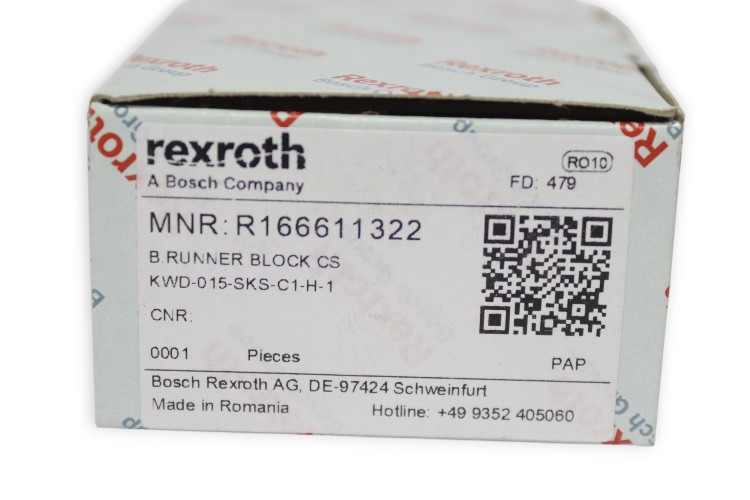

Manufacturer: Rexroth
Type: Ball Runner Block Carbon Steel
MNR: R166611322
Model: KWD-015-SKS-C1-H-1

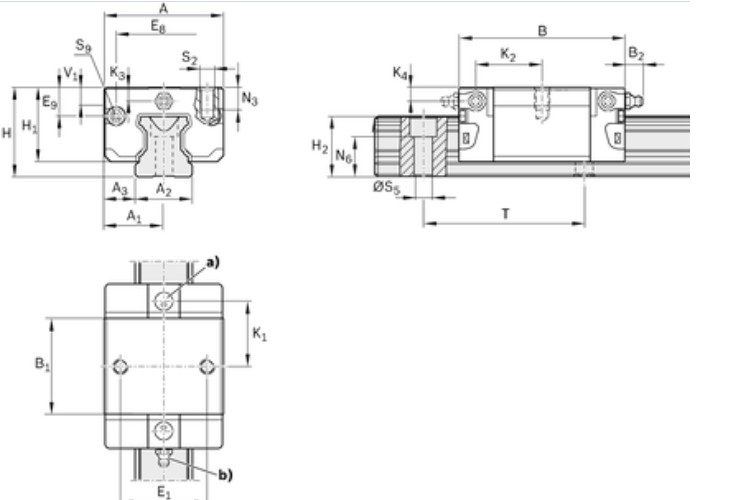

Technical Information
- Nominal Size: 15 mm
- Width of Runner Block: 34 mm
- Length of Runner Block: 44.7 mm
- Height of Runner Block: 19.9 mm
- Height Runner Block with Guide Rail: 24 mm
- E1: 26 mm
- Dynamic Load Capacity C50: 7600 N
- Dynamic Load Capacity C100: 6030 N
- Static Load Capacity C0: 6230 N
- Dynamic Torsional Moment Load Capacity Mt50: 73 Nm
- Dynamic Torsional Moment Load Capacity Mt100: 58 Nm
- Static Torsional Moment Load Capacity Mt0: 60 Nm
- Dynamic Longitudinal Moment Load Capacity ML50: 34 Nm
- Dynamic Longitudinal Moment Load Capacity ML100: 27 Nm
- Static Longitudinal Moment Load Capacity ML0: 28 Nm
- Pitch T Guide Rail: 60 mm
- Format SKS: Slimline, Short, Standard
- Preload Class: C1 (Low preload)
- Accuracy Class: H (High)
Note: We also provide the corresponding rails (guideways) in a wide range of lengths – please ask us if you need rails to match your bearing
